packed tower, also known as a packed bed or packed column, is a type of chemical processing equipment used in various industries for processes such as absorption, distillation, stripping, and gas-liquid contact. Packed towers are commonly used in chemical engineering, petrochemical, environmental, and pharmaceutical applications. They play a crucial role in separating or mixing different components within a fluid stream.

Here are some key features and functions of a packed tower:

  1. Column Structure: Packed towers are vertical cylindrical columns filled with a packing material. This packing material is typically made of materials like plastic, metal, or ceramics and is designed to provide a large surface area for contact between two phases, such as a gas and a liquid.

  2. Mass Transfer: Packed towers are used for mass transfer operations, such as absorption and distillation. In absorption, a gas or vapor is brought into contact with a liquid, allowing the transfer of one or more components from the gas phase into the liquid phase. In distillation, a mixture of components is separated into its individual constituents based on differences in volatility.

  3. Heat Transfer: In addition to mass transfer, packed towers can also be used for heat transfer operations, such as cooling or heating a fluid stream as it flows through the packed bed.

  4. Packing Material: The choice of packing material depends on the specific process requirements. Different materials offer varying levels of surface area, resistance to chemical corrosion, and thermal properties. Common packing materials include random packing (e.g., Raschig rings, Berl saddles) and structured packing.

  5. Efficiency: The efficiency of a packed tower depends on factors like the type of packing, column diameter, flow rates, and temperature. Engineers optimize these parameters to achieve the desired separation or mixing objectives with minimal energy consumption.

  6. Liquid Distribution: Proper liquid distribution at the top of the packed bed is essential to ensure uniform contact between the gas and liquid phases throughout the column.

  7. Gas and Liquid Flow: Controlling the flow rates of the gas and liquid is crucial to achieving the desired separation or reaction. Flow rates are adjusted based on the specific process requirements.

  8. Pressure Drop: Packed beds can generate a significant pressure drop as fluids flow through them. Engineers must consider this pressure drop when designing a packed tower to ensure efficient operation.

Packed towers offer advantages such as high mass transfer efficiency, compact size, and ease of retrofitting into existing systems. However, their design and operation require careful consideration of process conditions and objectives to achieve optimal performance.

wet scrubber system

What waste gases can packed towers be used to treat?

Packed towers can be used to treat various types of waste gases, especially those where the removal or reduction of specific pollutant concentrations is required. Its main applications include the following:

Gas Absorption: Packed towers are widely used in exhaust gas absorption operations. In this case, packed towers are used to absorb harmful gases or pollutants (such as hydrogen sulfide, ammonia, chlorine, etc.) in the exhaust gas into a liquid medium to reduce their concentration in the discharge. The liquid medium is usually a solution or adsorbent.

Desulfurization: Packed towers can be used in the desulfurization process, which mainly treats waste gas containing sulfur dioxide (SO2). In this case, an alkaline solution in liquid, such as lime slurry or ammonia, is used to chemically react with the SO2 in the exhaust gas, converting it to sulfate or bisulfate, thereby removing SO2 from the exhaust gas.

Gas purification: Packed towers can also be used in the gas purification process to remove other harmful gases such as nitrogen oxides (NOx), volatile organic compounds (VOCs), hydrofluoric acid (HF), etc. Different types of fillers and absorbents can be selected depending on the composition of the exhaust gas.

Gas Cooling: Packed towers can also be used to cool hot exhaust gas streams to reduce their temperature. In some industrial processes, the waste gas may contain high-temperature gases that need to be cooled before discharge to meet environmental regulations.

Removal of particulate matter in exhaust gas: In addition to gas absorption, packed towers can also be used to remove particulate matter (dust, granules, droplets, etc.) in exhaust gas, and it is usually necessary to add capture materials or filter media to the packing.

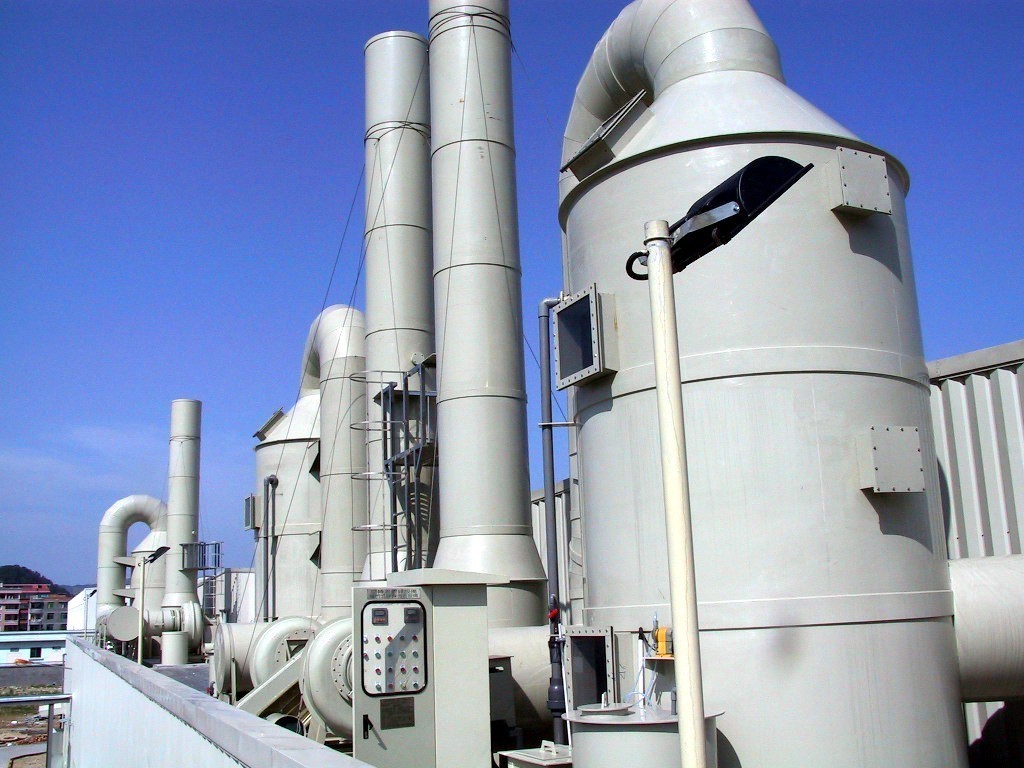

exhaust gas of garment factories

The application of packed towers depends on the composition, concentration and target emission requirements of the exhaust gas. Design engineers will select appropriate packing types, liquid media, flow rates and operating parameters based on specific exhaust gas characteristics to ensure efficient exhaust gas treatment and meet environmental standards. In addition, packed towers usually require regular maintenance and monitoring to ensure their stable performance and safe operation.
