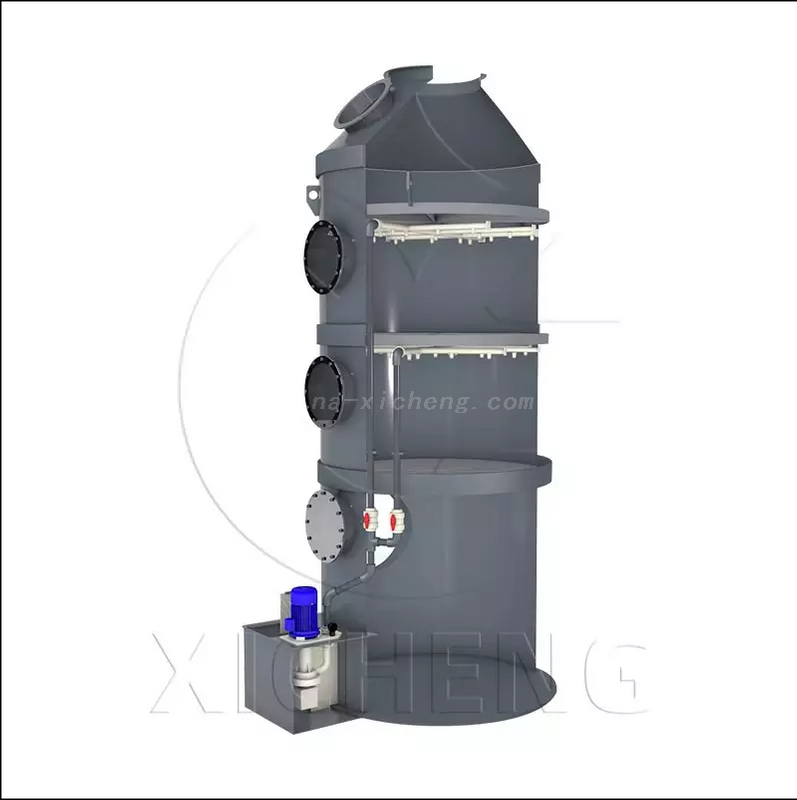

Spray Scrubber

The Spray scrubber is the simplest wet scrubber and can be custom designed, according to the exhaust gas type and exhaust gas air volume to customize the Spray scrubber equipment. Spray scrubbers capture dust particles, volatile organic compounds, chemical fumes and other water/chemical soluble fumes and vapors from industrial processes.
Material:
Size:
Availability:
Quantity:
  • XC-1
  • Xicheng

The Spray scrubber is the simplest wet scrubber and can be custom designed, according to the exhaust gas type and exhaust gas air volume to customize the Spray scrubber equipment. Spray scrubbers capture dust particles, volatile organic compounds, chemical fumes and other water/chemical soluble fumes and vapors from industrial processes. Compared with other exhaust gas treatment equipment, Spray scrubber has better treatment efficiency. Xicheng EP LTD is a leading manufacturer of exhaust gas scrubbers in China. It has a self-developed technical team that can customize exhaust gas treatment solutions, drawing design calculations, technical consultants and other services according to needs.

Working of Wet Spray Tower Scrubber

The dust laden exhaust air enters the bottom air intake of the Spray scrubber through the air intake. Here, the hydraulically atomized wash liquid droplets collide with the incoming gas and collide with the particles. Here, some water-soluble pollutants are absorbed by the spray droplets. The vigorous scrubbing here removes and stops untreated contamination from escaping. In the final section of the scrubber, the particulate matter is collected. As it enters the cyclone section, the remaining particles that escape are collected due to centrifugal action and most of the liquid droplets in the gas. Dust particles are collected in the sump. The cleaning gas is discharged through the top of the scrubber. When the type of exhaust gas is more complex, activated carbon adsorption equipment can be added after the Spray scrubber to improve the efficiency of exhaust gas purification.

Working of Wet Spray Tower Scrubber

Spray scrubber air/gas pollutants removed:

  • Particles down to 1 micron

  • acid gas

  • Organic waste gas (VOC)


Application:

  • Chemical industry

  • Pulp and Paper Industry

  • Petrochemical industry

  • Steelmaking

  • Corn processing facilities,

  • Food manufacturing,

  • Pharmaceutical industry

  • Fertilizer production and processing industry

  • Machining and grinding exhaust

  • Fiberglass and composites industry

  • Utility boilers

  • Foundries and metal finishing operations
