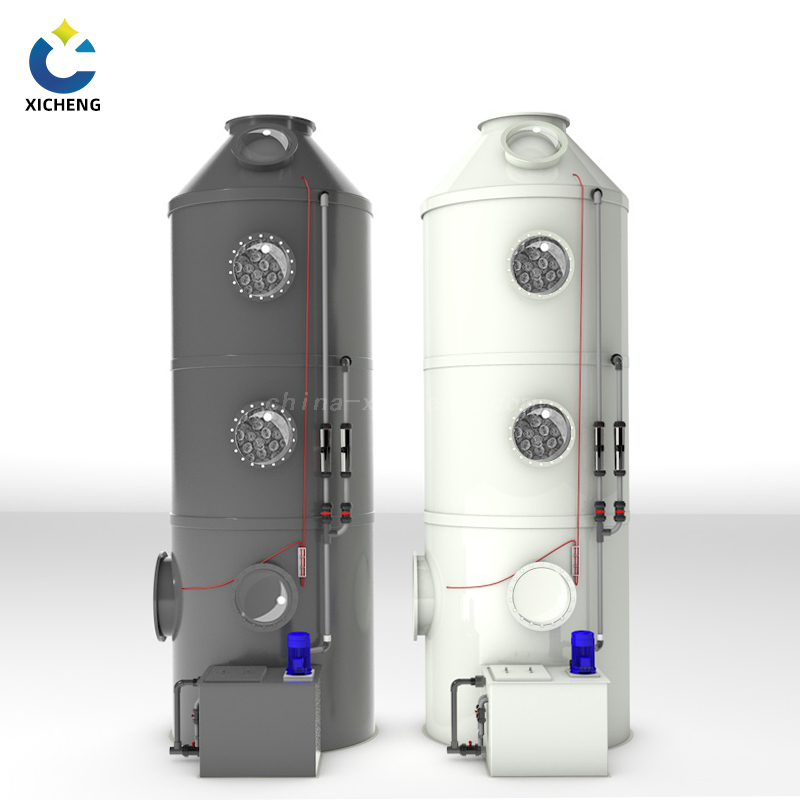

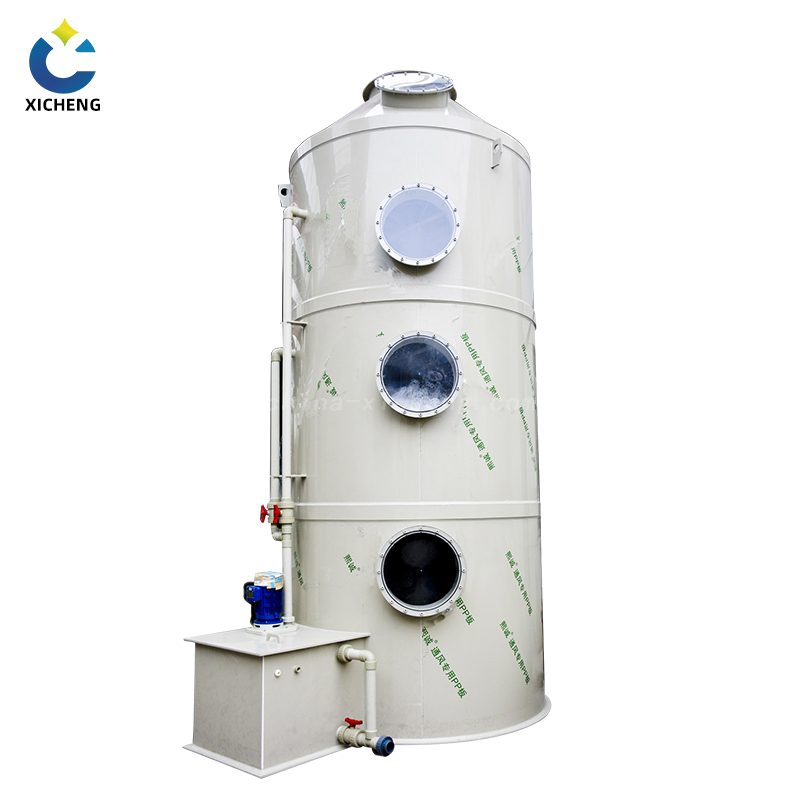

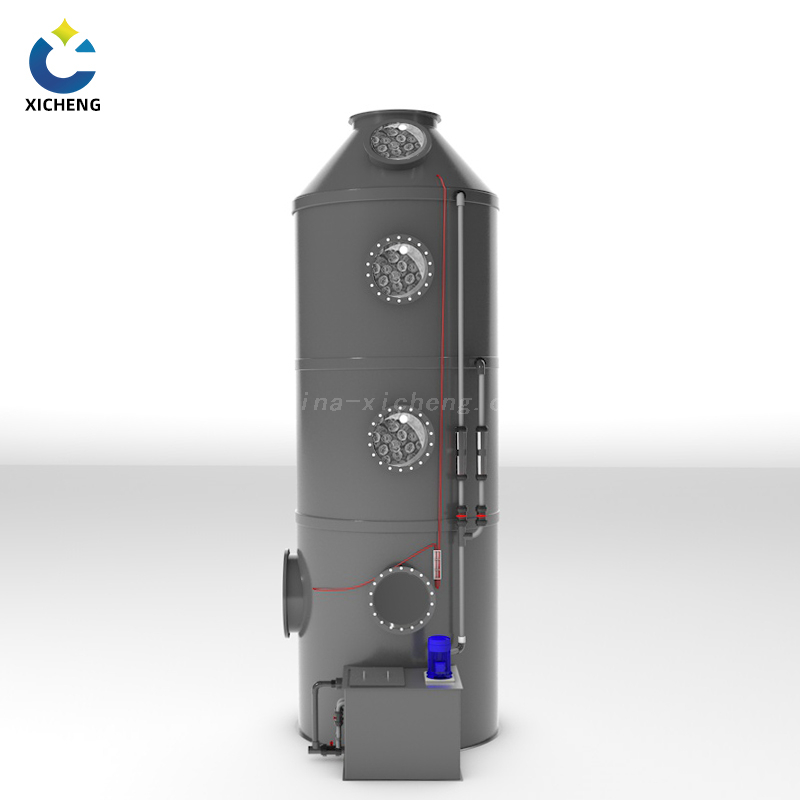

Packed bed scrubber

Packed bed scrubbers for industrial waste gas treatment use PP polyhedral balls as the main packing. The packed bed can improve the efficiency of waste gas treatment.
  • XC-01


  • 8421399092

Packed bed scrubbers are designed to remove gaseous or vaporous contaminants from gas streams. The process is done by exposing the polluted air stream to a scrubbing fluid that absorbs or chemically reacts with the pollutants. The cleaned air is then vented to the atmosphere, and the contaminated scrubbing fluid is either treated within approved limits or recovered and reused in other original processes.

There are two types of packed bed scrubbers:

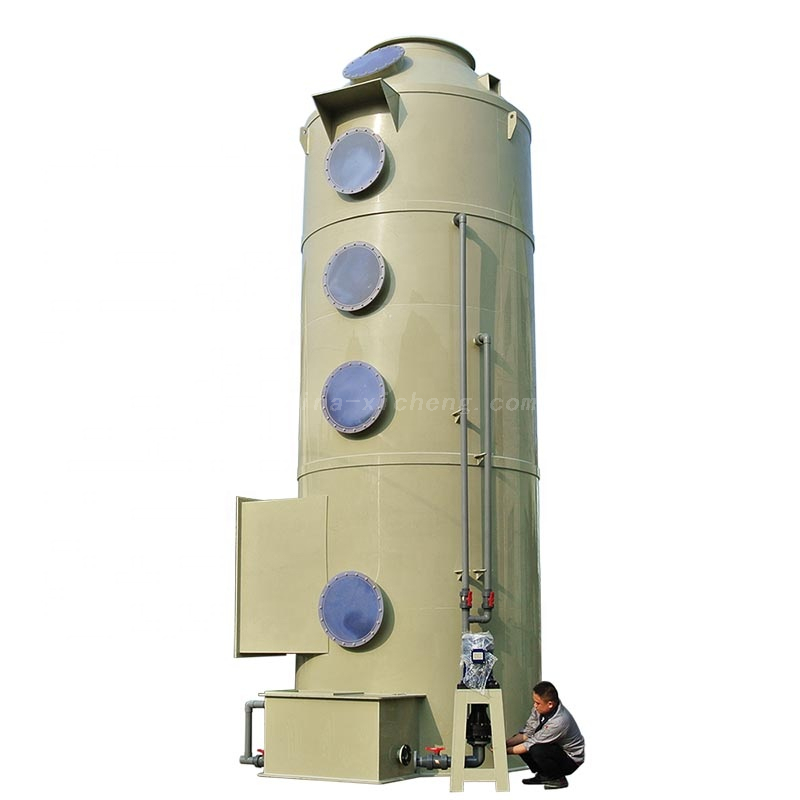

Vertical Packed Bed Scrubber

Packed bed scrubber beige

In a vertical counter-flow design, the gas flows upwards while the scrubbing liquid flows down through the rows of sprays. Absorption of the gas occurs in the bulk section of the scrubber and the scrubbing liquid is introduced into the liquid through a spray or spray distribution system. High-efficiency mist eliminators remove entrained liquids. Clean gas is present at the top of the container.

Horizontal Packed Bed Scrubber

horizontal scrubber

In a horizontal design, the gas flows horizontally while the scrubbing fluid flows downward through the liquid distribution system. The scrubber includes a random packing section where gas absorption takes place. High-efficiency mist eliminators remove entrained liquids. An integral sump sits at the bottom of the fill section, eliminating the need for an external tank.

Packed bed scrubbers equipment introduction:

The washing tower is a new type of industrial waste gas treatment equipment, which is widely used in industrial waste gas and dust removal, acid and alkali waste gas, painting industry, printing industry, pharmaceutical industry and other fields, the most commonly used and most practical processing equipment.It can effectively process HCL, HF, NH3, H2SO4, CrO3, HCN, NAOH, H2S, HCHO, etc.Various industrial organic waste gases and inorganic waste gases.

chemical scrubber manufacturers

Packed bed scrubbers structure and working principle

The industrial waste gas enters the washing tower and is in full contact with the washing liquid in the tower to generate a neutralization reaction to achieve the treatment purification effect, effectively remove dust and other various gases, and finally meet the discharge requirements.

Packed bed scrubbers the equipment features:

1. Low noise, stable operation, simple operation, low cost, etc.

2. In addition to high dust efficiency, it can handle various gases by using syrup and water.

3. Using high-quality PP sheet, corrosion-resistant, anti-aging, long service life, and can be customized according to requirements;

Technical Parameter Table :

Air volume
Drain outlet
Water tank
Inlet and
outlet size
3000 800    8    DN32 600*700*H700      315 0.75 500
5000 1000    8    DN40 600*800*H700      400  1.5  500
8000 1200    8    DN40 600*1000*H700      500  2.2 500
10000 1500   10    DN40 700*1000*H700       550  2.2 500
12000 1600   10    DN50 700*1000*H700      600 3.75 500
15000 1800   10    DN50 700*1200*H700      650 3.75 500
20000 2000   10    DN50 700*1200*H700      750  5.5 500
25000 2200   10    DN50 700*1200*H700      950  5.5 600
30000 2500   12    DN65 700*1200*H700     1000  5.5 600
35000 2700   12    DN65 1000*700*H700     1100 7.5 600
40000 2900   12    DN65 1000*700*H700     1200 7.5 600
45000 3000   12    DN65 1000*700*H700     1250  7.5 600

1. This form is a common size and we can customize different sizes and requirements according to your needs.
2. The material is polypropylene.
3. Equipment design wind speed 1.8m/s

Packed bed scrubbers repairs:

All the blowers we sell enjoy a one-year warranty. If there is any quality problem with the core components within one year, I will provide a one-for-one replacement for after-sales service. For more maintenance services, please contact us.
