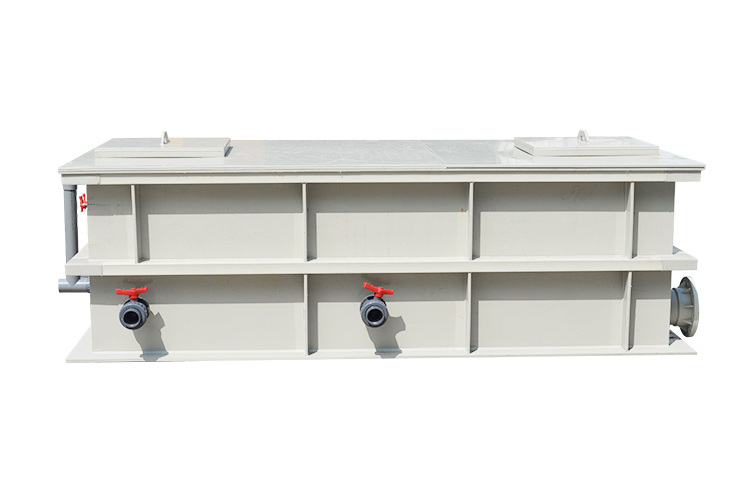

The PP plastic anti-corrosion water tank is made of PP polypropylene plastic, which is resistant to acid and alkali corrosion. It can be used to store various acid and alkali solutions. The PP plastic anti-corrosion water tank is a non-standard product. Xicheng Ep can be customized according to the required volume or external size. The volume of 1m³-30m³ can be processed. In terms of shape, PP plastic water tank has a circular structure and a square tank structure. The circular structure can be divided into two types: vertical and horizontal. The PP water tank of the horizontal structure is sealed at both ends. The head is welded, similar to the shape of a PP tank, and the bottom is supported by a saddle. Xicheng Ep specializes in the processing and production of PP plastic water tanks, and provides CAD drawing design services.
PP plastic anti-corrosion water tank performance characteristics
The PP plastic anti-corrosion water tank belongs to the normal pressure static volume. The production is in accordance with the HG20640 chemical standard. Pan Xicheng Ep is proficient in the structure and different uses of the PP plastic water tank. Users can provide application descriptions according to their needs. Xicheng Ep will design and provide CAD drawings for customer confirmation. size.
Provide the external dimension calculation according to the customer's liquid storage capacity;
Provide the wall thickness and strengthening method of the water tank according to the medium and concentration;
Provide the water inlet specifications and directions of the water tank according to the customer's takeover requirements;
PP plastic anti-corrosion water tank shape structure
Square box shape, providing length, width and height requirements;
Drum shape, providing volume, diameter and height requirements;
Description of pp plastic anti-corrosion water tank
Tank cover (open or closed)
Whether the cover is welded or movable or the cover is fixed with screws
level gauge
top viewing port
top feeding port
Bottom drain
liquid inlet
exhaust vent
Precautions for the production of pp plastic anti-corrosion water tank
The connection method of import and export is to use pp flange or wire or short tube hoop connection. If the flange standard is in accordance with the HG chemical standard or the GB national standard? Whether the wire mouth is an inner wire or an outer wire, and the outer diameter of the short tube if the short tube is connected by a hoop;
How long is the extension of the inlet and outlet nozzles?
How far is the import and export center off the ground?
In which direction is the import and export located in the PP plastic water tank?
If the inlet and outlet are flanged, what is the flange standard?
How to strengthen the PP plastic anti-corrosion water tank, whether to strengthen it internally or externally
Environmental protection PP round water tank processing drawing
Weight calculation of pp plastic anti-corrosion water tank after processing
The processing of PP plastic anti-corrosion water tank is mainly made of PP polypropylene sheet, the specific gravity is 0.92, if you need to know the weight of the water tank, you can decompose the structure of all the sheets, get the surface area multiplied by the thickness of the PP sheet to get the volume of the sheet and then multiply the specific gravity 0.92, which is the actual The weight of the water tank, the user can decide whether to strengthen the installation foundation according to the weight of the water tank plus the weight of the solution.
PP plastic anti-corrosion water tank industry application
Spray tower waste liquid collection
Water treatment dosing barrel
Laboratory Wastewater Collection
Chemicals in full bloom
Metal surface treatment agent dosing barrel
Dosing mixing barrel
