XC-05
XICHENG
8414593000
The volute and impeller of the PP fan are made of PP plastic, which has the characteristics of high strength, lightweight, corrosion resistance, stable operation and low noise. It can be used to transport corrosive gases, such as hydrochloric acid mist, sulfuric acid mist, and nitric acid. Fog and so on. Gas temperature≤60℃, relative hard particles≤100mg/m3. PP fans are not allowed to treat corrosive gases containing aromatic compounds, halogen derivatives of aliphatic and aromatic hydrocarbons, ketones and other corrosive gases.
chassis production process is as follows: the case can also be made of cold rolling steel plate surface treatment.
impeller manufacturing process is as follows: suitable for office buildings, shopping malls, theaters, hospitals, factories workshop, basements and other places where the ventilation exhaust, the delivery should be the gas does not contain viscous substances, and the gas temperature is not greater than 80 degrees, not more than 150mg/ M3. media content quality.

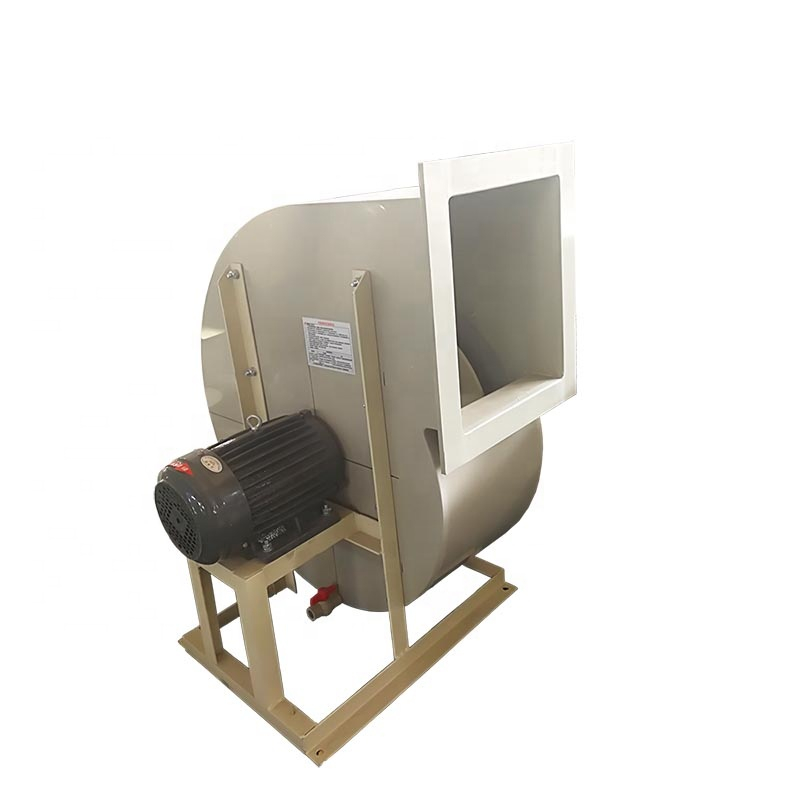

The PP fan produced by XICHENG EP LTD. adopts the A-type structure, that is, the motor is directly connected to the impeller, that is to say how many revolutions of the motor speed is selected, the impeller of the PP fan is how many revolutions, the PP fan produced by XICHENG EP LTD Usually equipped with two kinds of speed motors, which are 1440 rpm and 2900 rpm. The motor power is available from 0.75KW to 11KW. The structure of the PP fan is mainly composed of impeller, volute, motor, and shock-absorbing base. The base frame is made of profiled material and fixedly connected to the volute of the PP fan.

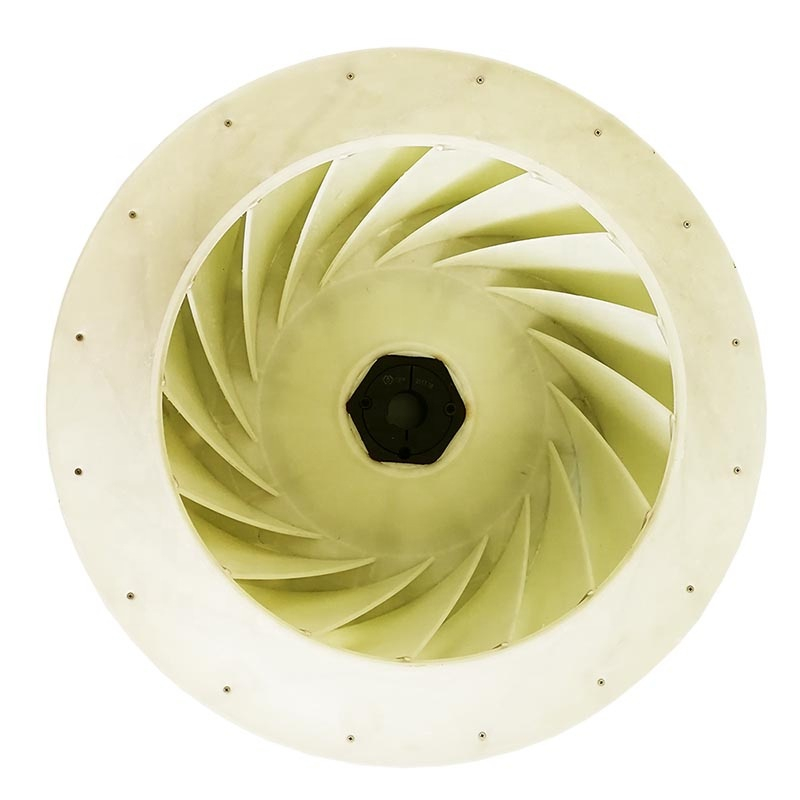

PP fan impeller: consists of blades and hubs, both of which are made of reinforced PP injection molding.
PP fan volute: It is composed of volute and inlet and outlet, all made of PP A-level board.
PP fan motor department: customized dedicated horizontal motor, sprayed with anticorrosive paint on the surface of the fuselage.
PP fan shock-absorbing base: the factory standard is a rubber base, if you need a spring base, you can choose it.
| Fiberglass Reinforced Plastics Fan | |||
| Specification | Pump | Wind velocity | Wind resistance |
| XC-FJ-3 | 1.5KW | 2000m³/h | 1145Pa |
| XC-FJ-3.6 | 2.2KW | 4000m³/h | 1150Pa |
| XC-FJ-5.5 | 4.0KW | 6000m³/h | 1000Pa |
| XC-FJ-6 | 5.5KW | 8000m³/h | 1100Pa |
All the blowers we sell enjoy a one-year warranty. If there is any quality problem with the core components within one year, I will provide a one-for-one replacement for after-sales service. For more maintenance services, please contact us.
Shenzhen Xicheng Environmental Teachnology Co., LTD. is located in Baoan District, Shenzhen. It is an environmental protection equipment manufacturer which has been focusing on the environmental protection industry for many years and specializing in the production and sales of environmental protection equipment and various accessories.
With the aims of "Quality First, Mutual Benefit, Cooperation and Win-Win", our company is directed by market demand and has independently developed new varieties to satisfy different industries' needs for the differences and diversification of plastics.
PERSONALIZED CUSTOMIZATION
The products can be customized according to customers' requirments and drawings.
INSTALLATION
Our company can send professional engineers to guide device installation and provide a professional plan.
AFTER SERVICE
Our equipment will have a one-year life of quality assurance, repair and replacement are guranteed.
1. Q. Are you a trading company or manufacture?
A: We are manufacture; we have our professional manufacturing teams and technicians
2. Q. How long is the warranty of your equipment?
A: One year warranty, in the meanwhile, quality inspection before delivery; during the warranty period, we can replace the damaged consumables for free, after the warranty period, we have a good price for consumables for our customers.
3. Q: Do you have technical support?
A: Our Company is responsible for installation and debugging of equipment, meanwhile, responsible for the technology and operation training for user operator.
4. Q: Is overseas after-sales service available?
A: Yes, and after installation we will teach you basic operation and maintenance method.
5. Q: May I customize my own equipment?
A: Yes, please inform us your needs in details and we will design the facility per your data.
