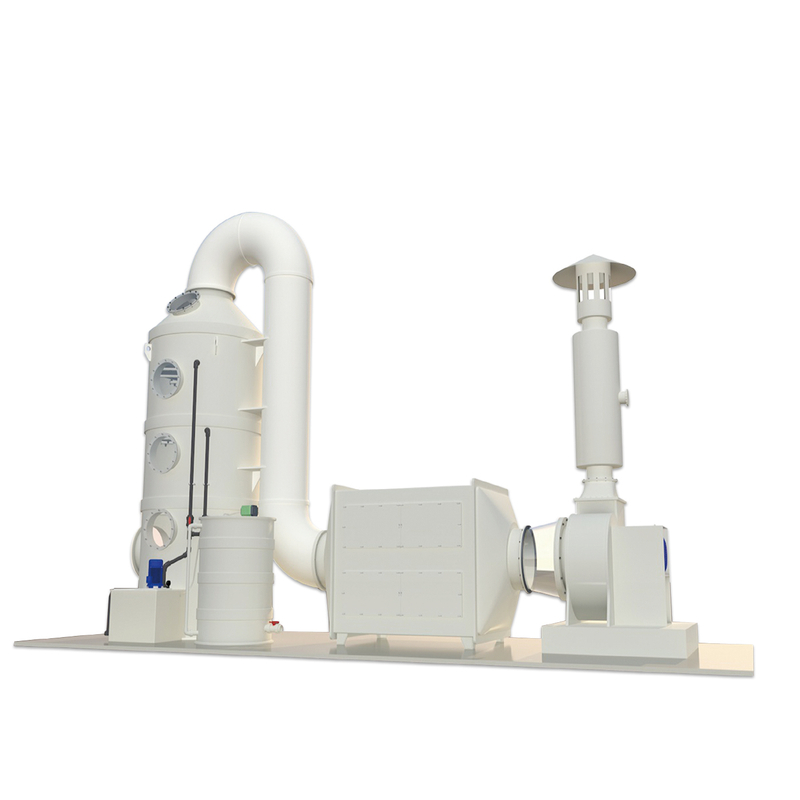

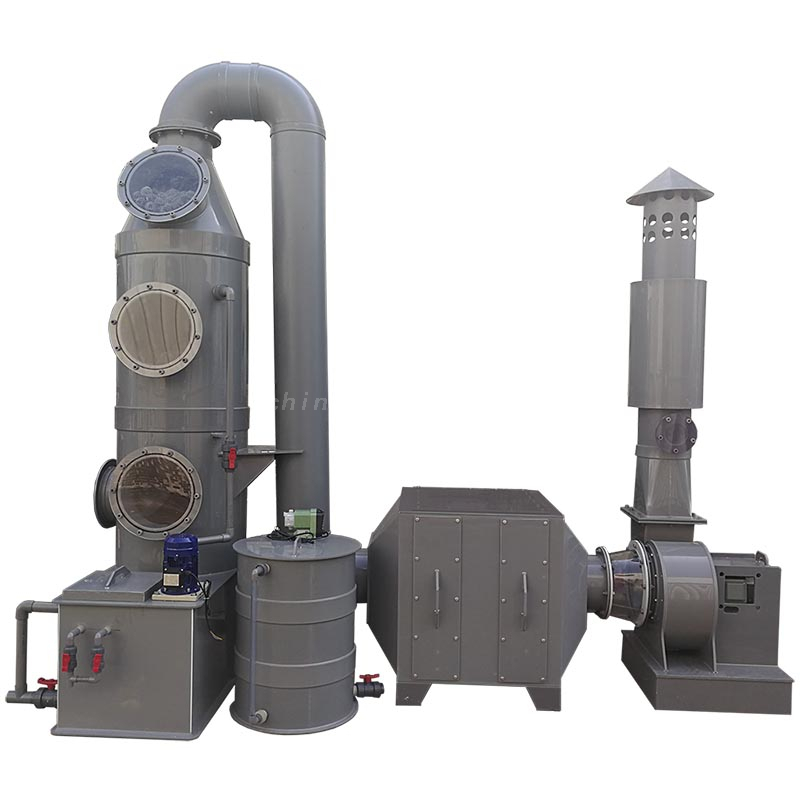

Wet Scrubber System Design

XICHENG EP LTD. has 12 years of exhaust gas treatment experience, is equipped with a professional design and R&D team, and more than 30 large-scale production plants. Provide professional exhaust gas equipment design, production and processing, equipment installation comprehensive services.
Size:
Availability:
Quantity:
  • XC-01

  • XICHENG

  • 8414593001

Wet scrubber is a new type of industrial waste gas treatment equipment, which is widely used in industrial waste gas dust removal, acid and alkali waste gas, coating industry, printing industry, pharmaceutical industry and other fields, the most commonly used and most practical processing equipment. It can effectively treat various industrial organic waste gas and inorganic waste gas such as HCL, HF, NH3, H2SO4, CrO3, HCN, NAOH, H2S, HCHO, etc.


Wet scrubber design

According to different production industries and purification air volume, professional air waste treatment plans are formulated. Tracking service throughout the production and installation of equipment.

Technical Parameter Table :

Air volume
(M3/H)
Size
(mm)
THK
(mm)
Drain outlet
(mm)
Water tank
size(mm)
Inlet and
outlet size
(mm)
Pump
(KW)
Wind
resistance
 (Pa)
3000 800    8    DN32 600*700*H700      315 0.75 500
5000 1000    8    DN40 600*800*H700      400  1.5  500
8000 1200    8    DN40 600*1000*H700      500  2.2 500
10000 1500   10    DN40 700*1000*H700       550  2.2 500
12000 1600   10    DN50 700*1000*H700      600 3.75 500
15000 1800   10    DN50 700*1200*H700      650 3.75 500
20000 2000   10    DN50 700*1200*H700      750  5.5 500
25000 2200   10    DN50 700*1200*H700      950  5.5 600
30000 2500   12    DN65 700*1200*H700     1000  5.5 600
35000 2700   12    DN65 1000*700*H700     1100 7.5 600
40000 2900   12    DN65 1000*700*H700     1200 7.5 600
45000 3000   12    DN65 1000*700*H700     1250  7.5 600

1.This form is a common size and we can customize different sizes and requirements according to your needs.
2.The material is polypropylene.
3.Equipment design wind speed 1.8m/s
