Square PP duct product introduction

Views:7     Author:XICHENG EP LTD     Publish Time: 2021-08-18      Origin:XICHENG EP LTD

The square PP air duct is also called polypropylene plastic air duct, which is used for exhaust gas exhaust in the laboratory. The square PP duct is usually used as the main duct and branch duct with the PP circular duct. The square PP air duct is made of PP sheet through a bending machine, four times of 90-degree elbows, and then hot-melt welding. There are many processes. Compared with square pipes, the price of square pipes is higher for round pipes with the same circumference or cross-section. Of course, it also depends on the wall thickness of the square PP duct and whether it is reinforced by the outer flange.


Features of square PP duct


  • No corrosion: The square PP duct can withstand the PH value in a wide temperature range, ranging from 1 to 14 high concentrations of acid and alkali corrosion.

  • Wear-resistant and non-scaling: PP pipes and pipe fittings have uniform and smooth inner walls, with low flow resistance and no scaling.

  • Reduce vibration and noise: PP pipe has excellent sound insulation performance, which can significantly reduce vibration and noise caused by liquid flow.

  • Anti-freeze cracking: PP material has excellent elasticity so that the pipes and pipe sections can expand with the frost heaving liquid without cracking.

  • Anti-condensation, low heat loss: PP material is a poor heat conductor, which can reduce condensation and reduce heat loss.

  • Simple installation: PP pipes are light in weight, easy to install and operate, and are weldable.

  • Long service life: PP piping system has a service life of up to 50 years under specified conditions of use. Long service life-----PP pipeline can be used safely for more than 50 years under rated temperature and pressure conditions.

  • Excellent corrosion resistance-----It can withstand the corrosion of most chemicals, and can withstand the corrosion of high-concentration acids and alkalis with a pH value of 1-14 in a wide range.

  • Excellent abrasion resistance-the abrasion resistance of PP pipes is more than 4 times that of steel pipes when transporting ore slurry.

  • Good hygiene performance-----PP pipe material has only carbon and hydrogen elements in its molecule, which is non-toxic and tasteless, and has reliable hygiene performance.

  • Heat-resistance, heat preservation and energy saving-----PP pipe material has a maximum operating temperature of about 95 degrees. The thermal conductivity of this product is only 1200 that of steel pipe, so it has better heat preservation performance.


Square PP duct specifications


The specifications of PP square duct are:


  • The single side length is less than 250mm, manual cutting and splicing are required, and the minimum range of the bending machine

  • One side length greater than 250mm can be processed by a bending machine. Common sizes are 250x320, 320x400, 400x630, 600x830, etc.

  • More size specifications can be customized


Square PP duct connection method


Socket connection, that is, a PP sleeve is welded at the end of each section of the air pipe to facilitate the insertion of the next section of the air pipe;

Flange connection, that is, a PP flange is welded at both ends of each section of the air pipe, and the screw-to-lock connection is used during installation.


Convenient production, welding method for installation, firm, square PP duct flange connection, round and square can be customized

Need to splice flange, easy installation, screw lock, easy to disassemble and maintain

How to strengthen the square PP duct


In industrial exhaust, in most cases, the end centrifugal fan is used to extract the air. The pipeline forms a negative pressure. The industry design specification stipulates the wall thickness and strengthening method of the square PP duct at a certain wind speed. Usually, the square PP While the large square air duct is reinforced with outer flanges, the inner part is supported by PP circular pipes.


Precautions for ordering square PP duct

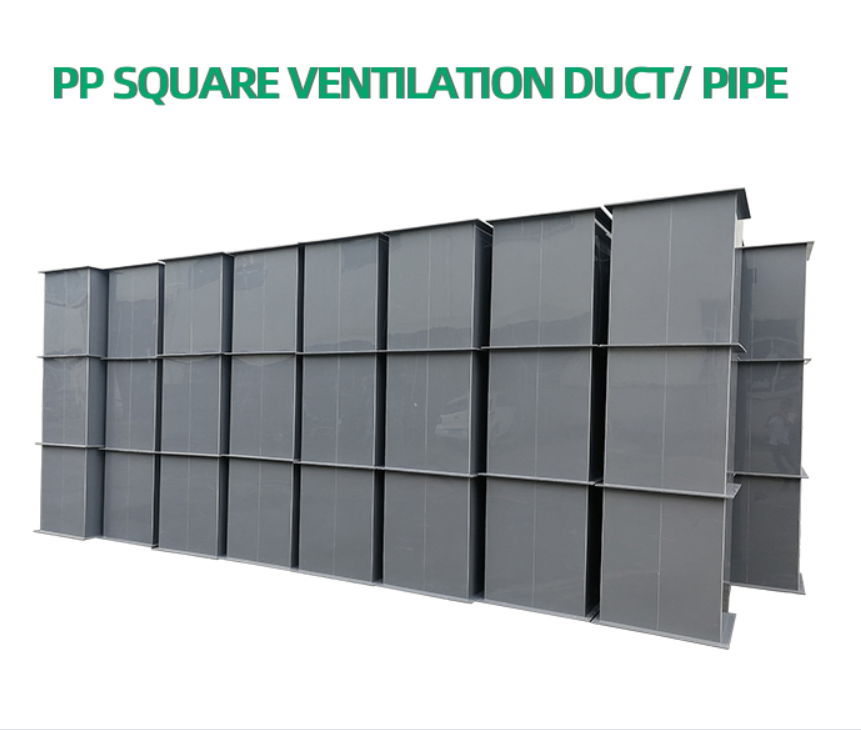

PP square ventilation duct

Please clarify the following points when ordering square PP ducts:

  • Pipe diameter (outer diameter of pipe);

  • Wall thickness

  • Connection method (socket type or flange type);

  • Strengthening method (whether flange strengthening is required);

  • Quantity (recommended length unit for air duct: meter);

  • Shipping address (for easy calculation of logistics freight)
