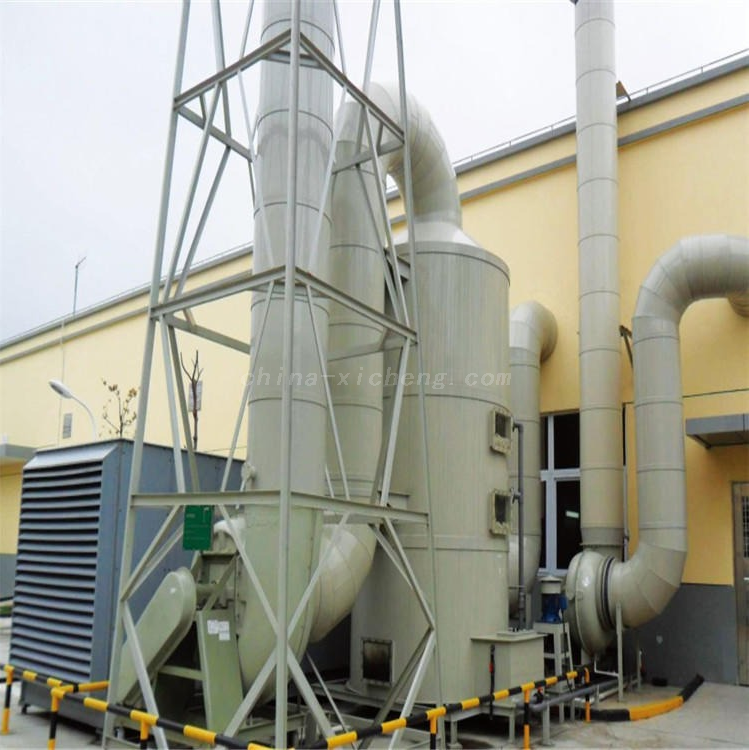

Scrubber Tower

The Scrubber Tower is used for gas absorption, including acid gases such as SO2, HCl, etc. The Scrubber Tower can also absorb solvents like alcohol and gases like ammonia. Almost all water-soluble chemicals can be removed from the gas using packed columns.
Function:
Size:
Availability:
Quantity:
  • XC-1

  • Xicheng

  • 8421399090

The Scrubber Tower is used for gas absorption, including acid gases such as SO2, HCl, etc. The Scrubber Tower can also absorb solvents like alcohol and gases like ammonia. Almost all water-soluble chemicals can be removed from the gas using packed columns.


The Scrubber Tower can also be used to remove trace substances such as odors including hydrogen sulfide.


This type of scrubber can also be used for cooling gas, aeration, and any other application that requires transfer from gas to liquid.


Scrubber Tower is also known as scrubber, waste gas treatment tower, spray tower, waste gas absorption tower, waste gas scrubber. Wet swirl plate exhaust gas purification tower is more advanced in wet dust removal technology. The effect of dust removal, desulfurization and paint removal on boilers is particularly significant. It is also widely used. Compared with other wet processes, the dust removal effect is better. reduce. Not only does it remove more than 95% of paint dust, but it also guarantees low gas humidity and simple water filtration.


The Scrubber Tower is the simplest equipment for industrial dust removal or waste gas treatment. Simple structure, low cost, low gas pressure and no blockage.

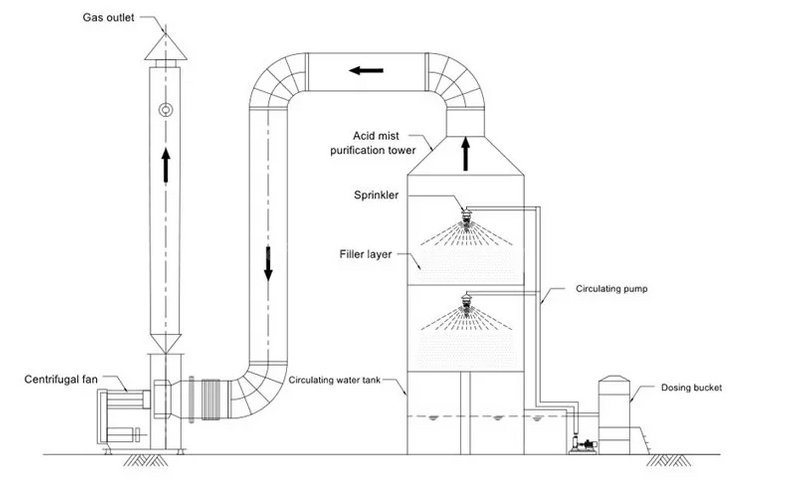

The working principle of Scrubber Tower can be divided into three forms: co-current, counter-current and cross-current. Among them, the most commonly used is countercurrent spraying: acid or alkaline acid mist exhaust gas is introduced into the purification tower through the air duct, and the exhaust gas is fed from the bottom of the tower through the packing layer. continuous through the voids of the packing layer. On the surface of the packing, the gas-liquid two phases fully contact, absorb and neutralize the reaction, and adsorb the acidic or basic pollutants contained in the exhaust gas. After the acid mist exhaust gas is purified, the clean gas is dehydrated and demisted by the defogging plate and then discharged into the atmosphere by the fan. Insoluble viscose particles and dust are poured into the collection tank, suspended particles are discharged from the overflow outlet, and the collected sediment is discharged from the sewage outlet. The absorption liquid is pressurized by the water pump at the bottom of the tower and sprayed downward from the top of the tower, and finally refluxed to the bottom of the tower for recycling.

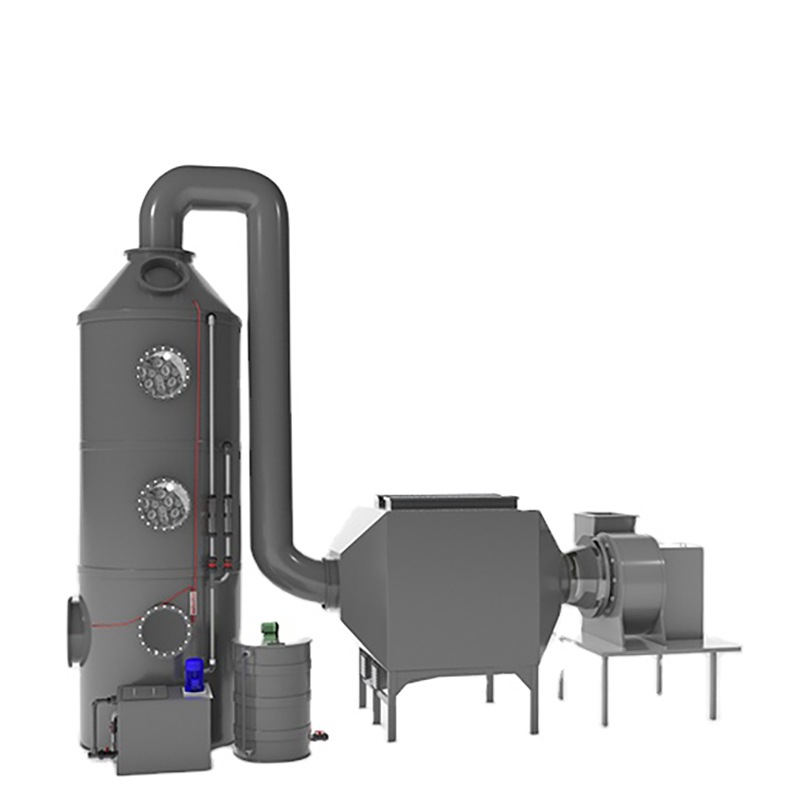

scrubber system

Advantages of Scrubber Tower Appliances:

The Scrubber Tower has low noise, stable operation, and simple and convenient operation; the washing waste gas treatment system is cheap and the treatment method is simple. It can deal with gaseous, liquid and solid pollution sources; the system pressure loss is small, which is suitable for large air volume; the type of filling layer design can deal with mixed pollution sources. The acid and alkali waste gas can be treated economically and effectively, and the removal rate can be as high as 92%.


How the Scrubber Tower device works:

The dust-laden gas and black smoke tail gas enter the bottom of the exhaust gas purification tower through the flue pipe, and the soot is washed by the spray system. The mist is combined with the circulating spray water to further fully mix in the main body. At this time, the dust particles in the dust-laden gas are captured by the water, the dust and water are centrifuged or filtered, and flow into the circulation pool through the tower wall due to the action of gravity. Expel the purge gas. Wastewater is regularly picked up and transported from the sludge in the circulating tank.


Scrubber Tower equipment applicable industries:

Electronic industry, semiconductor manufacturing, PCB manufacturing, LCD manufacturing, steel metal industry, electroplating and metal surface treatment industry, pickling process, dye/pharmaceutical/chemical, deodorization/chlorine neutralization, combustion exhaust SOx/NOx removal and other water Treatment - Soluble Air Pollutants.
