XC-01
Xicheng
8421399090

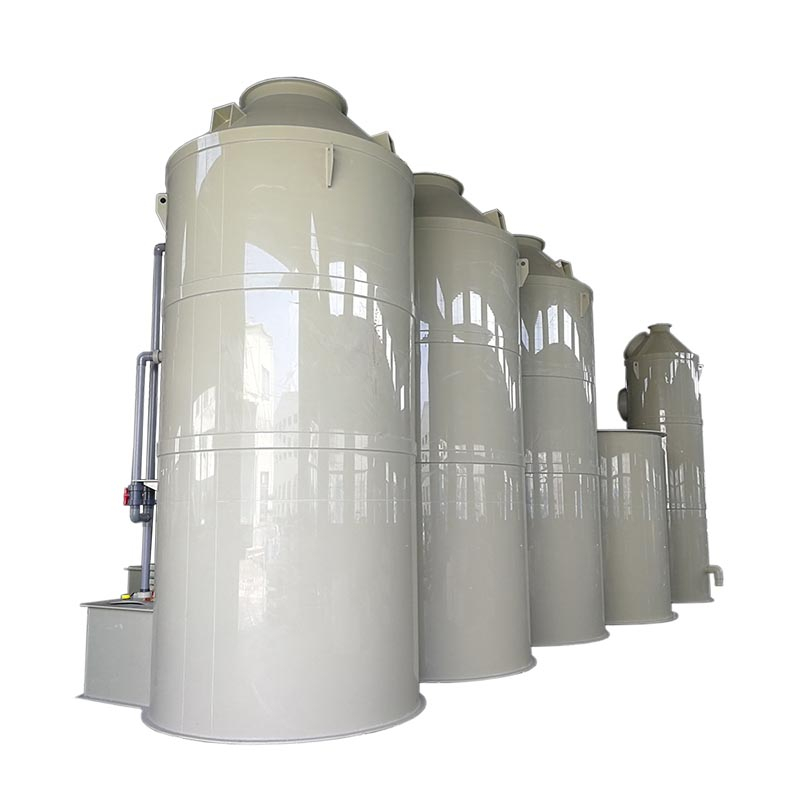

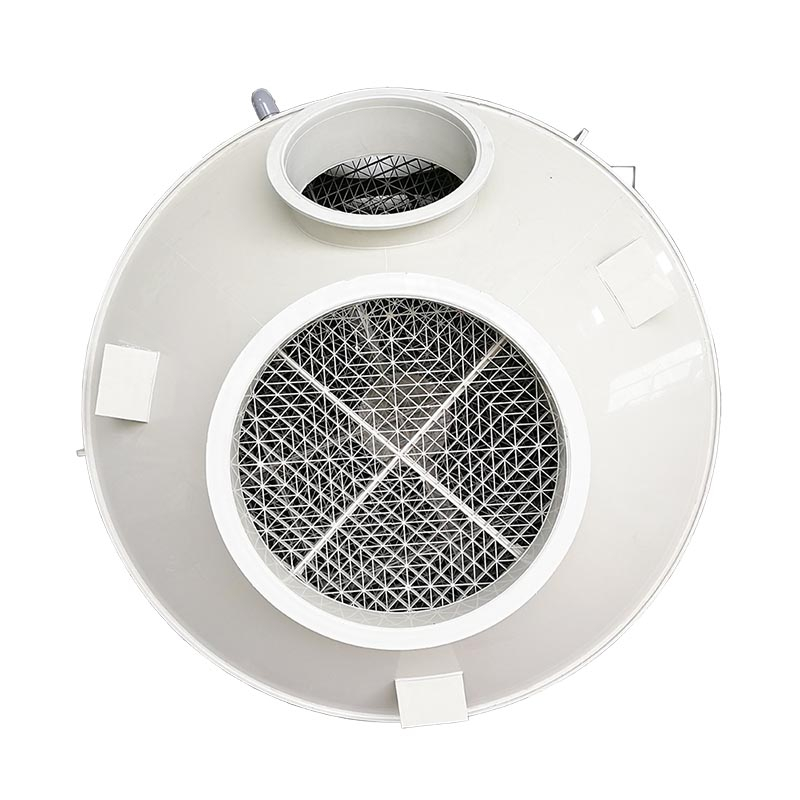

Purification tower is a new kind of industrial waste gas treatment equipment, which adopts new PP material (polypropylene). It is improved on the basis of floating packing layer and industrial waste gas purifier. It is widely used in the pretreatment of industrial waste gas treatment and dust removal,The purification effect is very good. It is the most common and practical treatment equipment in the treatment of acid and alkali waste gas .
| Exhaust Gas Treatment Equipment - Washing Tower Parameter | |||||||
| Air volume(m³/h) | Size(mm) | THK(mm) | Drain Outlet(mm) | Water Tank Size(mm) | Inlet and Outlet Size(mm) | Pump(kw) | Wind Resistance(Pa) |
| 3000 | 800 | 8 | DN32 | 600*700*H700 | 315 | 0.75 | 500 |
| 5000 | 1000 | 8 | DN40 | 600*800*H700 | 400 | 1.5 | 500 |
| 8000 | 1200 | 8 | DN40 | 600*1000*H700 | 500 | 2.2 | 500 |
| 10000 | 1500 | 10 | DN40 | 700*1000*H700 | 550 | 2.2 | 500 |
| 12000 | 1600 | 10 | DN50 | 700*1000*H700 | 600 | 3.75 | 500 |
| 15000 | 1800 | 10 | DN50 | 700*1200*H700 | 650 | 3.75 | 500 |
| 20000 | 2000 | 10 | DN50 | 700*1200*H700 | 750 | 5.5 | 500 |
| 25000 | 2200 | 10 | DN50 | 700*1200*H700 | 950 | 5.5 | 600 |
| 30000 | 2500 | 12 | DN65 | 700*1200*H700 | 1000 | 5.5 | 600 |
| 35000 | 2700 | 12 | DN65 | 1000*700*H700 | 1100 | 7.5 | 600 |
| 40000 | 2900 | 12 | DN65 | 1000*700*H700 | 1200 | 7.5 | 600 |
| 45000 | 3000 | 12 | DN65 | 1000*700*H700 | 1250 | 7.5 | 600 |
| 1.This form is a common size and we can customize different sizes and requirements according to your needs. | |||||||
| 2.The material is polypropylene. | |||||||
| 3.Equipment design wind speed 1.8m/s | |||||||
DISPLAY

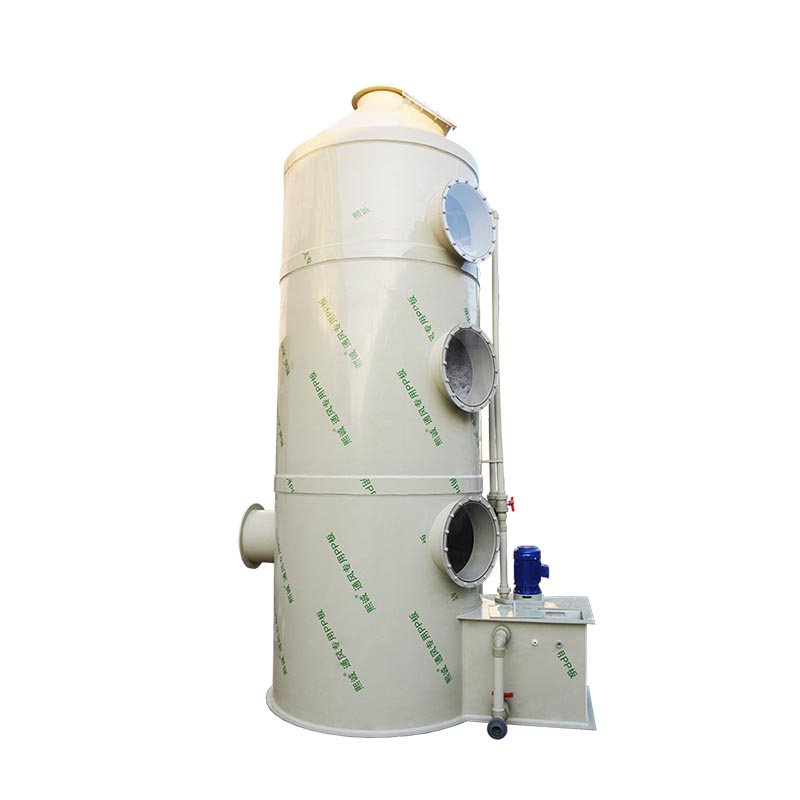

spraying through the water circulation, the gas rises from below, and the water circulates from top to bottom. Filter dust and impurities from the water. The waste gas is treated by neutralizing the syrup and water. More than 90% of the exhaust gas used by the scrubber is effective, and the most effective ones are dust and acid-base gases.
