XC-01
Xicheng
8421399090
Exhaust Gas Treatment Equipment - Washing Tower Parameter | |||||||
Air volume(m³/h) | Size(mm) | THK(mm) | Drain Outlet(mm) | Water Tank Size(mm) | Inlet and Outlet Size(mm) | Pump(kw) | Wind Resistance(Pa) |
3000 | 800 | 8 | DN32 | 600*700*H700 | 315 | 0.75 | 500 |
5000 | 1000 | 8 | DN40 | 600*800*H700 | 400 | 1.5 | 500 |
8000 | 1200 | 8 | DN40 | 600*1000*H700 | 500 | 2.2 | 500 |
10000 | 1500 | 10 | DN40 | 700*1000*H700 | 550 | 2.2 | 500 |
12000 | 1600 | 10 | DN50 | 700*1000*H700 | 600 | 3.75 | 500 |
15000 | 1800 | 10 | DN50 | 700*1200*H700 | 650 | 3.75 | 500 |
20000 | 2000 | 10 | DN50 | 700*1200*H700 | 750 | 5.5 | 500 |
25000 | 2200 | 10 | DN50 | 700*1200*H700 | 950 | 5.5 | 600 |
30000 | 2500 | 12 | DN65 | 700*1200*H700 | 1000 | 5.5 | 600 |
35000 | 2700 | 12 | DN65 | 1000*700*H700 | 1100 | 7.5 | 600 |
40000 | 2900 | 12 | DN65 | 1000*700*H700 | 1200 | 7.5 | 600 |
45000 | 3000 | 12 | DN65 | 1000*700*H700 | 1250 | 7.5 | 600 |
1.This form is a common size and we can customize different sizes and requirements according to your needs. | |||||||
2.The material is polypropylene. | |||||||
3.Equipment design wind speed 1.8m/s |

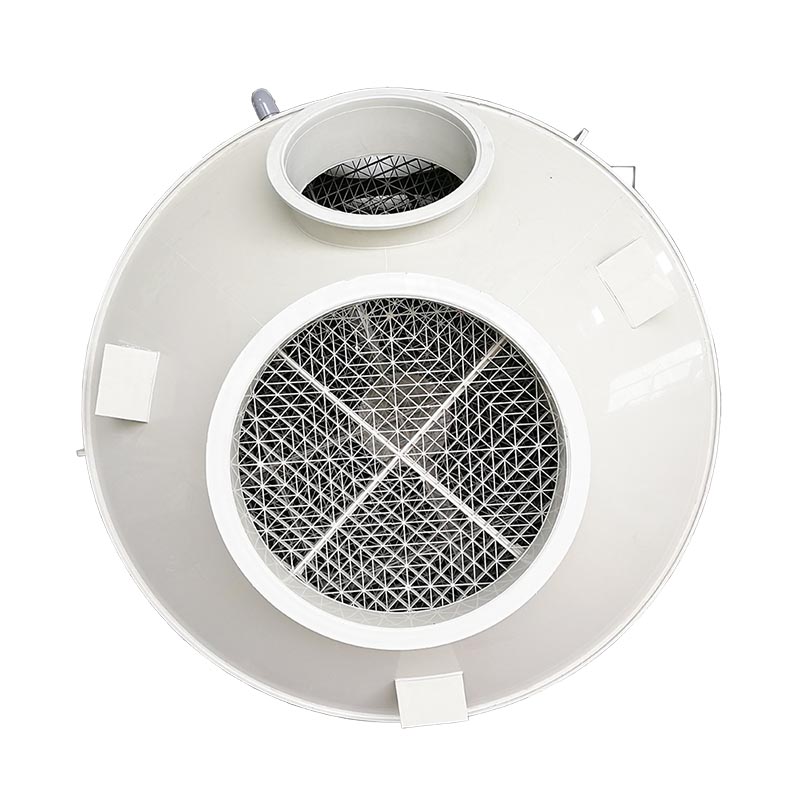

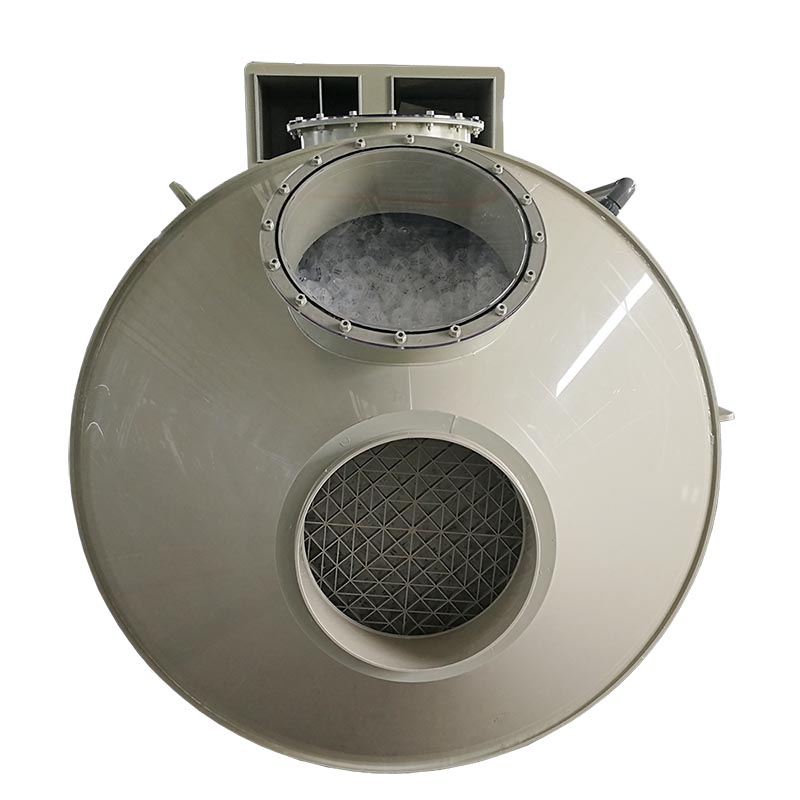

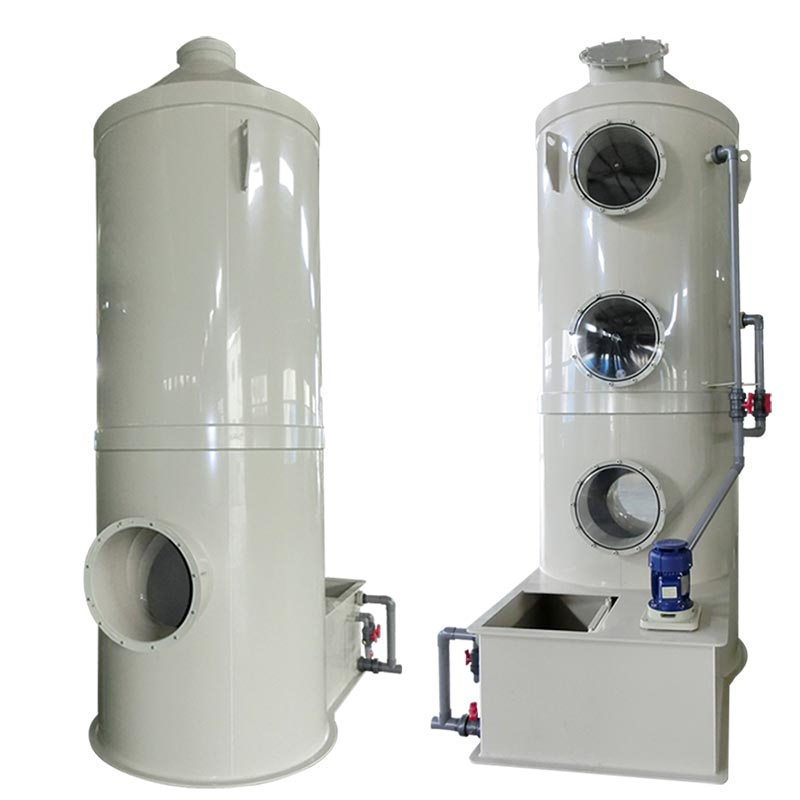

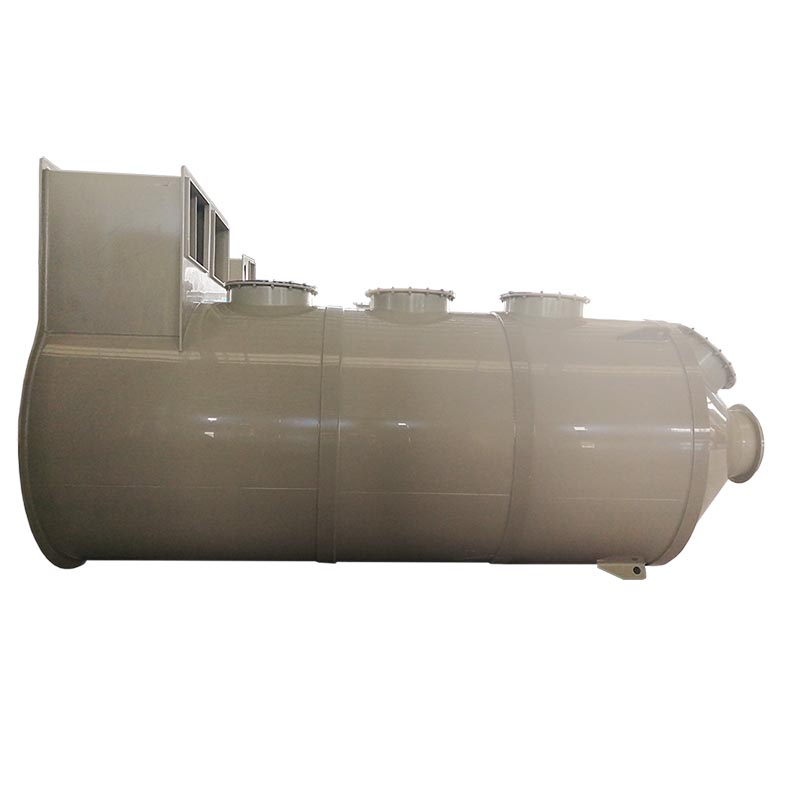

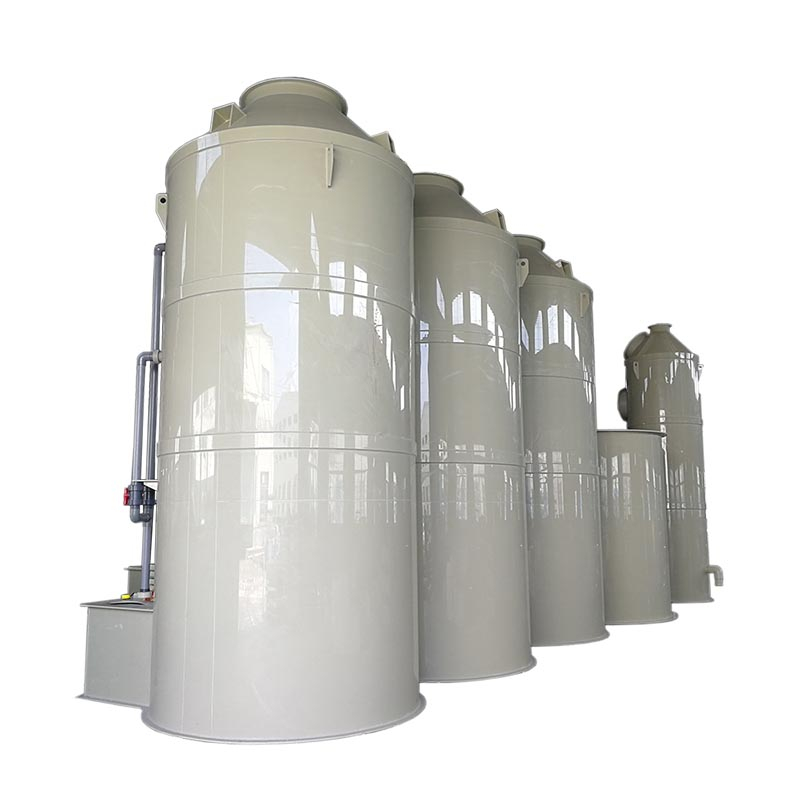

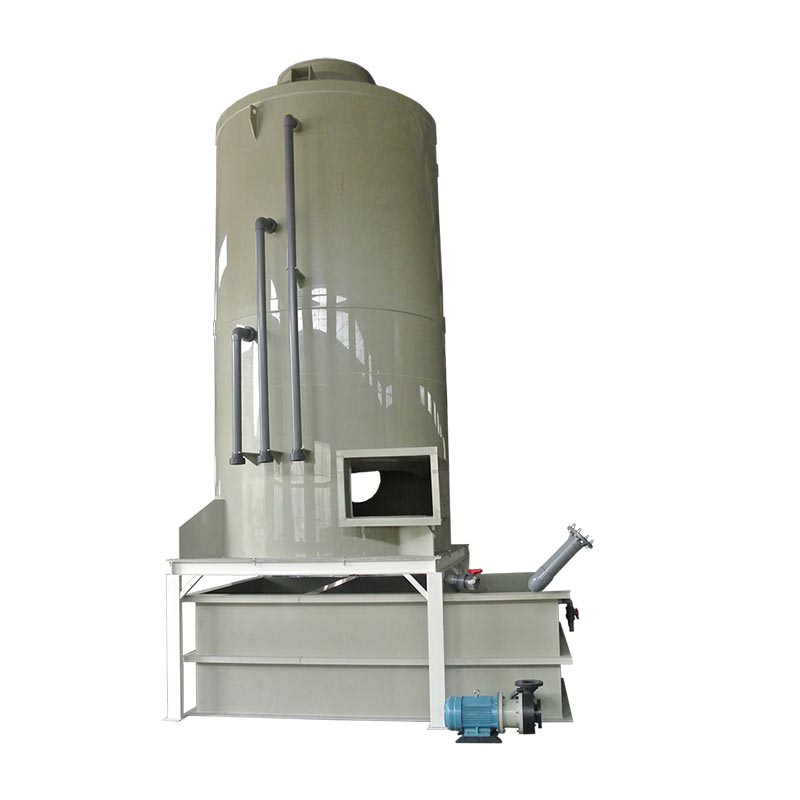

DISPLAY
spraying through the water circulation, the gas rises from below, and the water circulates from top to bottom. Filter dust and impurities from the water. The waste gas is treated by neutralizing the syrup and water. More than 90% of the exhaust gas used by the scrubber is effective, and the most effective ones are dust and acid-base gases.
COMPANY STRENGTH
CERTIFICATION
INSTALLATION SITE
SCOPE of APLICATION
OUR SERVICE
Exhaust Gas Treatment Equipment - Washing Tower Parameter | |||||||
Air volume(m³/h) | Size(mm) | THK(mm) | Drain Outlet(mm) | Water Tank Size(mm) | Inlet and Outlet Size(mm) | Pump(kw) | Wind Resistance(Pa) |
3000 | 800 | 8 | DN32 | 600*700*H700 | 315 | 0.75 | 500 |
5000 | 1000 | 8 | DN40 | 600*800*H700 | 400 | 1.5 | 500 |
8000 | 1200 | 8 | DN40 | 600*1000*H700 | 500 | 2.2 | 500 |
10000 | 1500 | 10 | DN40 | 700*1000*H700 | 550 | 2.2 | 500 |
12000 | 1600 | 10 | DN50 | 700*1000*H700 | 600 | 3.75 | 500 |
15000 | 1800 | 10 | DN50 | 700*1200*H700 | 650 | 3.75 | 500 |
20000 | 2000 | 10 | DN50 | 700*1200*H700 | 750 | 5.5 | 500 |
25000 | 2200 | 10 | DN50 | 700*1200*H700 | 950 | 5.5 | 600 |
30000 | 2500 | 12 | DN65 | 700*1200*H700 | 1000 | 5.5 | 600 |
35000 | 2700 | 12 | DN65 | 1000*700*H700 | 1100 | 7.5 | 600 |
40000 | 2900 | 12 | DN65 | 1000*700*H700 | 1200 | 7.5 | 600 |
45000 | 3000 | 12 | DN65 | 1000*700*H700 | 1250 | 7.5 | 600 |
1.This form is a common size and we can customize different sizes and requirements according to your needs. | |||||||
2.The material is polypropylene. | |||||||
3.Equipment design wind speed 1.8m/s |
DISPLAY
spraying through the water circulation, the gas rises from below, and the water circulates from top to bottom. Filter dust and impurities from the water. The waste gas is treated by neutralizing the syrup and water. More than 90% of the exhaust gas used by the scrubber is effective, and the most effective ones are dust and acid-base gases.
