XC-01
XICHENG
8421399091
product description

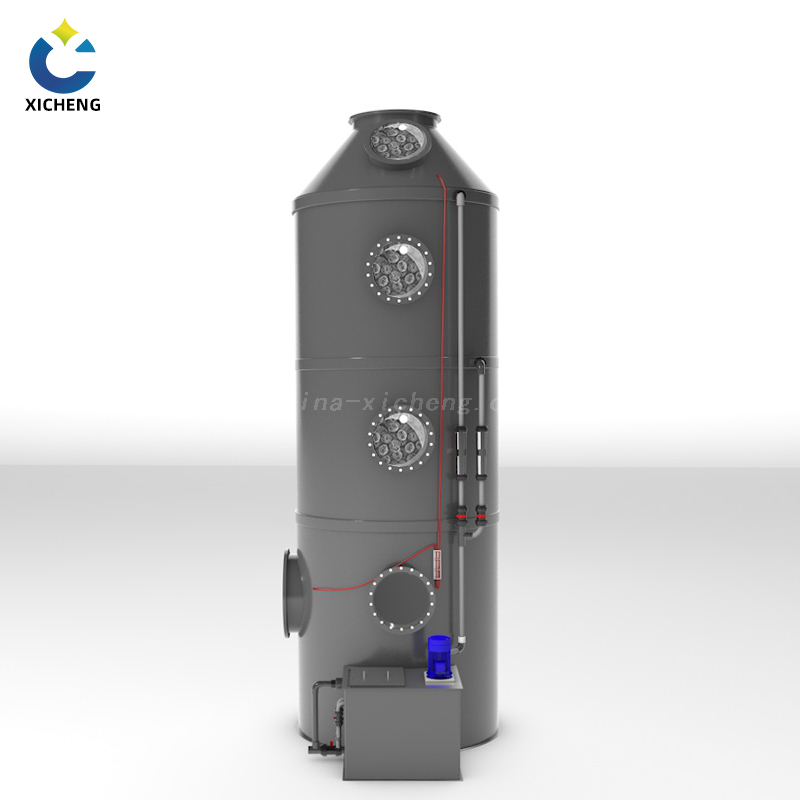

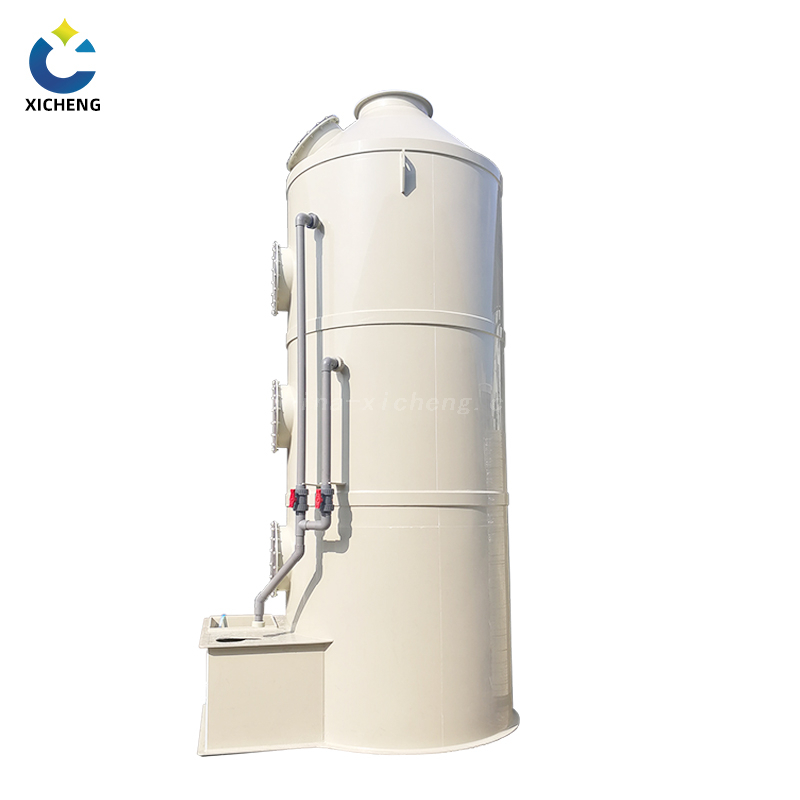

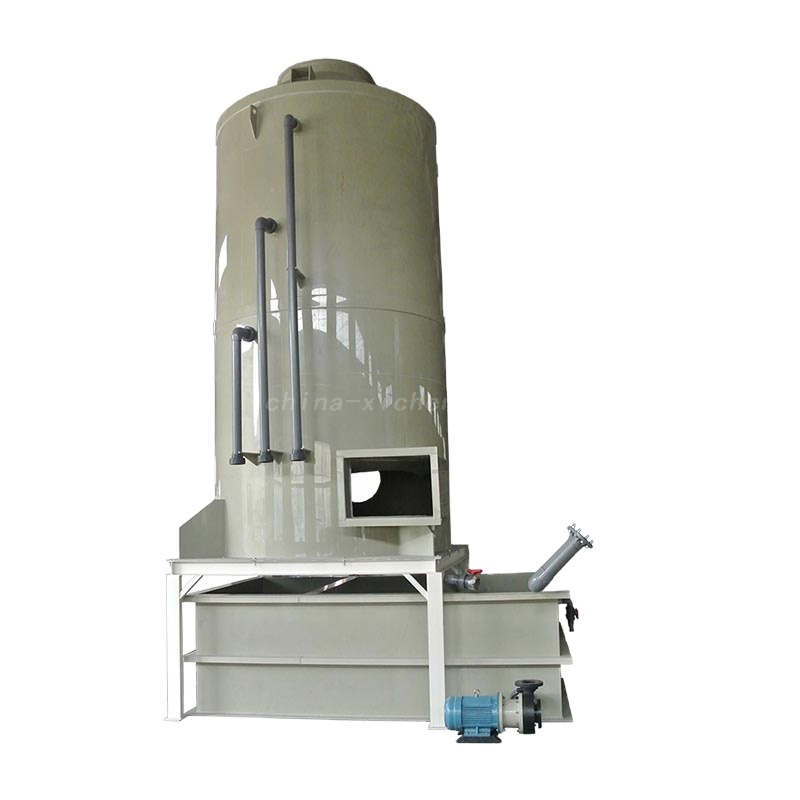

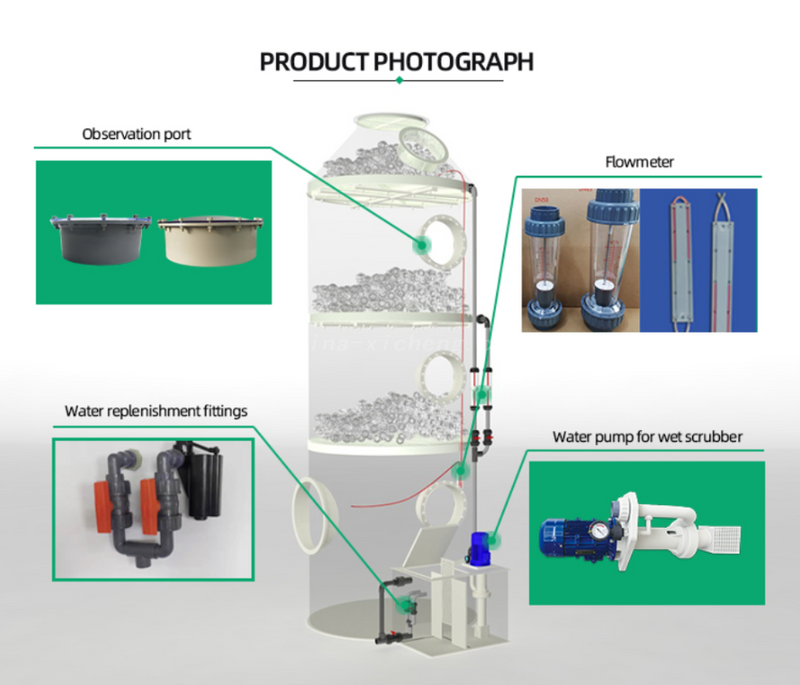

PP wet scrubber system-PP scrubber, high-pressure water pump, transparent window, polyhedral spherical packing, PP integral grid plate, PP water pipe.
1. Equipment introduction:
The polymer plastic wet scrubber system is mainly used to treat chemical waste gas discharged from industrial production. The PP wet scrubber can effectively remove HCL, HF, NH3, H2SO4, CrO3, HCN, NAOH, H2S, HCHO and other water-soluble gases.
2. Structure and working principle
structure
The structure of wet scrubber: Although the structure of different types of wet dust collectors are quite different, they are generally composed of exhaust gas introduction device, water diversion device, water vapor contact body, droplet separator and sewage (mud) discharge device.
principle
The gas enters the tower body from the bottom of the scrubber, is sent into the intake space by the fan, and then it rises evenly and flows into the packing absorption section. The packing layer is filled with solid, liquid (water or acid-base solution) or Microbial adsorbent, the pollutants in the exhaust gas and the filler chemically react, so that the pollutants in the exhaust gas are converted into salt solution. As the absorption liquid of the filler layer flows down to the liquid storage tank, the exhaust gas that is not fully absorbed will rise to the spray part , The spray part is equipped with nozzles, which can spray spray liquid at high speed to form countless small droplets, which will chemically react with unabsorbed gas.
3. Features of this equipment:
1. PP plastic material, easy to install and has flame retardant and chemical corrosion resistance characteristics.
2. The production and transportation cost of PP wet scrubber is low.
3. It can be customized and processed according to needs, and it has a wide range of applications.
Technical Parameter Table :
| Air volume (M3/H) | Size (mm) | THK (mm) | Drain outlet (mm) | Water tank size(mm) | Inlet and outlet size (mm) | Pump (KW) | Wind resistance (Pa) |
| 3000 | 800 | 8 | DN32 | 600*700*H700 | 315 | 0.75 | 500 |
| 5000 | 1000 | 8 | DN40 | 600*800*H700 | 400 | 1.5 | 500 |
| 8000 | 1200 | 8 | DN40 | 600*1000*H700 | 500 | 2.2 | 500 |
| 10000 | 1500 | 10 | DN40 | 700*1000*H700 | 550 | 2.2 | 500 |
| 12000 | 1600 | 10 | DN50 | 700*1000*H700 | 600 | 3.75 | 500 |
| 15000 | 1800 | 10 | DN50 | 700*1200*H700 | 650 | 3.75 | 500 |
| 20000 | 2000 | 10 | DN50 | 700*1200*H700 | 750 | 5.5 | 500 |
| 25000 | 2200 | 10 | DN50 | 700*1200*H700 | 950 | 5.5 | 600 |
| 30000 | 2500 | 12 | DN65 | 700*1200*H700 | 1000 | 5.5 | 600 |
| 35000 | 2700 | 12 | DN65 | 1000*700*H700 | 1100 | 7.5 | 600 |
| 40000 | 2900 | 12 | DN65 | 1000*700*H700 | 1200 | 7.5 | 600 |
| 45000 | 3000 | 12 | DN65 | 1000*700*H700 | 1250 | 7.5 | 600 |
1.This form is a common size and we can customize different sizes and requirements according to your needs.
2.The material is polypropylene.
3.Equipment design wind speed 1.8m/s
