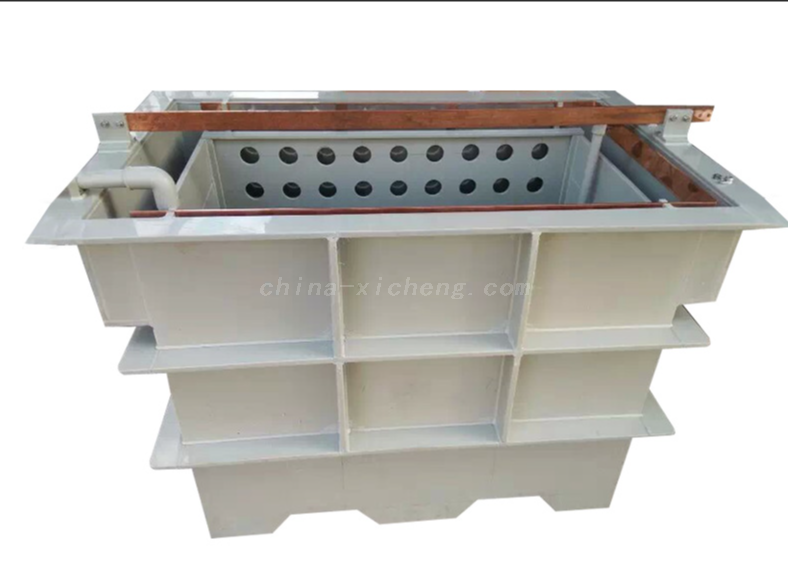

A PP Plastic Plating Tank (Polypropylene Plating Tank) is a specialized chemical-resistant container designed for electroplating or chemical treatment processes. It’s widely used in industries like electronics, automotive, jewelry, surface finishing, and wastewater treatment due to its superior chemical resistance, heat tolerance, and structural stability.
| Property | Benefit |
|---|---|
| Chemical resistance | Withstands acids, alkalis, and most solvents used in plating (e.g., H₂SO₄, HCl, NaOH). |
| Heat resistance | Operates at temperatures up to ~100–110°C. |
| Non-conductive | Excellent for electroplating—safe and stable. |
| Durable and lightweight | Easier to handle than metal tanks, resistant to corrosion and impact. |
| Cost-effective | Long-lasting and affordable compared to stainless steel or lined tanks. |
Electroplating (nickel, copper, chrome, zinc, gold, etc.)
Anodizing
Chemical etching
Cleaning/rinsing tanks
Wastewater treatment
Pickling tanks
Material: PP homopolymer or copolymer sheets, usually 8mm–25mm thick
Shape: Rectangular or cylindrical (rectangular more common in plating lines)
Reinforcement: External steel frame (painted or PP-coated) for structural support (especially for larger tanks)
Welding: Hot gas welding or extrusion welding for leak-proof joints
Drainage & fittings:
Inlet/outlet nozzles (usually PP or PVC)
Overflow ports
Filter or circulation piping
Accessories:
Covers/lids
Cathode rod holders
Agitator mounts
Heaters or chillers (often PTFE-coated)
Design phase: Determine size, chemical use, and required reinforcements
Cut PP sheets to size (CNC or manual)
Weld components using hot air or extrusion welders
Install fittings, valves, drains as needed
Leak testing with water or air pressure
Add reinforcements, frames, or insulation (optional)
| Size (L × W × H mm) | Volume | Use Case |
|---|---|---|
| 1000 × 500 × 500 | 250L | Small-batch plating |
| 2000 × 1000 × 1000 | 2,000L | Medium to large-scale production |
| 3000 × 1500 × 1200 | 5,400L | High-capacity processing |
A PP Plastic Plating Tank (Polypropylene Plating Tank) is a specialized chemical-resistant container designed for electroplating or chemical treatment processes. It’s widely used in industries like electronics, automotive, jewelry, surface finishing, and wastewater treatment due to its superior chemical resistance, heat tolerance, and structural stability.
| Property | Benefit |
|---|---|
| Chemical resistance | Withstands acids, alkalis, and most solvents used in plating (e.g., H₂SO₄, HCl, NaOH). |
| Heat resistance | Operates at temperatures up to ~100–110°C. |
| Non-conductive | Excellent for electroplating—safe and stable. |
| Durable and lightweight | Easier to handle than metal tanks, resistant to corrosion and impact. |
| Cost-effective | Long-lasting and affordable compared to stainless steel or lined tanks. |
Electroplating (nickel, copper, chrome, zinc, gold, etc.)
Anodizing
Chemical etching
Cleaning/rinsing tanks
Wastewater treatment
Pickling tanks
Material: PP homopolymer or copolymer sheets, usually 8mm–25mm thick
Shape: Rectangular or cylindrical (rectangular more common in plating lines)
Reinforcement: External steel frame (painted or PP-coated) for structural support (especially for larger tanks)
Welding: Hot gas welding or extrusion welding for leak-proof joints
Drainage & fittings:
Inlet/outlet nozzles (usually PP or PVC)
Overflow ports
Filter or circulation piping
Accessories:
Covers/lids
Cathode rod holders
Agitator mounts
Heaters or chillers (often PTFE-coated)
Design phase: Determine size, chemical use, and required reinforcements
Cut PP sheets to size (CNC or manual)
Weld components using hot air or extrusion welders
Install fittings, valves, drains as needed
Leak testing with water or air pressure
Add reinforcements, frames, or insulation (optional)
| Size (L × W × H mm) | Volume | Use Case |
|---|---|---|
| 1000 × 500 × 500 | 250L | Small-batch plating |
| 2000 × 1000 × 1000 | 2,000L | Medium to large-scale production |
| 3000 × 1500 × 1200 | 5,400L | High-capacity processing |
