PP Activated Carbon Tower

The gas adsorption tower is also called the activated carbon adsorption device, which is mainly composed of an activated carbon layer and a support layer. Activated carbon has the characteristics of developed pores, large specific surface area, and high adsorption capacity.
  • XC-2


  • 4578764744

Activated carbon adsorption device is mainly composed of activated carbon,supporting layer.It has developed voids, large specific surface area and high adsorption capacity.Dust gas powered by fan, positive pressure or negative pressure get into the tower body, due to the unbalance and unsaturated molecular attraction or chemistry bond on the surface of the activated carbon,when  contact with gas the solid surface can attract a gas molecule to make them strong and keep them on the solid surface.Then the  pollutants are absorbed and get into filter system.

Performance advantages
High adsorption efficiency and large adsorption capacity.
Convenient maintenance.
Simple and safe operation.
Activated carbon sources are cheap.

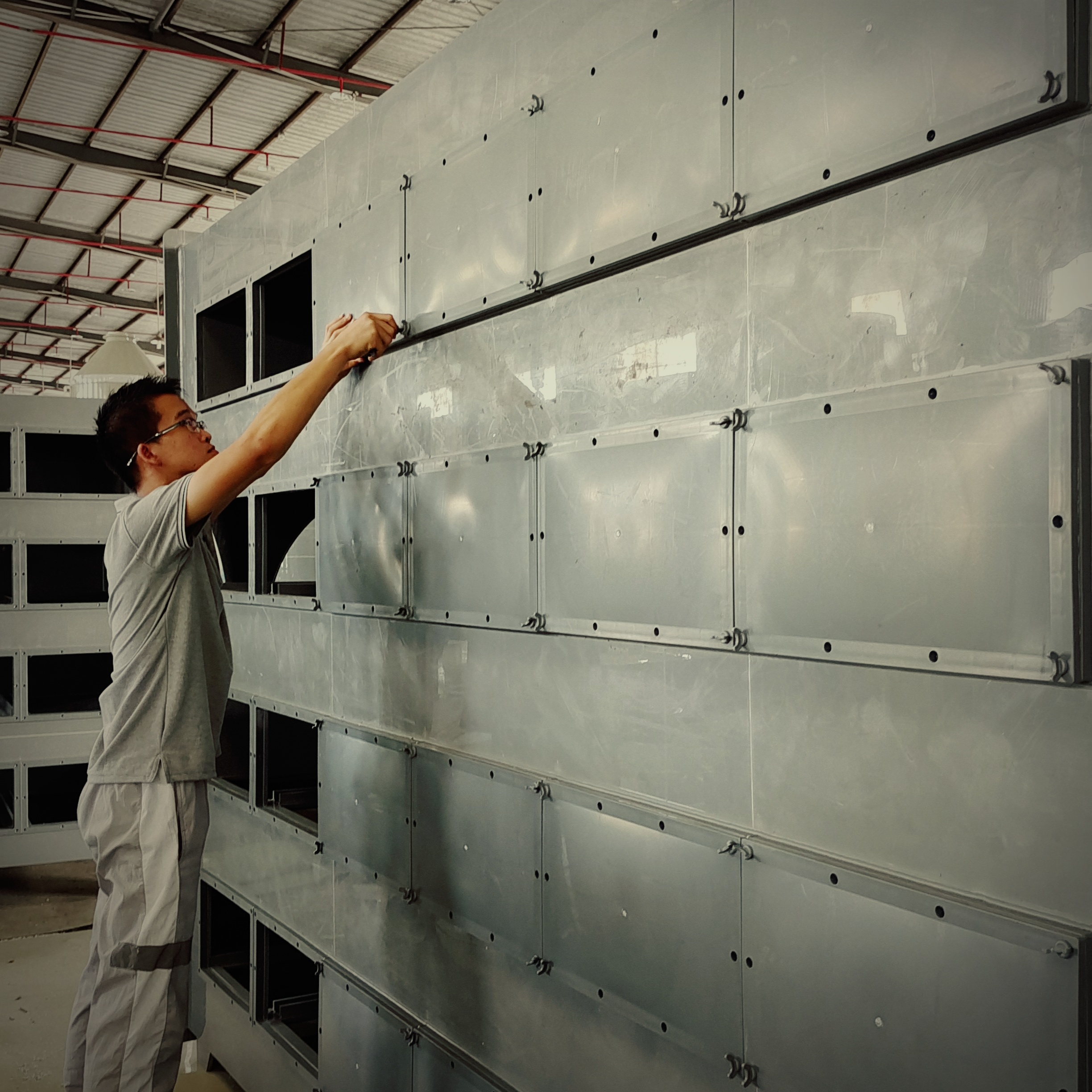

Assemble activated carbon

Table parameters

Activated carbon tower common specification size
   Air volume Specification With activated     carbon Thickness Through area
1500 1400*750*750 125kg 8mm 0.56 (M2)
3000 1500*1000*1000 200kg 8mm 1(M2)
4000 1700*1500*1000 275kg 8mm 1.5 (M2)
5000 1700*1500*1125 300kg 10mm 1.69 (M2)
6000 1950*1500*1125 350kg 10mm 2.14 (M2)
8000 1950*1500*1500 475kg 10mm 2.85 (M2)
10000 2500*1500*1500 600kg 10mm 3.6 (M2)
12000 2700*1500*1500 700kg 10mm 4.2 (M2)
15000 2700*2000*1500 850kg 10mm 5.18 (M2)
18000 3000*2000*1500 1000kg 10mm 6.3 (M2)
20000 3200*2000*1500 1100kg 10mm 6.98(M2)

Activated carbon commonly used specifications are: cylindrical, diameter 4mm.



Form Name

If you are interested in our products, you can contact us for the best price.
