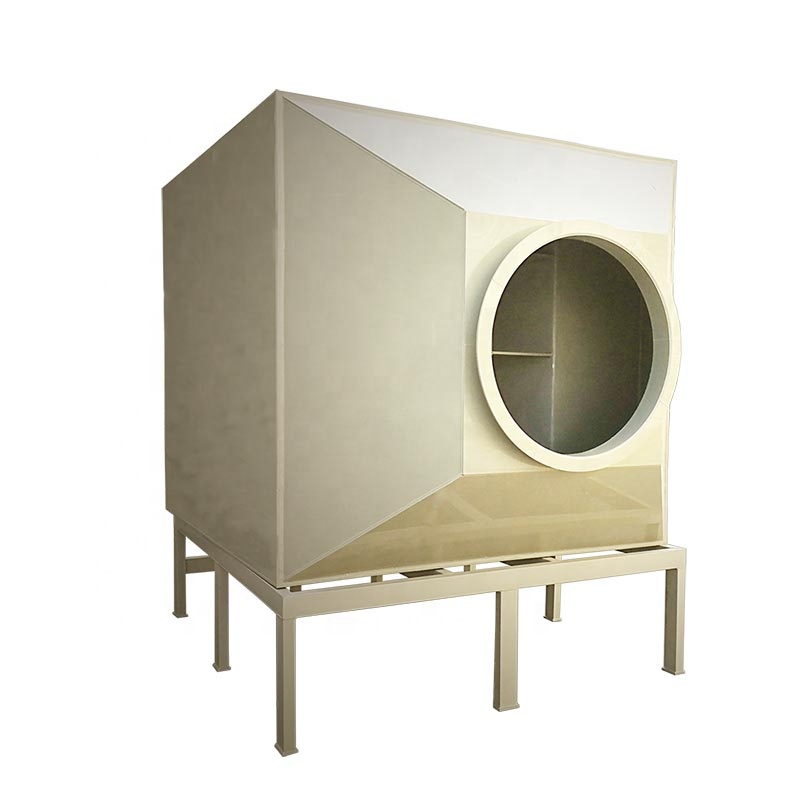

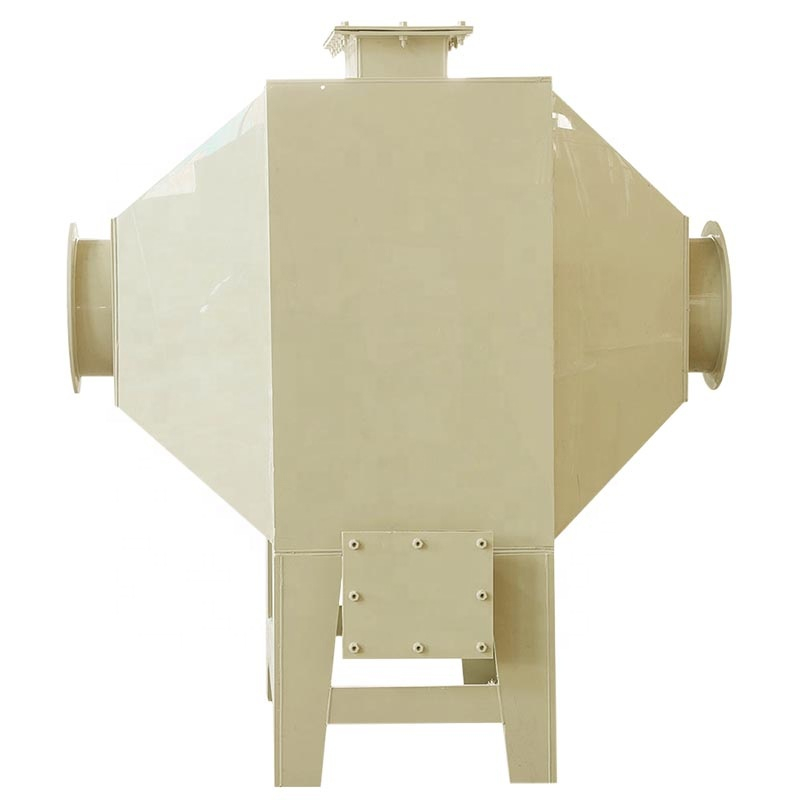

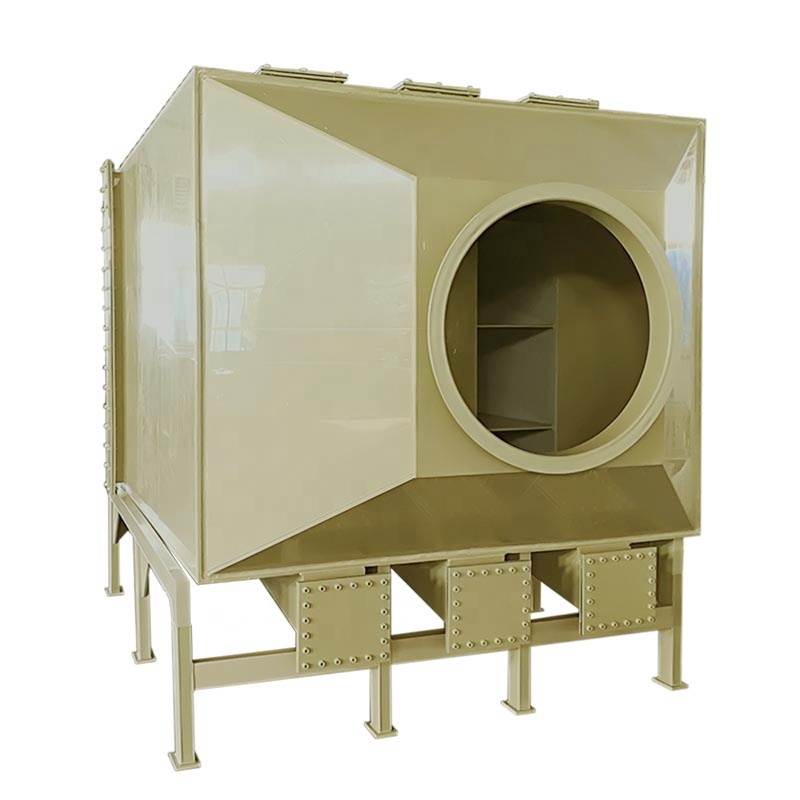

Odor Removing System Air Pollution Control System Wet Scrubber

The activated carbon adsorption tower is the best purification equipment for dealing with organic waste gas and odor treatment. Activated carbon adsorption is an effective way to remove the odor of water, natural and synthetic dissolved organic matter, micro polluting substances and so on. Most of the larger organic molecules, aromatic compounds can be firmly adsorbed on the surface or voids of the activated carbon,The results showed that humus, synthetic organic matter and low molecular weight organic matter could be removed effectively .Adsorption of activated carbon as the depth of purification process, often used in the last stage of waste water treatment, but also can be used for producing long water, purified water of life. When the dust particles and more, activated carbon adsorption device can simultaneously and water curtain machine and water spray tower and UV plasma used together to discharge waste gas purification.
Color:
Size:
Material:
Availability:
Quantity:
  • XC-02

  • XICHENG

  • 8421392990

activated carbon absorption system




The activated carbon adsorption tower is the best purification equipment for dealing with organic waste gas and odor treatment. Activated carbon adsorption is an effective way to remove the odor of water, natural and synthetic dissolved organic matter, micro polluting substances and so on. Most of the larger organic molecules, aromatic compounds can be firmly adsorbed on the surface or voids of the activated carbon,The results showed that humus, synthetic organic matter and low molecular weight organic matter could be removed effectively .Adsorption of activated carbon as the depth of purification process, often used in the last stage of waste water treatment, but also can be used for producing long water, purified water of life. When the dust particles and more, activated carbon adsorption device can simultaneously and water curtain machine and water spray tower and UV plasma used together to discharge waste gas purification.



Activated carbon tower common specification size
  Air volume Specification

With activated carbon

Thickness Through area
1500 1400*750*750 125kg 8mm 0.56 (M2)
3000 1500*1000*1000 200kg 8mm 1(M2)
4000 1700*1500*1000 275kg 8mm 1.5 (M2)
5000 1700*1500*1125 300kg 10mm 1.69 (M2)
6000 1950*1500*1125 350kg 10mm 2.14 (M2)
8000 1950*1500*1500 475kg 10mm 2.85 (M2)
10000 2500*1500*1500 600kg 10mm 3.6 (M2)
12000 2700*1500*1500 700kg 10mm 4.2 (M2)
15000 2700*2000*1500 850kg 10mm 5.18 (M2)
18000 3000*2000*1500 1000kg 10mm 6.3 (M2)
20000 3200*2000*1500 1100kg 10mm 6.98(M2)
Activated carbon commonly used specifications are: cylindrical, diameter 4mm.







1. the utility model has the advantages of simple structure.
2. low energy consumption and high purification efficiency.
3. It Can effectively remove HCL, HF, NH3, H2SO4, CrO3, HCN, NAOH, H2S, HCHO and other water-soluble gas effectively.

WORKING PRINCIPLE:

Activated carbon adsorption equipment, mainly to remove organic waste gas (VOC) and odor in the exhaust gas. It has a good adsorption effect on organic waste gas and odor, and the treatment efficiency is over 80%.







FAQ


1. Are you a factory?
--- Yes, we are a professional exhaust gas treatment manufacturer for more than 15 years.
2.How do you check the goods?
--- We inspect all the materials when they arrive, and have sot inspection during production process. All goods will be tested and double inspected before delivery, providing 100% guarantee for clients.
3. How to select the suitable models?
---The parameters above is just for your reference. We need you to provide us the air flow, solvent composition, working hours,etc for our team to design the suitable unit for you.
4.How and when can I get the quotation?
--- Send us the inquiry or leave us message. We will get back to you within 5 minutes during the working time. All messages will be replied whenever they comes.
5.What's your payment terms?
--- Usually we accept 100%T/T at present. 50% initial payment,down payment before shipment. Other payment terms can be discussed when order confirmed.
6.Where is your factory Located? How can I visit there?
--- We located in Shengtaian industrial park B,Loucun,Baoan district,Shenzhen, Guangdong Province

7.Do you provide OEM service?
--- Yes! We provide OEM & ODM service.
8.What's the lead time for your goods?
--- Normally 25 workdays. For some special parts, the delivery date will be discussed in detail
