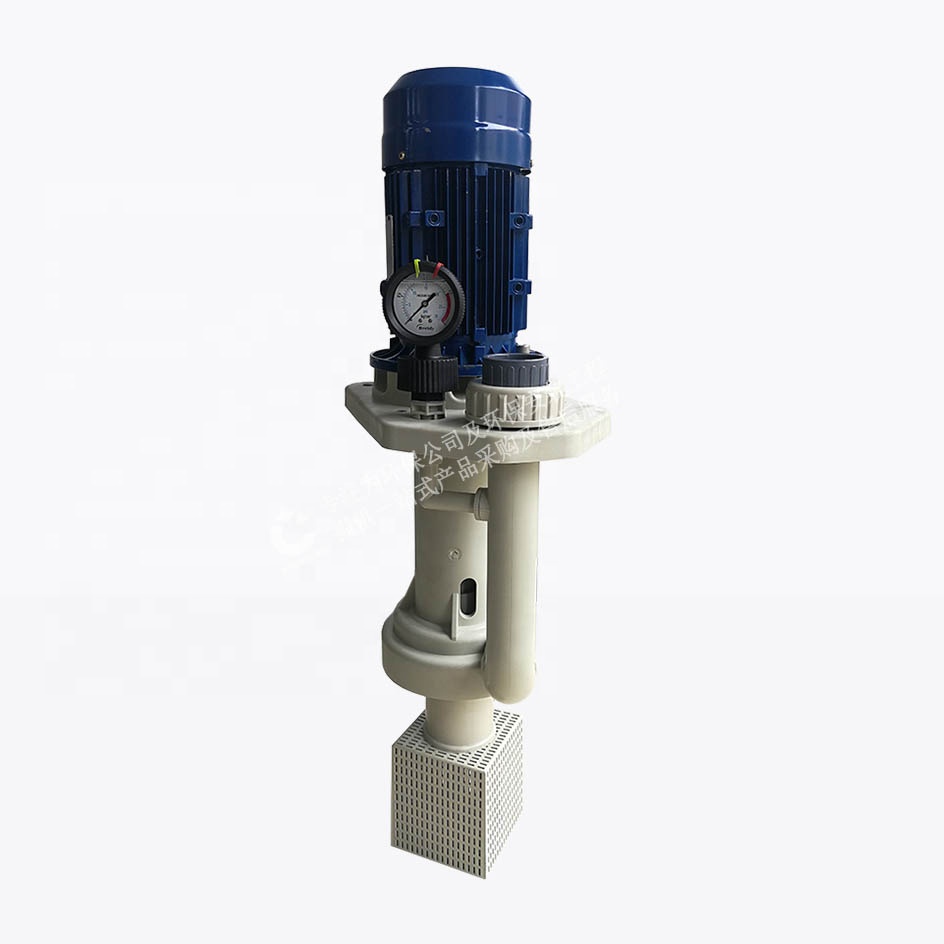

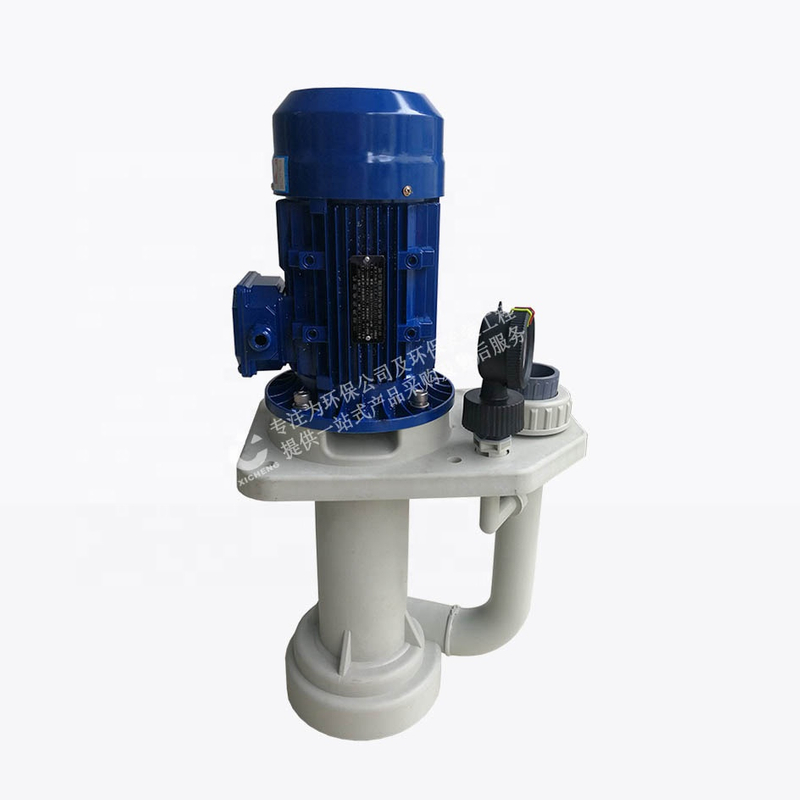

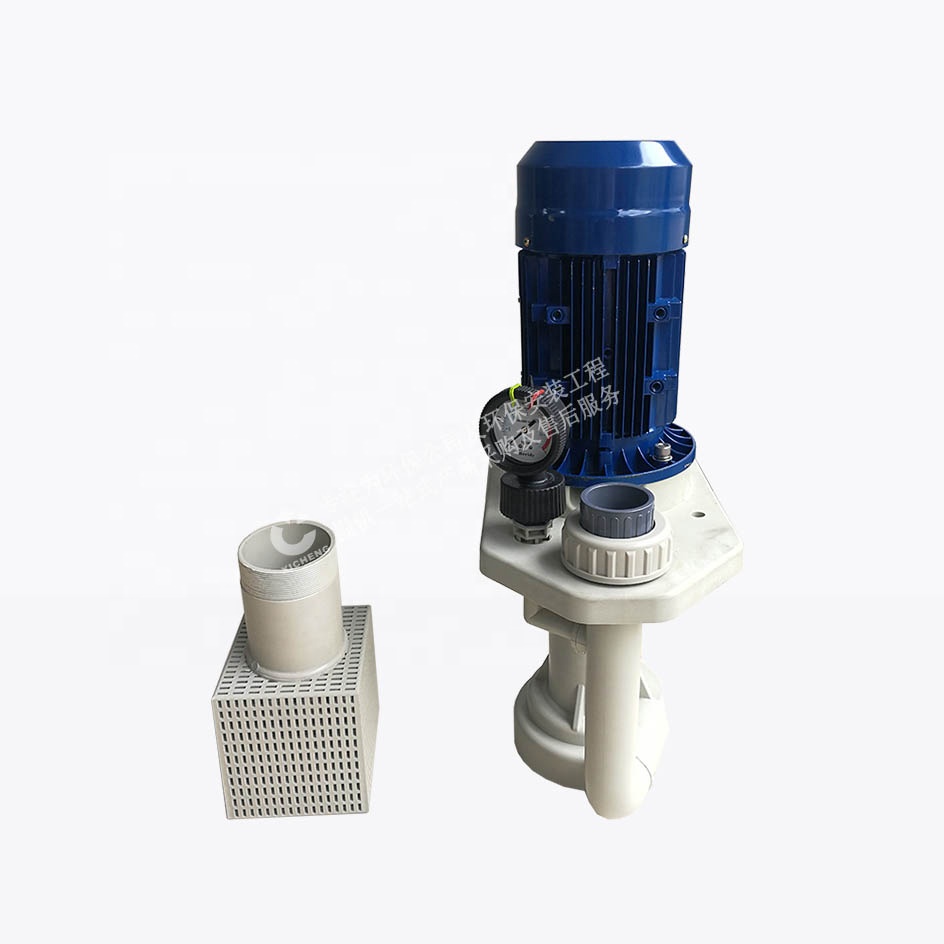

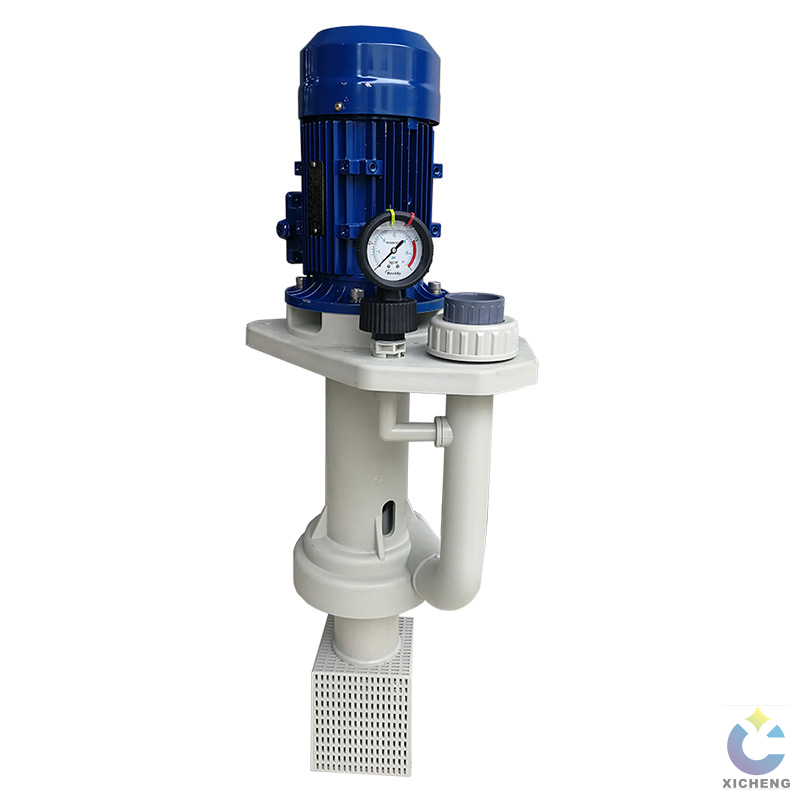

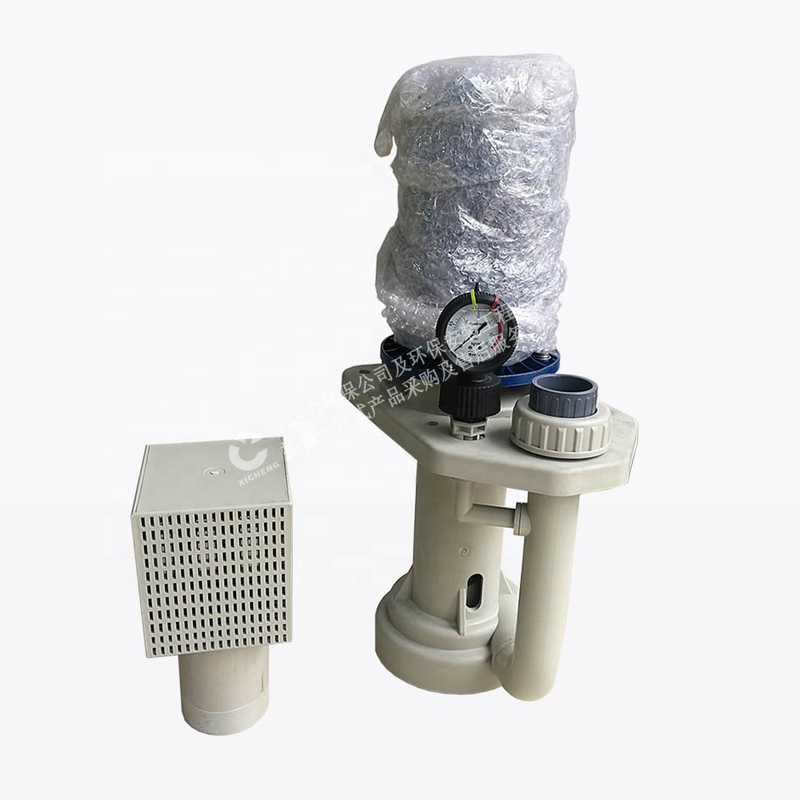

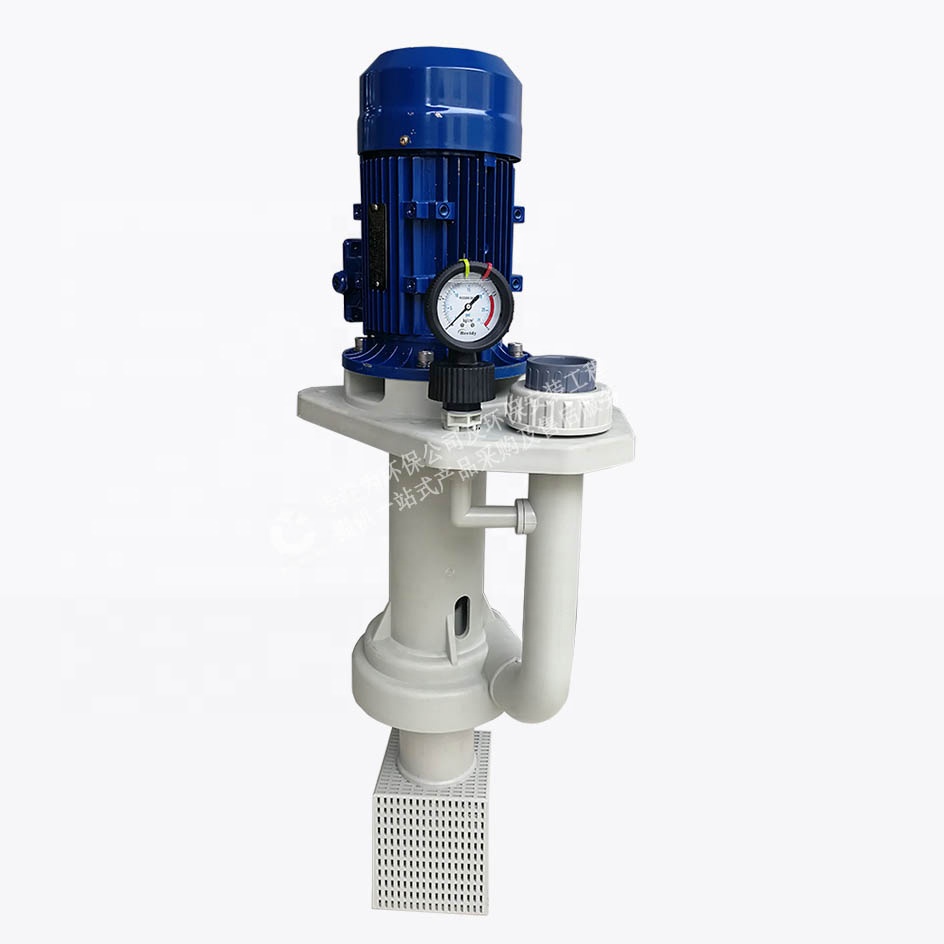

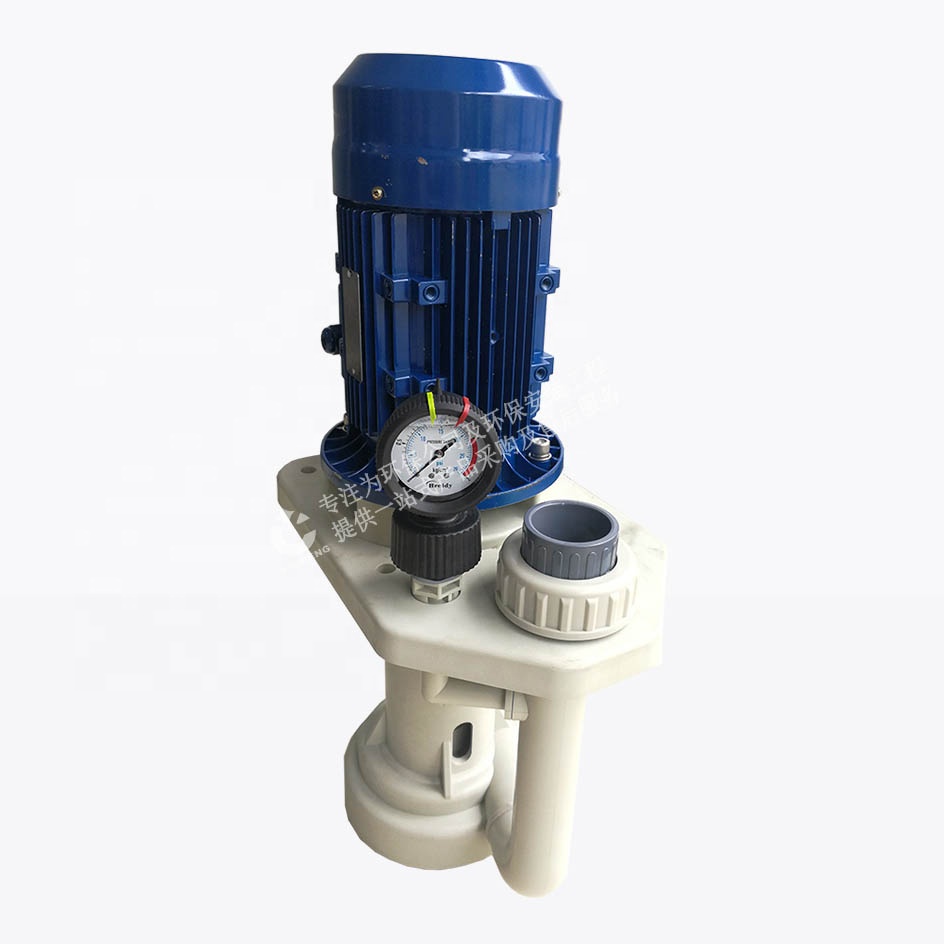

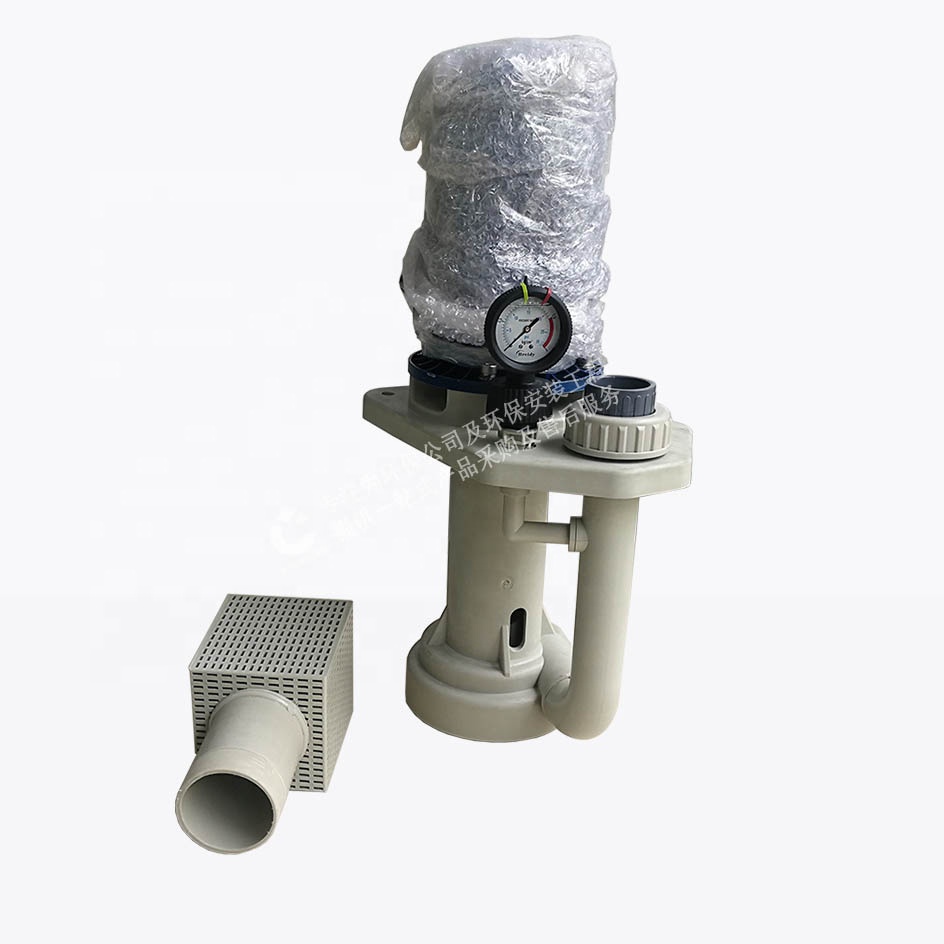

New Type Electric Water Pump for Wet Scrubber

The pump body is made of PP material, which has the characteristics of corrosion resistance and aging resistance
Availability:
Quantity:
  • XC-04

  • XICHENG

  • 8413709990

turbine pump


1. The pump body is made of PP material, which has the characteristics of corrosion resistance and aging resistance.

2. Use a dry liquid seal (1~10HP):To ensure that motors and bearings are protected from chemical gas corrosion and that the service life of the motor and pump is prolonged.

3.  It is suitable for use in jet washing equipment, exhaust scrubber, cooling cycle and matching filter. The pump can be used without water and will not be damaged.

4. Innovative use of PP material for the motor is connected with the base, compared with the traditional motor bracket can greatly reduce the acid gas corrosion, and body weight.

288a5ffcff68f9141896c7560be49cd.jpg--2.jpg--3.jpg3cb490aa3b93a044053d079eb86b72d.jpg0fd4430c5e812e020e57f7bf722cc03.jpg2117aabcf1f77bd3a074c0cf59aec84.jpg8dd63530fb386d0b1c7f2eb942a4125.jpg

PARAMETERS

Water pump

NO. Flow Pumping height Capacity
1 15m³/h 8m 0.75KW
2 18m³/h 8m 1.1KW
3 21m³/h 9m 1.5KW
4 32m³/h 9m 2.2KW
5 45m³/h 10m 3.0KW
6 60m³/h 10m 4.0KW
7 75m³/h 12m 5.5KW
8 90m³/h 12m 7.5KW
