Laboratory Fume Hood -laboratory Equipment

China Xicheng laboratory fume hood manufacturers provide you with brand PP fume hoods, all-steel fume hoods, and physical and chemical board fume hoods. Provide professional laboratory design solutions, laboratory equipment production and processing. Convenient modular assembly technology, simple operation.
Material:
Size:
Price:
Quantity:
  • XC-23
  • XICHENG
  • 8421399091

The PP laboratory fume hood has strong acid, alkali and corrosion resistance. The joints are mainly formed by heat welding with PP welding rods, and the assembly parts are fixed with PP screws. The cost is lower than that of the all-steel fume hood, which is the mainstream laboratory equipment.

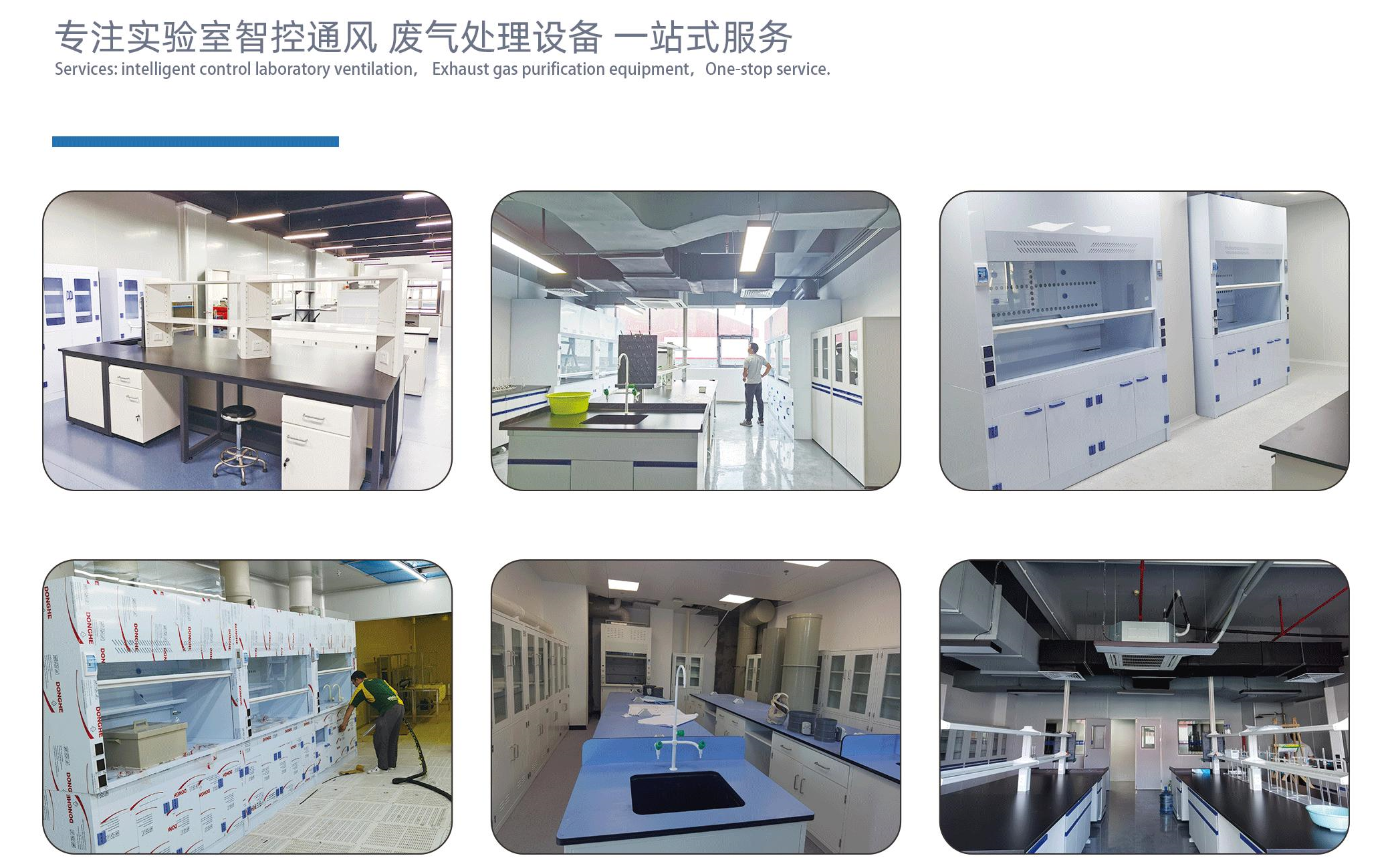

Laboratory equipment case diagram

PP fume hood application range


The PP leaching cabinet is mainly due to the relatively high environment and dust-free interior, because the PP material has excellent acid and alkali resistance, and the all-steel leaching cabinet requires that the appearance of the acid and alkali resistance can be used in the acid and alkali test of growth strength. High-intensity acid-base experiments can be used to purify indoor and other high-end places.


PP fume hood material description

Cabinet

1. Cabinet body: made of imported porcelain PP with a thickness of 8-12mm (inclusive), sore-resistant and white.

2. Design of the plenum cabinet: The exhaust cabinet adopts top-shield exhaust, and is designed with 1 ∮250mm air outlet. The flow plate is made of homogeneous PP material, and the acid-resistant back can withstand it.

3. Small cabinet: storage cabinet with a partition in the middle.

4. The operating table is made of imported 1mm PP, and the acidity free board can be provided. According to user requirements, the leaching surface is equipped with a water-resistant tank.

5. Regulating door:

  • Adjustable door glass: It is made of 4mm thick transparent acrylic glass, which is acid-resistant and incapable.

  • Adjust the door frame: It is a thick porcelain white PP board with c-shaped grooves, embedded and combined to ensure safety and durability.

  • Adjustable door suspension steel cable: each fume hood is connected by adjusting door steel cable.

  • Adjust the door balance weight: adopt stepless weight box, its up and down stroke can avoid walking and avoid shaking.

6. Electrical equipment:

  • Switch: The switch button is self-locking with light, with washing machine, lighting switch, and main power switch.

  • Lighting equipment: adopt full-cover three-proof lamps with 220v*20w*2 inside the lampshade

  • Perforated part: Each fume hood is equipped with two 20A20V10A power sockets with anti-surge cover.


Products Description

item
value
General Use
Commercial Furniture
Type
Laboratory Furniture
Mail packing
N
Application
Hospital, School, Other, laboratory
Design Style
Traditional
Material
Polypropylene
Place of Origin
China

Guangdong
Brand Name
xicheng
Model Number
xc-23
Product name
Laboratory fume hood
Function
Lab Experimental Operation
Size
2.35*0.8*1.2m
Color
white
Area wind speed
0.3-0.5m/s
Door height
85mm
Materail
Popypropylene


Form Name

If you are interested in our products, you can contact us for the best price.
