XC-02
XICHENG
8421392990
Principles of operation

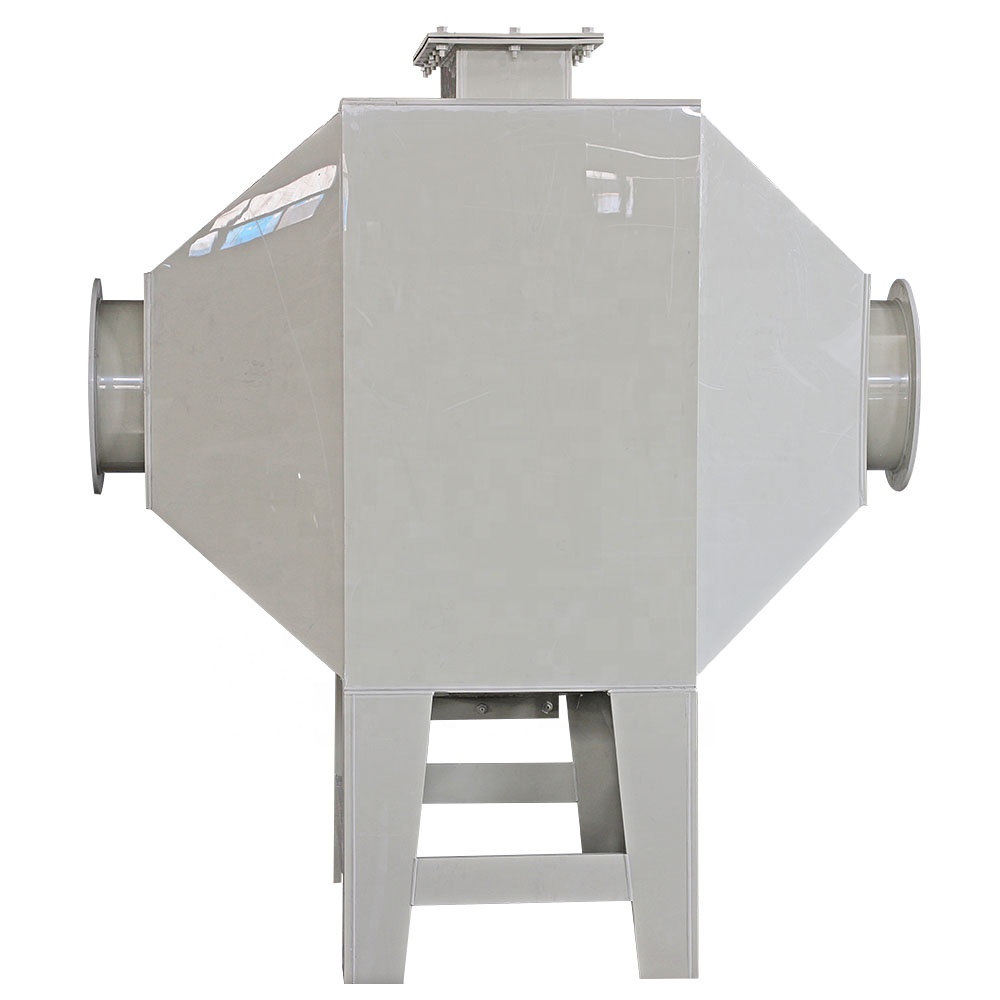

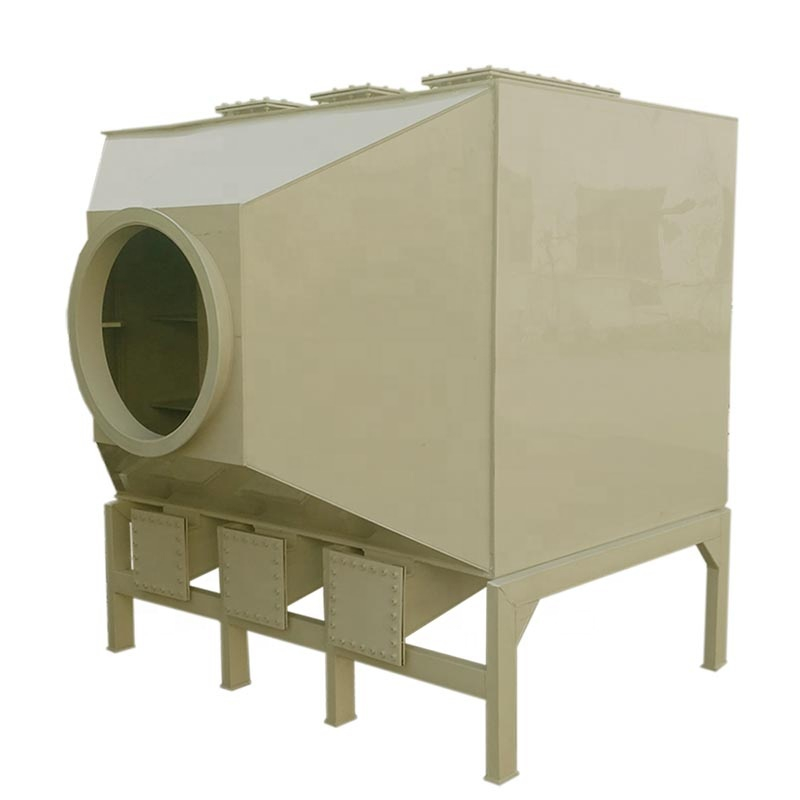

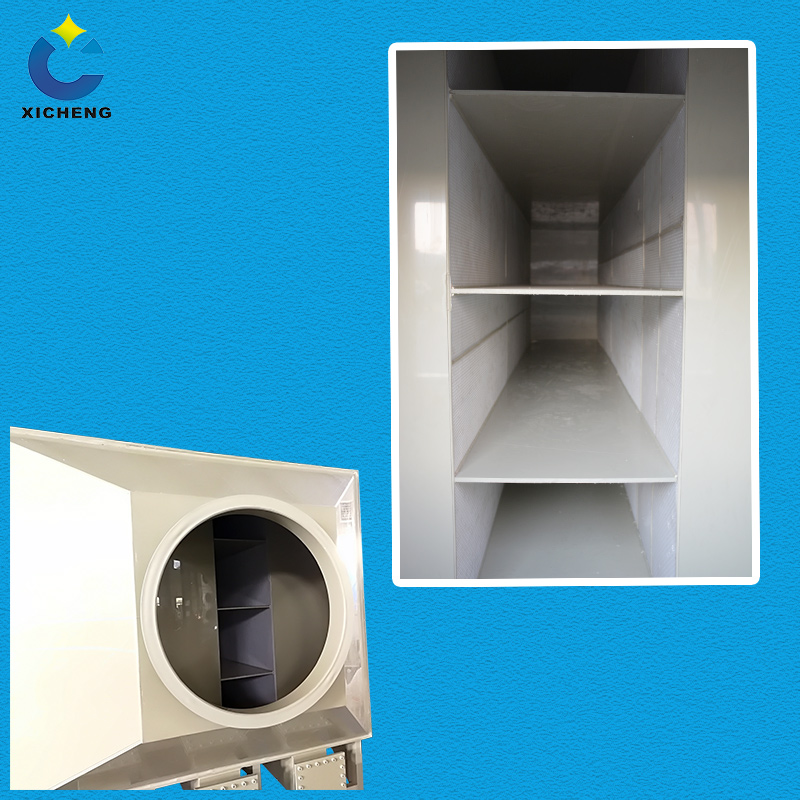

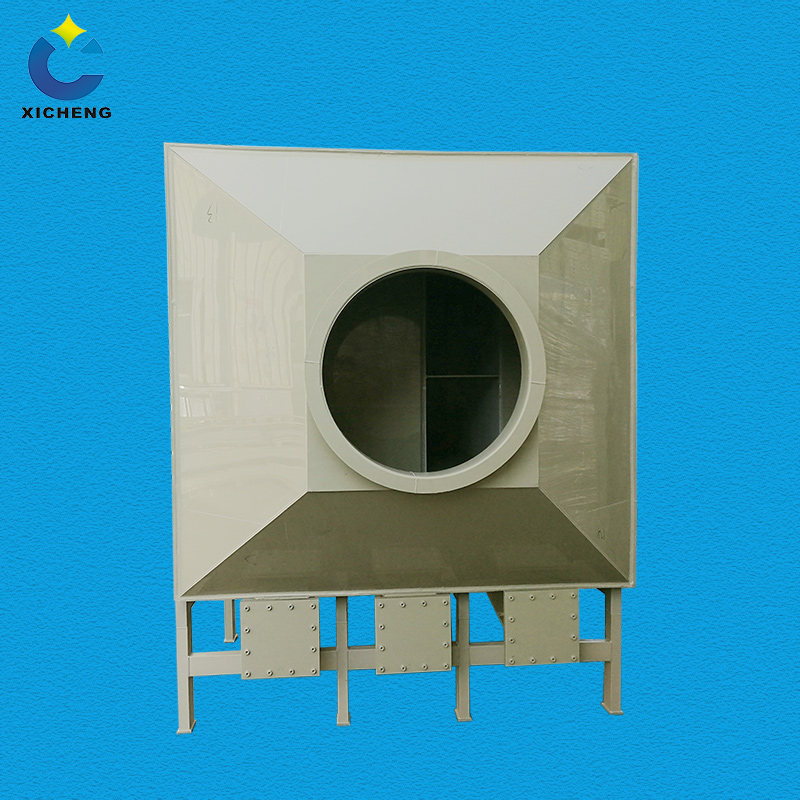

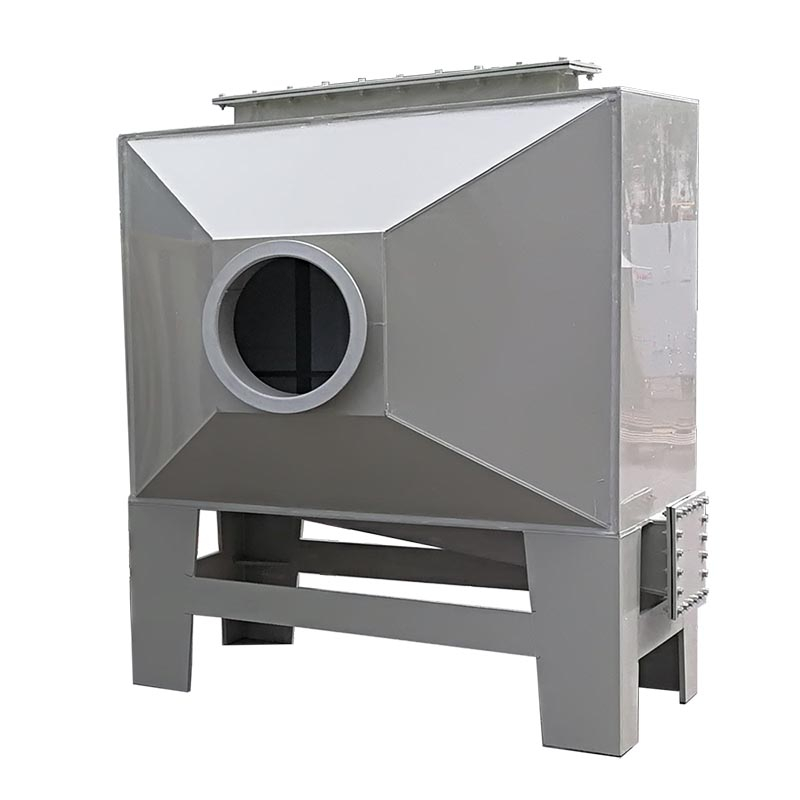

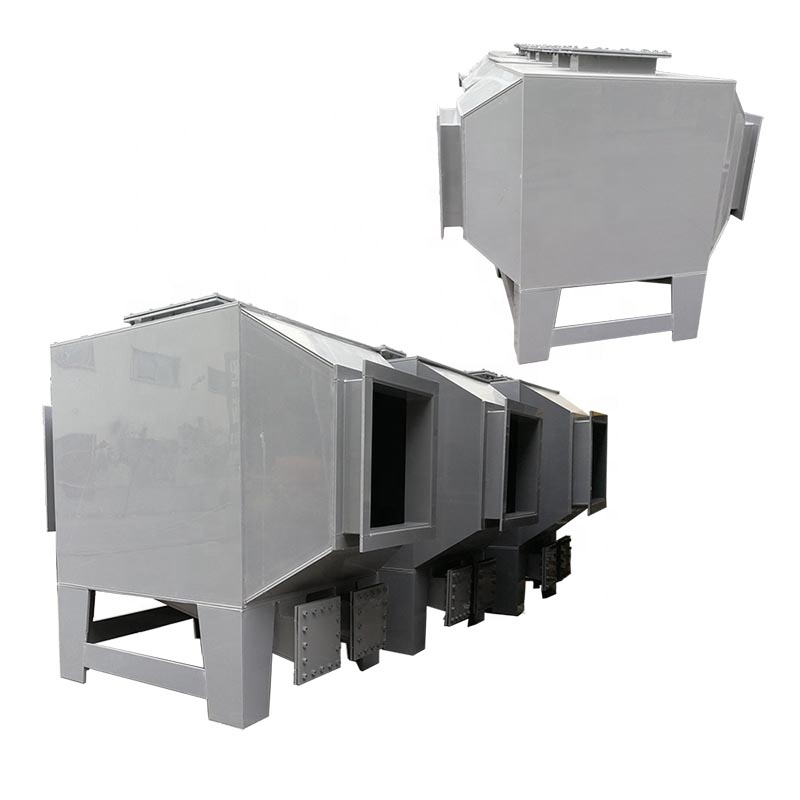

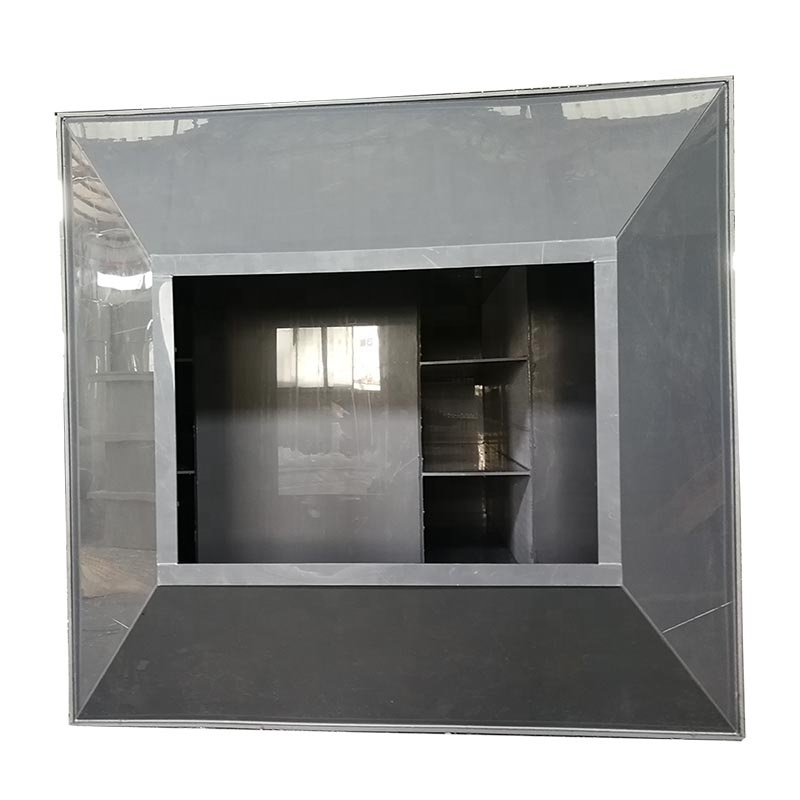

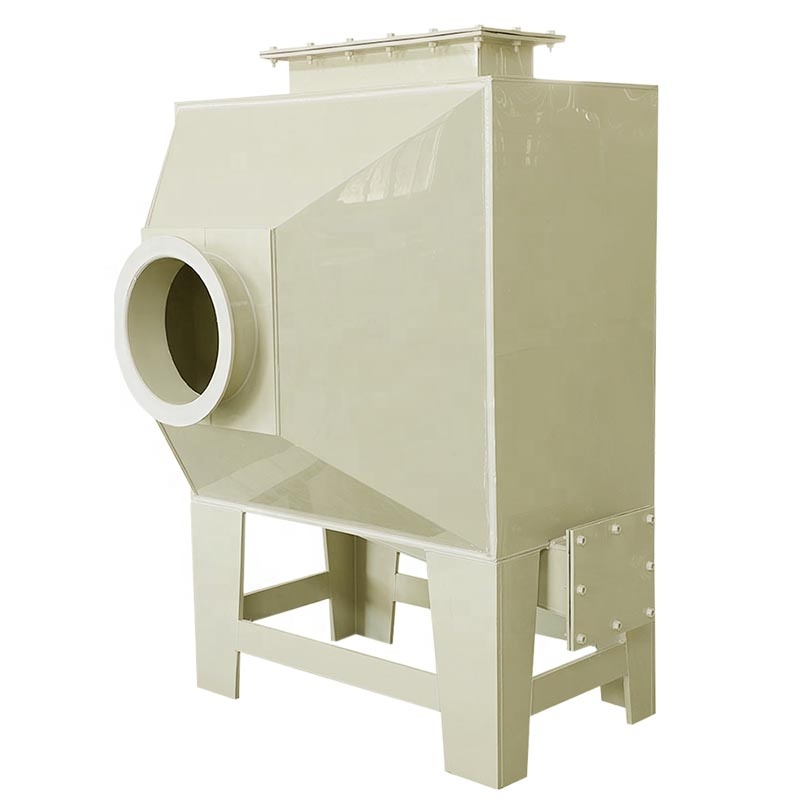

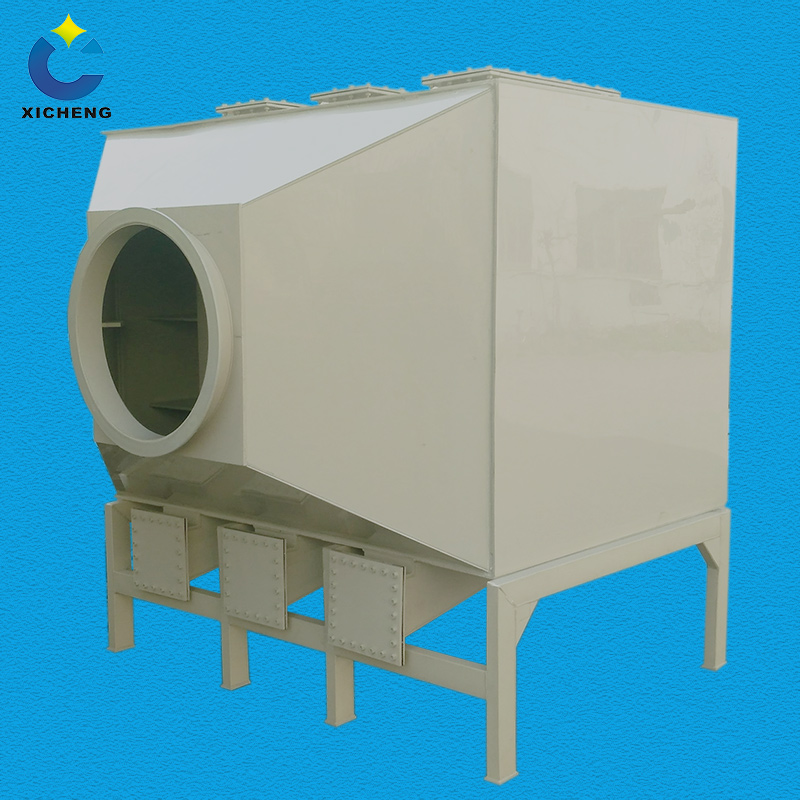

Activated carbon adsorption device is mainly composed of activated carbon layer and supporting layer.
Activated carbon has developed voids, large specific surface area and high adsorption capacity.
Dust gas powered by fan, positive pressure or negative pressure get into the tower body,
due to the unbalance and unsaturated molecular attraction or chemistry bond on the surface of the activated carbon, when contact with gas the solid surface can attract a gas molecule to make them strong and keep them on the solid surface.Then the pollutants are absorbed and get into filter system.
Performance advantages
High adsorption efficiency and large adsorption capacity.
Convenient maintenance.
Simple and safe operation.
Industrial desulfurization precipitator performance characteristics:
(1) physical properties: industrial desulfurization precipitator is particularly stable in water, in the water 14h water absorption rate of only 0.01%. Molecular weight of about 8 to 15 million between the good shape.
(2) mechanical properties: industrial desulfurization precipitator of high crystallinity, structured, and thus has excellent mechanical properties, its strength and hardness, elasticity than high-density PE (HDPE) high. (7 × 10 ^ 7) times of opening and closing of bending bending without damage marks, dry friction coefficient and nylon similarity.
(3) thermal properties: industrial desulfurization precipitator has good heat resistance, melting point of 164 ~ 170 ℃, the product can be above 100 ℃ temperature sterilization. In the role of external force, 150 ℃ is not deformed. Brittle into -35 ℃, below -35 ℃ will occur embrittlement, heat resistance than PE.
(4) chemical stability: industrial desulfurization precipitator has good chemical stability, in addition to being concentrated sulfuric acid, concentrated nitric acid erosion, the other various chemical reagents are relatively stable, but low molecular weight aliphatic hydrocarbons, aromatic hydrocarbons can make PP softening and swelling, chemical stability with the increase of crystallinity also increased. Therefore, PP for the production of chemical pipes and fittings in Russia, anti-corrosion effect is good.
(5) Electrical properties: industrial desulfurization precipitator high-frequency insulation performance, because it is almost non-absorbent, so the insulation properties from humidity, a higher dielectric constant, and with the temperature rise, can be used to produce heat Of the electrical insulation products, the breakdown voltage is also high, suitable for electrical accessories.
(6) Weatherability: industrial desulfurization precipitator is very sensitive to ultraviolet radiation, adding zinc oxide thiopropionic acid lauryl resin, carbon black similar cream filler can improve its anti-aging properties.
| Activated carbon tower common specification size | ||||
| Air volume | Specification | With activated carbon | Thickness | Through area |
| 1500 | 1400*750*750 | 125kg | 8mm | 0.56 (M2) |
| 3000 | 1500*1000*1000 | 200kg | 8mm | 1(M2) |
| 4000 | 1700*1500*1000 | 275kg | 8mm | 1.5 (M2) |
| 5000 | 1700*1500*1125 | 300kg | 10mm | 1.69 (M2) |
| 6000 | 1950*1500*1125 | 350kg | 10mm | 2.14 (M2) |
| 8000 | 1950*1500*1500 | 475kg | 10mm | 2.85 (M2) |
| 10000 | 2500*1500*1500 | 600kg | 10mm | 3.6 (M2) |
| Activated carbon commonly used specifications are: cylindrical, diameter 4mm. | ||||
PERSONALIZED CUSTOMIZATION
The products can be customized according to customers' requirments and drawings.
INSTALLATION
Our company can send professional engineers to guide device installation and provide a professional plan.
AFTER SERVICE
Our equipment will have a one-year life of quality assurance, repair and replacement are guranteed.
1. Q. Are you a trading company or manufacture?
A: We are manufacture; we have our professional manufacturing teams and technicians
2. Q. How long is the warranty of your equipment?
A: One year warranty, in the meanwhile, quality inspection before delivery; during the warranty period, we can replace the damaged consumables for free, after the warranty period, we have a good price for consumables for our customers.
3. Q: Do you have technical support?
A: Our Company is responsible for installation and debugging of equipment, meanwhile, responsible for the technology and operation training for user operator.
4. Q: Is overseas after-sales service available?
A: Yes, and after installation we will teach you basic operation and maintenance method.
5. Q: May I customize my own equipment?
A: Yes, please inform us your needs in details and we will design the facility per your data.
