Industrial odor control system- activated carbon adsorption tower

Views: 7     Author: China xicheng     Publish Time: 2020-08-17      Origin: Shenzhen XIcheng Environmental Technology CO.,LTD.

Industrial odor control system- activated carbon adsorption tower

Activated carbon adsorption tower

The odor control system-- activated carbon adsorption tower  is the best purification equipment for dealing with organic waste gas and odor treatment. Activated carbon adsorption is an effective way to remove the odor of water, natural and synthetic dissolved organic matter, micro polluting substances and so on. Most of the larger organic molecules, aromatic compounds can be firmly adsorbed on the surface or voids of the activated carbon,The results showed that humus, synthetic organic matter and low molecular weight organic matter could be removed effectively .Adsorption of activated carbon as the depth of purification process, often used in the last stage of waste water treatment, but also can be used for producing long water, purified water of life. When the dust particles and more, activated carbon adsorption device can simultaneously and water curtain machine and water spray tower and UV plasma used together to discharge waste gas purification.

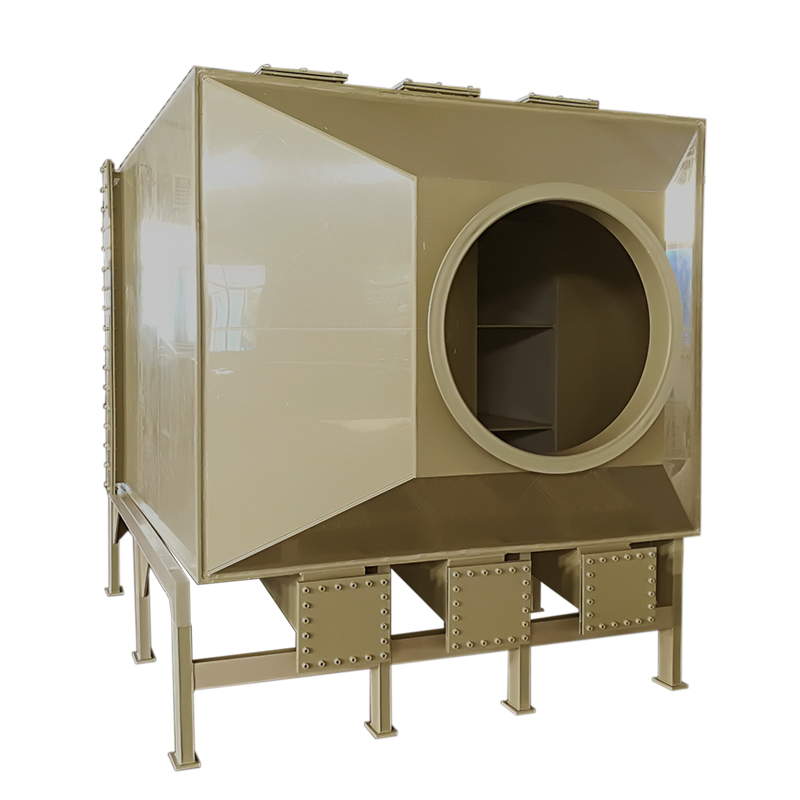

PP活性炭塔-主图-6

About our odor control system -- activated carbon tower

Activated carbon tower common specification size
   Air volume Specification With activated     carbon Thickness Through area
1500 1400*750*750 125kg 8mm 0.56 (M2)
3000 1500*1000*1000 200kg 8mm 1(M2)
4000 1700*1500*1000 275kg 8mm 1.5 (M2)
5000 1700*1500*1125 300kg 10mm 1.69 (M2)
6000 1950*1500*1125 350kg 10mm 2.14 (M2)
8000 1950*1500*1500 475kg 10mm 2.85 (M2)
10000 2500*1500*1500 600kg 10mm 3.6 (M2)
12000 2700*1500*1500 700kg 10mm 4.2 (M2)
15000 2700*2000*1500 850kg 10mm 5.18 (M2)
18000 3000*2000*1500 1000kg 10mm 6.3 (M2)
20000 3200*2000*1500 1100kg 10mm 6.98(M2)

Activated carbon commonly used specifications are: cylindrical, diameter 4mm.
