XC-01
XICHENG
8421399090
Exhaust gas treatment equipment - waste gas scrubber, spray tower, washing tower
1. Equipment introduction:
The washing tower is a new type of industrial waste gas treatment equipment, which is widely used in industrial waste gas and dust removal, acid and alkali waste gas, painting industry, printing industry, pharmaceutical industry and other fields, the most commonly used and most practical processing equipment.It can effectively process HCL, HF, NH3, H2SO4, CrO3, HCN, NAOH, H2S, HCHO, etc.Various industrial organic waste gases and inorganic waste gases.
2. Structure and working principle
The industrial waste gas enters the washing tower and is in full contact with the washing liquid in the tower to generate a neutralization reaction to achieve the treatment purification effect, effectively remove dust and other various gases, and finally meet the discharge requirements.
3.The equipment features:
1. Low noise, stable operation, simple operation, low cost, etc.
2. In addition to high dust efficiency, it can handle various gases by using syrup and water.
3. Using high-quality PP sheet, corrosion-resistant, anti-aging, long service life, and can be customized according to requirements;
4. Technical Parameter Table :
Air volume (M3/H) | Size (mm) | THK (mm) | Drain outlet (mm) | Water tank size(mm) | Inlet and outlet size (mm) | Pump (KW) | Wind resistance (Pa) |
3000 | 800 | 8 | DN32 | 600*700*H700 | 315 | 0.75 | 500 |
5000 | 1000 | 8 | DN40 | 600*800*H700 | 400 | 1.5 | 500 |
8000 | 1200 | 8 | DN40 | 600*1000*H700 | 500 | 2.2 | 500 |
10000 | 1500 | 10 | DN40 | 700*1000*H700 | 550 | 2.2 | 500 |
12000 | 1600 | 10 | DN50 | 700*1000*H700 | 600 | 3.75 | 500 |
15000 | 1800 | 10 | DN50 | 700*1200*H700 | 650 | 3.75 | 500 |
20000 | 2000 | 10 | DN50 | 700*1200*H700 | 750 | 5.5 | 500 |
25000 | 2200 | 10 | DN50 | 700*1200*H700 | 950 | 5.5 | 600 |
30000 | 2500 | 12 | DN65 | 700*1200*H700 | 1000 | 5.5 | 600 |
35000 | 2700 | 12 | DN65 | 1000*700*H700 | 1100 | 7.5 | 600 |
40000 | 2900 | 12 | DN65 | 1000*700*H700 | 1200 | 7.5 | 600 |
45000 | 3000 | 12 | DN65 | 1000*700*H700 | 1250 | 7.5 | 600 |
1.This form is a common size and we can customize different sizes and requirements according to your needs.
2.The material is polypropylene.
3.Equipment design wind speed 1.8m/s

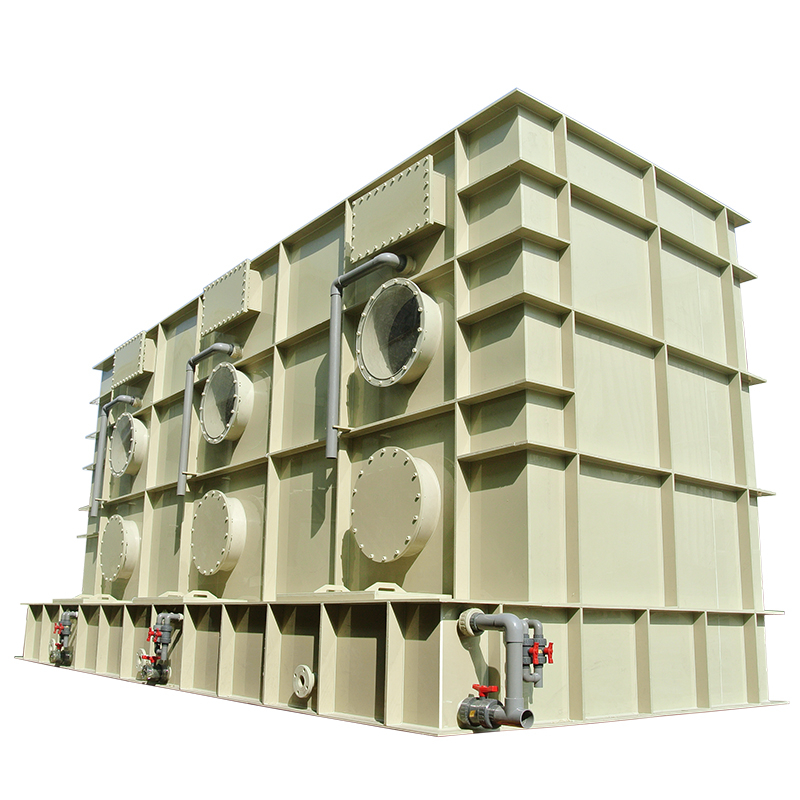

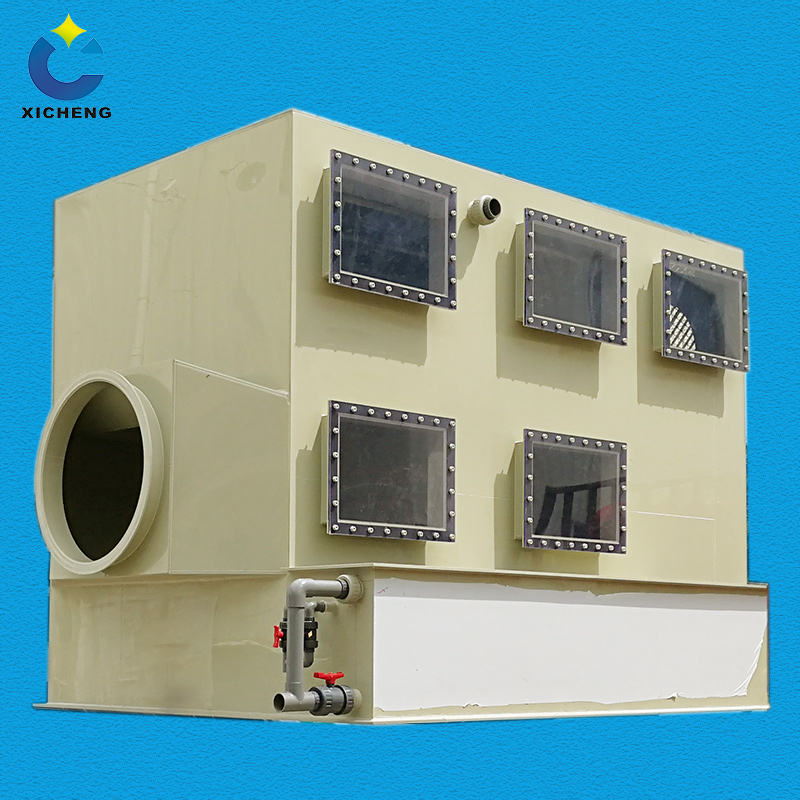

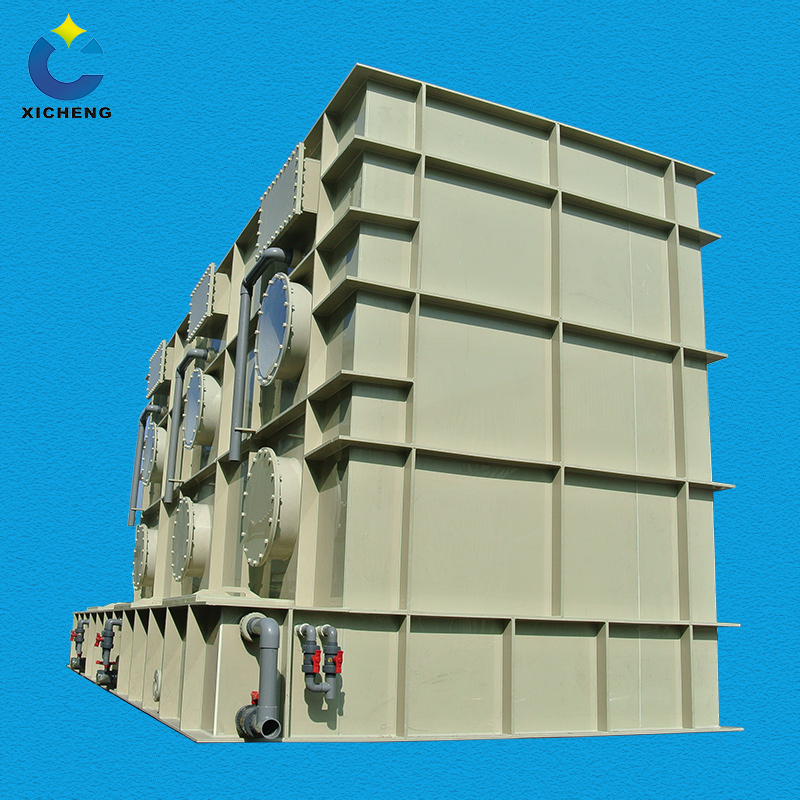

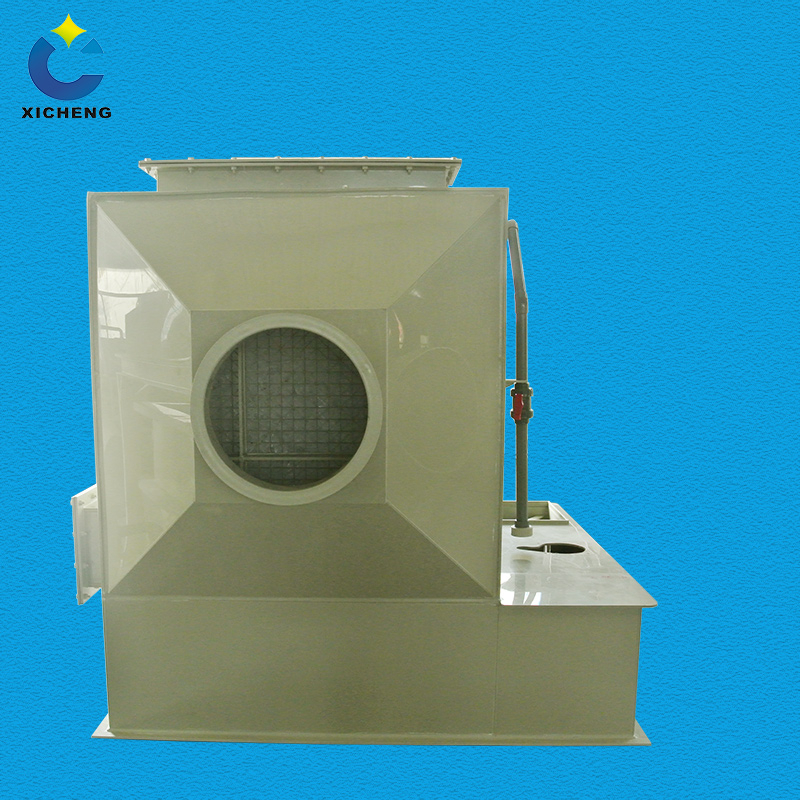

5. Equipment pictures:
Exhaust gas treatment equipment - waste gas scrubber, spray tower, washing tower
1. Equipment introduction:
The washing tower is a new type of industrial waste gas treatment equipment, which is widely used in industrial waste gas and dust removal, acid and alkali waste gas, painting industry, printing industry, pharmaceutical industry and other fields, the most commonly used and most practical processing equipment.It can effectively process HCL, HF, NH3, H2SO4, CrO3, HCN, NAOH, H2S, HCHO, etc.Various industrial organic waste gases and inorganic waste gases.
2. Structure and working principle
The industrial waste gas enters the washing tower and is in full contact with the washing liquid in the tower to generate a neutralization reaction to achieve the treatment purification effect, effectively remove dust and other various gases, and finally meet the discharge requirements.
3.The equipment features:
1. Low noise, stable operation, simple operation, low cost, etc.
2. In addition to high dust efficiency, it can handle various gases by using syrup and water.
3. Using high-quality PP sheet, corrosion-resistant, anti-aging, long service life, and can be customized according to requirements;
4. Technical Parameter Table :
Air volume (M3/H) | Size (mm) | THK (mm) | Drain outlet (mm) | Water tank size(mm) | Inlet and outlet size (mm) | Pump (KW) | Wind resistance (Pa) |
3000 | 800 | 8 | DN32 | 600*700*H700 | 315 | 0.75 | 500 |
5000 | 1000 | 8 | DN40 | 600*800*H700 | 400 | 1.5 | 500 |
8000 | 1200 | 8 | DN40 | 600*1000*H700 | 500 | 2.2 | 500 |
10000 | 1500 | 10 | DN40 | 700*1000*H700 | 550 | 2.2 | 500 |
12000 | 1600 | 10 | DN50 | 700*1000*H700 | 600 | 3.75 | 500 |
15000 | 1800 | 10 | DN50 | 700*1200*H700 | 650 | 3.75 | 500 |
20000 | 2000 | 10 | DN50 | 700*1200*H700 | 750 | 5.5 | 500 |
25000 | 2200 | 10 | DN50 | 700*1200*H700 | 950 | 5.5 | 600 |
30000 | 2500 | 12 | DN65 | 700*1200*H700 | 1000 | 5.5 | 600 |
35000 | 2700 | 12 | DN65 | 1000*700*H700 | 1100 | 7.5 | 600 |
40000 | 2900 | 12 | DN65 | 1000*700*H700 | 1200 | 7.5 | 600 |
45000 | 3000 | 12 | DN65 | 1000*700*H700 | 1250 | 7.5 | 600 |
1.This form is a common size and we can customize different sizes and requirements according to your needs.
2.The material is polypropylene.
3.Equipment design wind speed 1.8m/s
5. Equipment pictures:
