Industrial Smoker Adsorption System Active Carbon Adsorption Equipment

Activated carbon adsorption is mainly to remove organic waste gas (VOC), the odor of water, natural and synthetic dissolved organic matter, micro polluting substances and so on. Most of the larger organic molecules, aromatic compounds can be firmly adsorbed on the surface or voids of the activated carbon. The results showed that humus, synthetic organic matter and low molecular weight organic matter could be removed effectively . It has a good adsorption effect on organic waste gas and odor, and the treatment efficiency is over 80%.
Availability:
Quantity:
  • XC-02

  • XICHENG

  • 8421392990

Product Description


Principles of operation

Activated carbon adsorption device is mainly composed of activated carbon layer and supporting layer.

Activated carbon has developed voids, large specific surface area and high adsorption capacity.

Dust gas powered by fan, positive pressure or negative pressure get into the tower body,

due to the unbalance and unsaturated molecular attraction or chemistry bond on the surface of the activated carbon, when  contact with gas the solid surface can attract a gas molecule to make them strong and keep them on the solid surface.Then the  pollutants are absorbed and get into filter system.

Performance advantages

High adsorption efficiency and large adsorption capacity.

Convenient maintenance.

Simple and safe operation.

Industrial desulfurization precipitator performance characteristics:
      (1) physical properties: industrial desulfurization precipitator is particularly stable in water, in the water 14h water absorption rate of only 0.01%. Molecular weight of about 8 to 15 million between the good shape.
      (2) mechanical properties: industrial desulfurization precipitator of high crystallinity, structured, and thus has excellent mechanical properties, its strength and hardness, elasticity than high-density PE (HDPE) high. (7 × 10 ^ 7) times of opening and closing of bending bending without damage marks, dry friction coefficient and nylon similarity.
      (3) thermal properties: industrial desulfurization precipitator has good heat resistance, melting point of 164 ~ 170 ℃, the product can be above 100 ℃ temperature sterilization. In the role of external force, 150 ℃ is not deformed. Brittle into -35 ℃, below -35 ℃ will occur embrittlement, heat resistance than PE.
      (4) chemical stability: industrial desulfurization precipitator has good chemical stability, in addition to being concentrated sulfuric acid, concentrated nitric acid erosion, the other various chemical reagents are relatively stable, but low molecular weight aliphatic hydrocarbons, aromatic hydrocarbons can make PP softening and swelling, chemical stability with the increase of crystallinity also increased. Therefore, PP for the production of chemical pipes and fittings in Russia, anti-corrosion effect is good.
      (5) Electrical properties: industrial desulfurization precipitator high-frequency insulation performance, because it is almost non-absorbent, so the insulation properties from humidity, a higher dielectric constant, and with the temperature rise, can be used to produce heat Of the electrical insulation products, the breakdown voltage is also high, suitable for electrical accessories.

      (6) Weatherability: industrial desulfurization precipitator is very sensitive to ultraviolet radiation, adding zinc oxide thiopropionic acid lauryl resin, carbon black similar cream filler can improve its anti-aging properties.


Product parameters.
Activated carbon tower common specification size
Air volume Specification With activated     carbon Thickness Through area
1500 1400*750*750 125kg 8mm 0.56 (M2)
3000 1500*1000*1000 200kg 8mm 1(M2)
4000 1700*1500*1000 275kg 8mm 1.5 (M2)
5000 1700*1500*1125 300kg 10mm 1.69 (M2)
6000 1950*1500*1125 350kg 10mm 2.14 (M2)
8000 1950*1500*1500 475kg 10mm 2.85 (M2)
10000 2500*1500*1500 600kg 10mm 3.6 (M2)
Activated carbon commonly used specifications are: cylindrical, diameter 4mm.

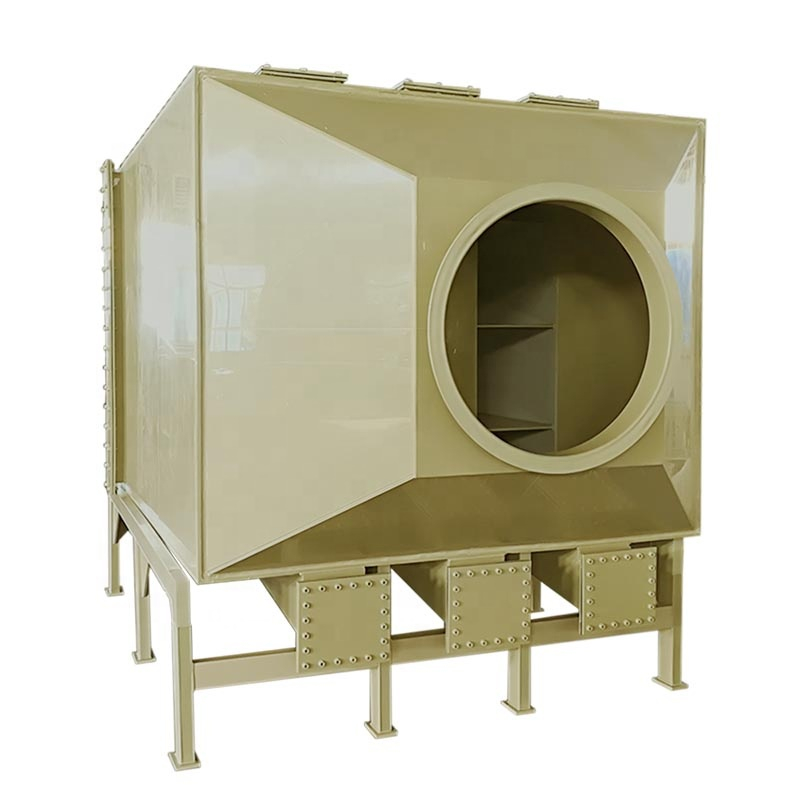

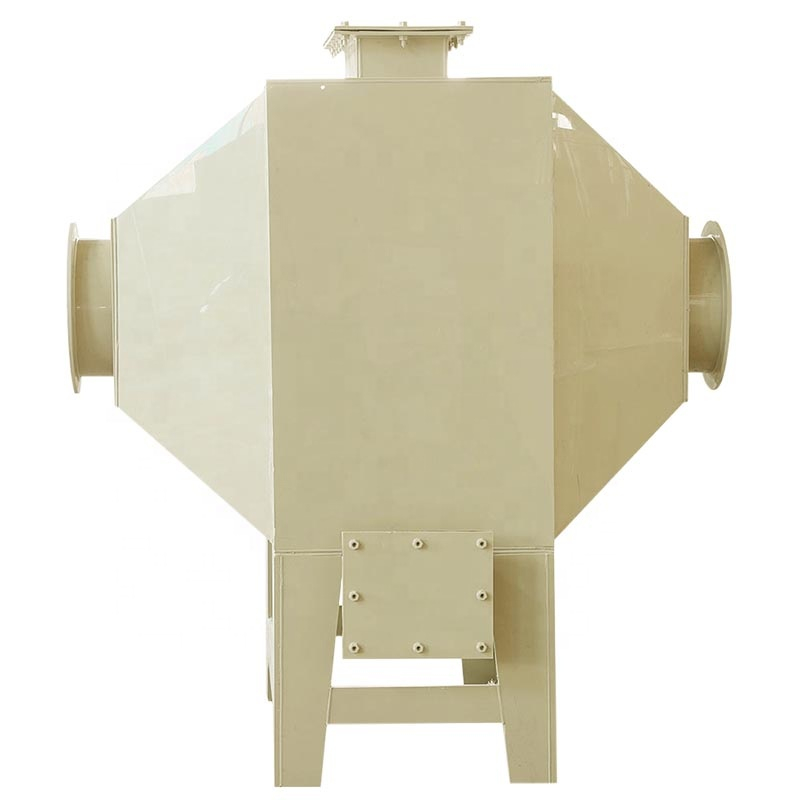

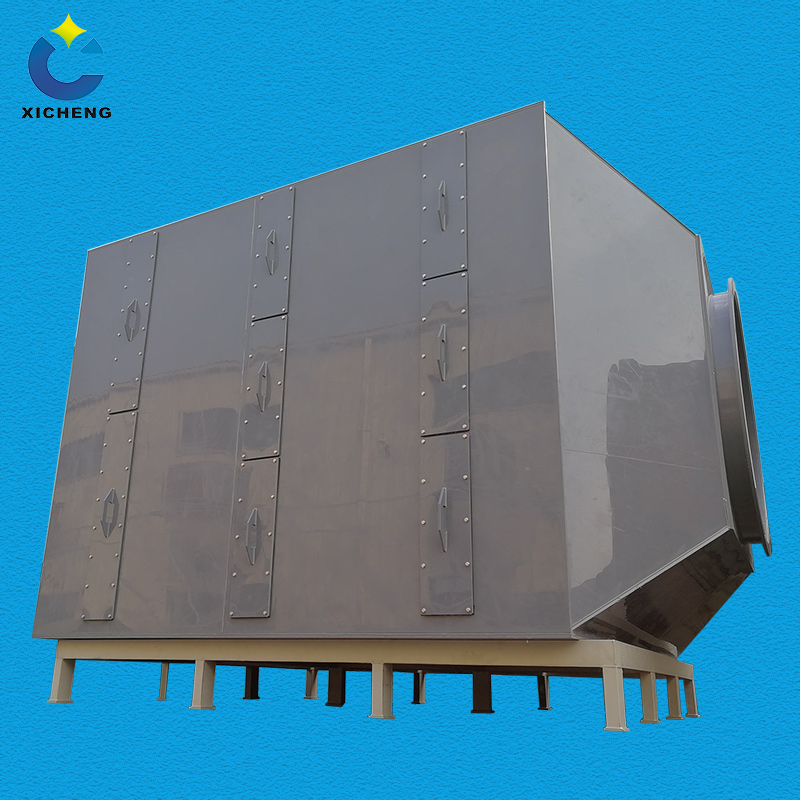

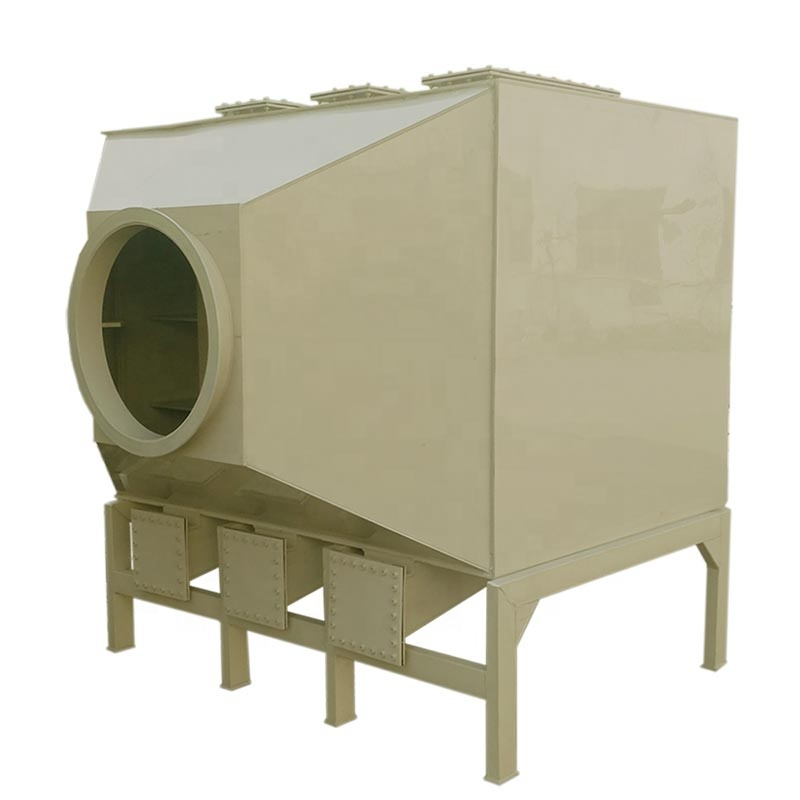

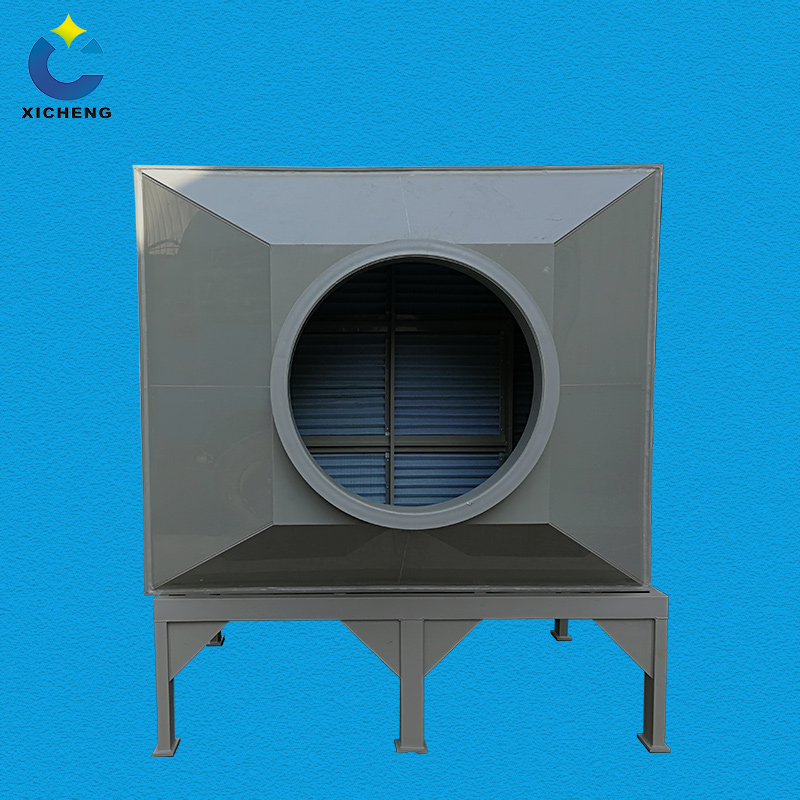

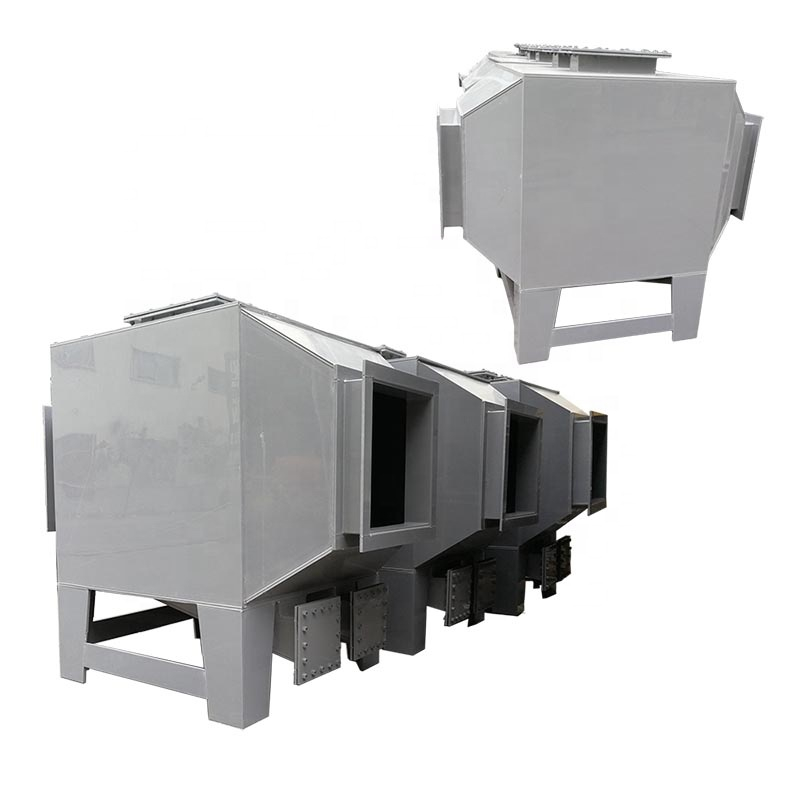

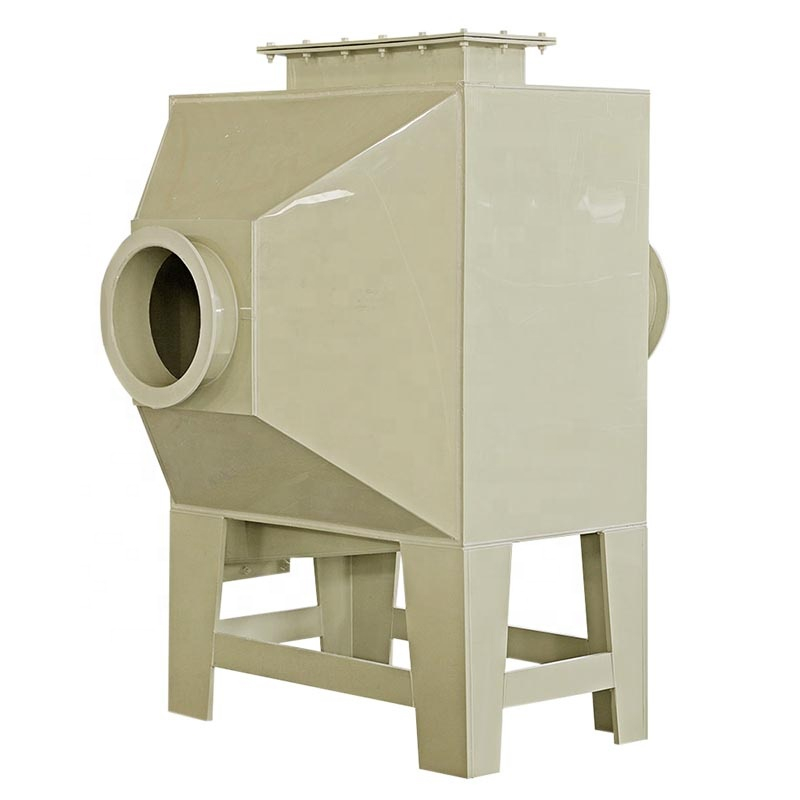

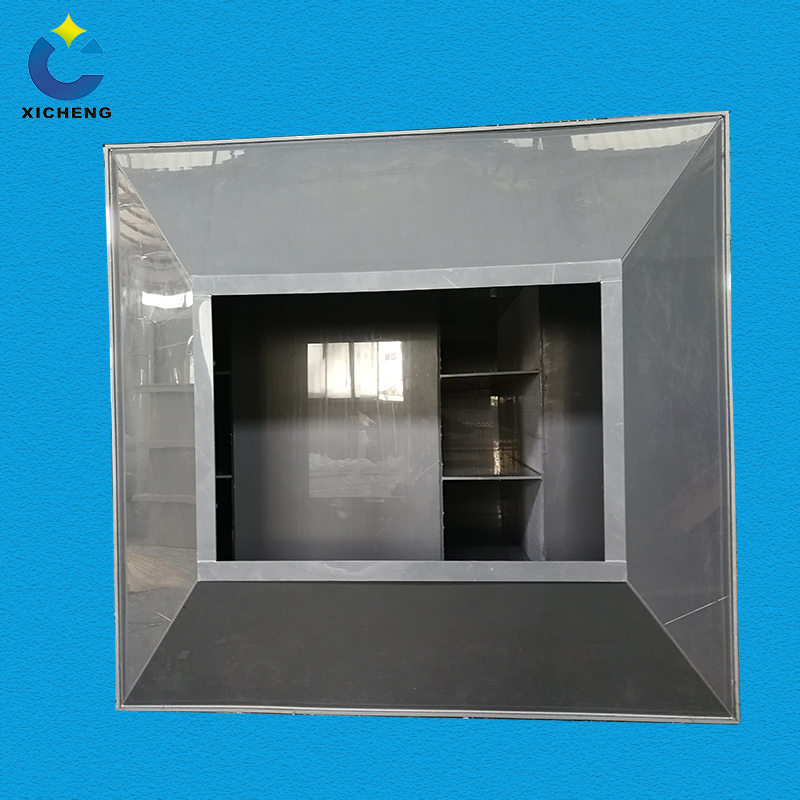

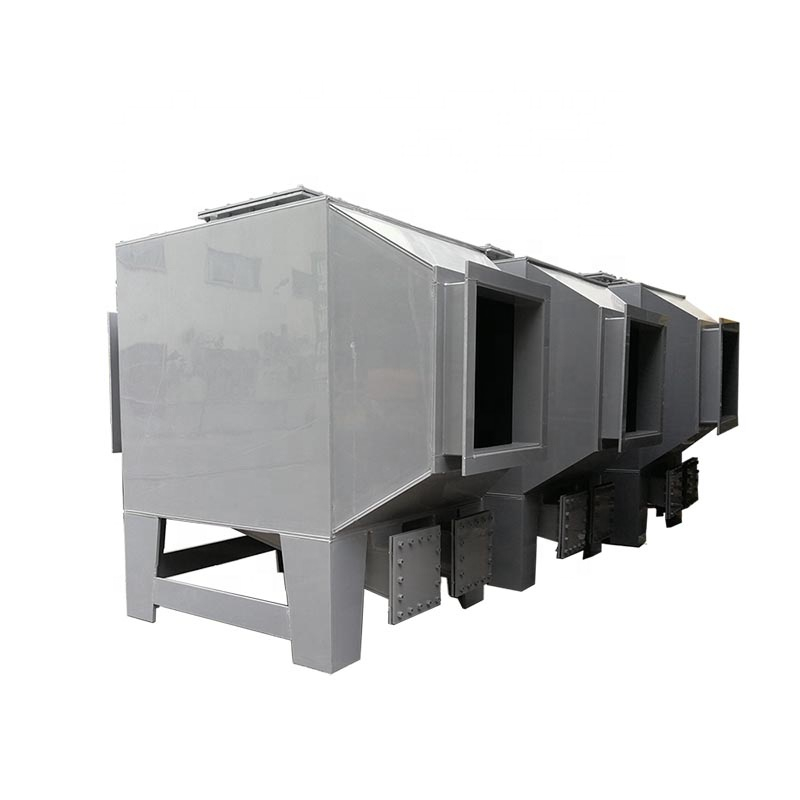

Product Pictures

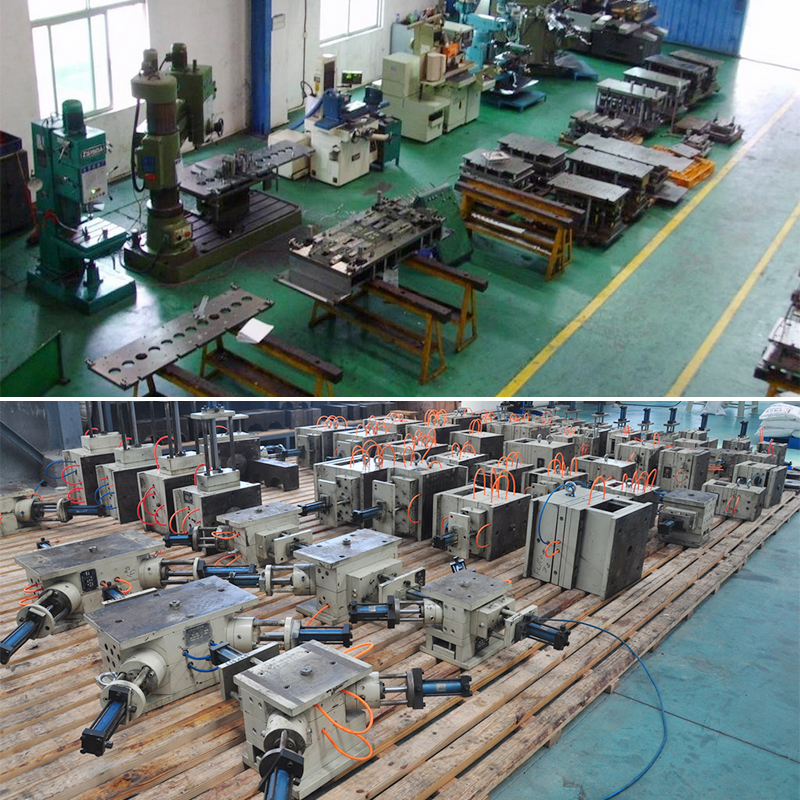

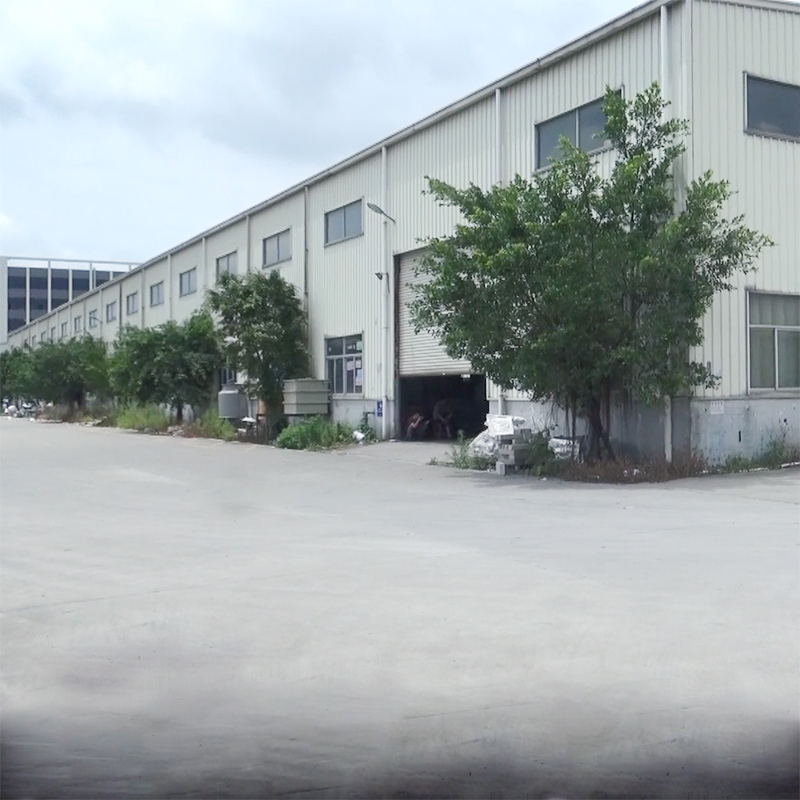

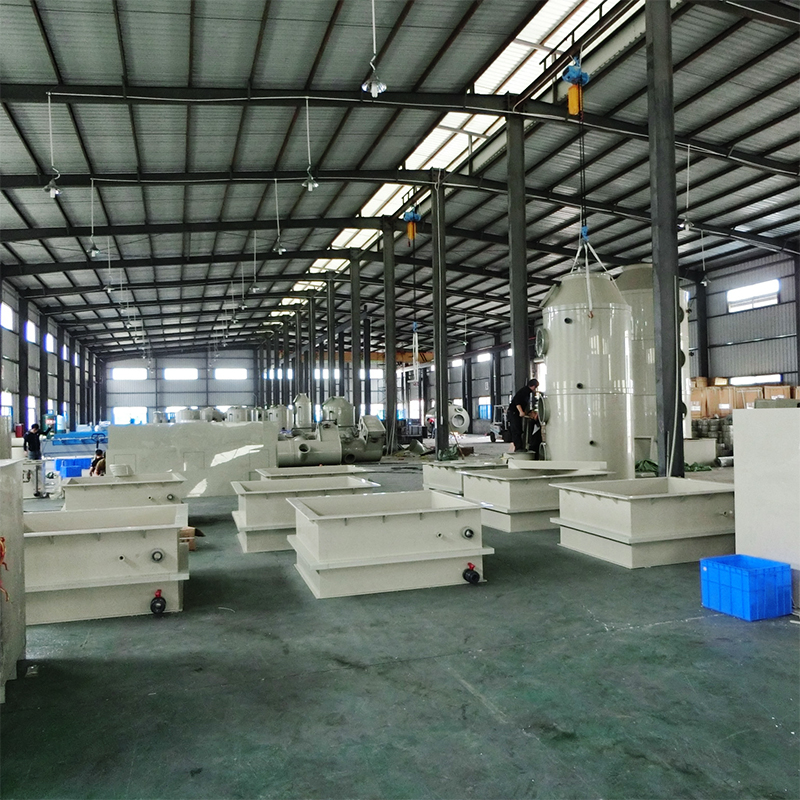

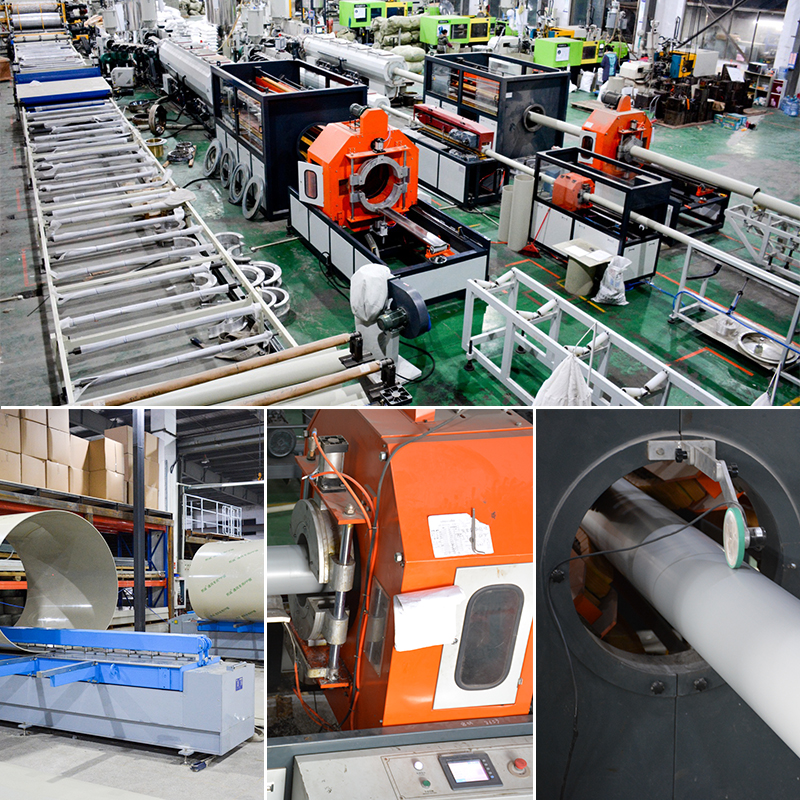

Factory Shows

Exhibition Show

Our Services

PERSONALIZED CUSTOMIZATION
The products can be customized according to customers' requirments and drawings.

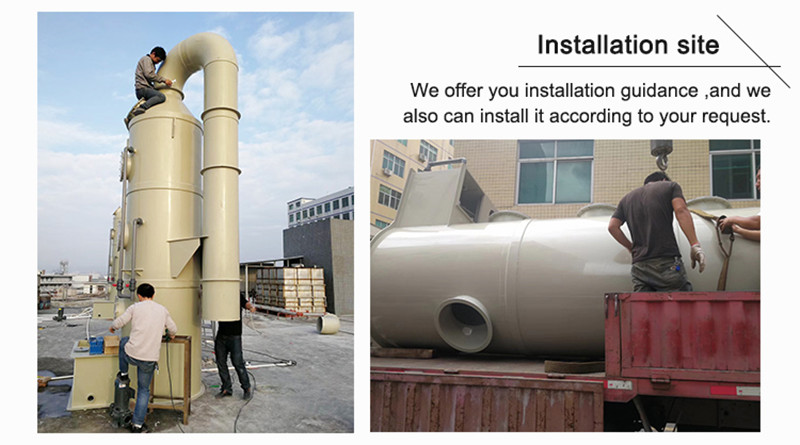

INSTALLATION
Our company can send professional engineers to guide device installation and provide a professional plan.

AFTER SERVICE
Our equipment will have a one-year life of quality assurance, repair and replacement are guranteed.

FAQ

1. Q. Are you a trading company or manufacture?

A:   We are manufacture; we have our professional manufacturing teams and technicians


2. Q. How long is the warranty of your equipment?

A:  One year warranty, in the meanwhile, quality inspection before delivery; during the warranty period, we can replace the damaged consumables for free, after the warranty period, we have a good price for consumables for our customers.


3. Q: Do you have technical support?

A: Our Company is responsible for installation and debugging of equipment, meanwhile, responsible for the technology and operation training for user operator.

4.   Q:  Is overseas after-sales service available?

A: Yes, and after installation we will teach you basic operation and maintenance method.

5.   Q:  May I customize my own equipment?

A: Yes, please inform us your needs in details and we will design the facility per your data.
