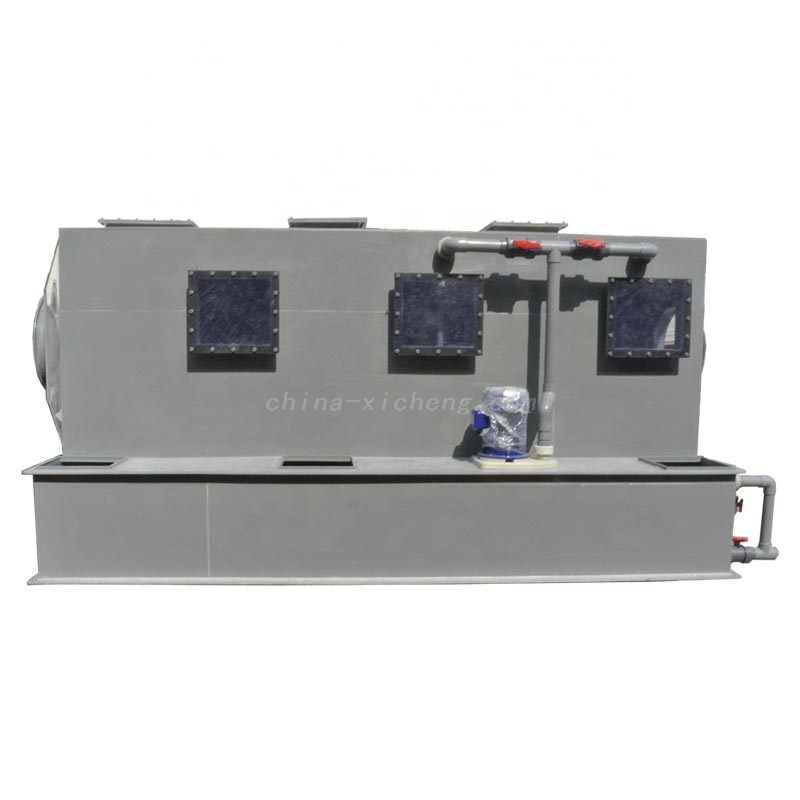

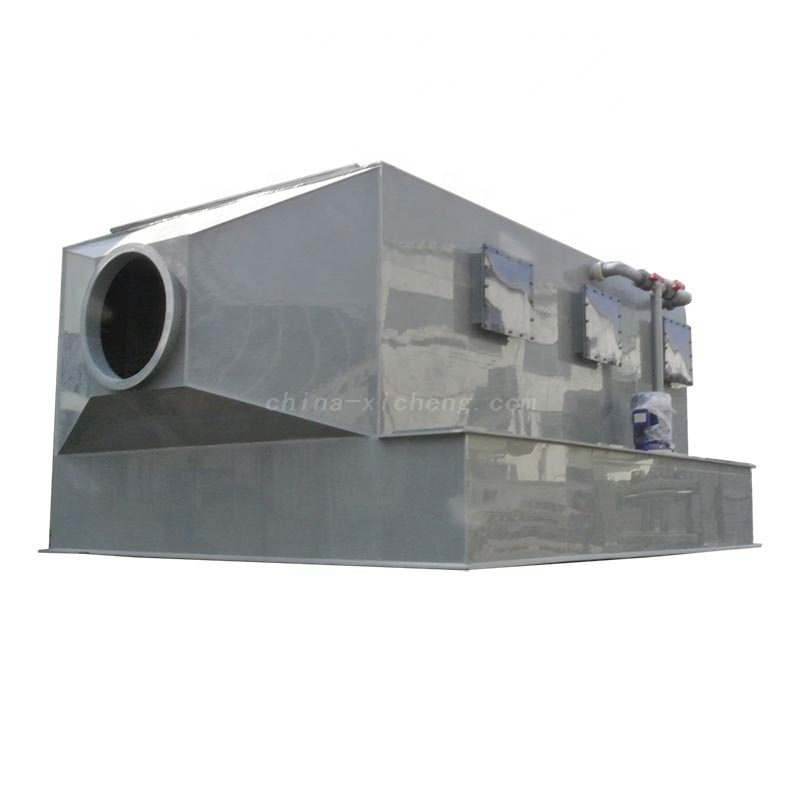

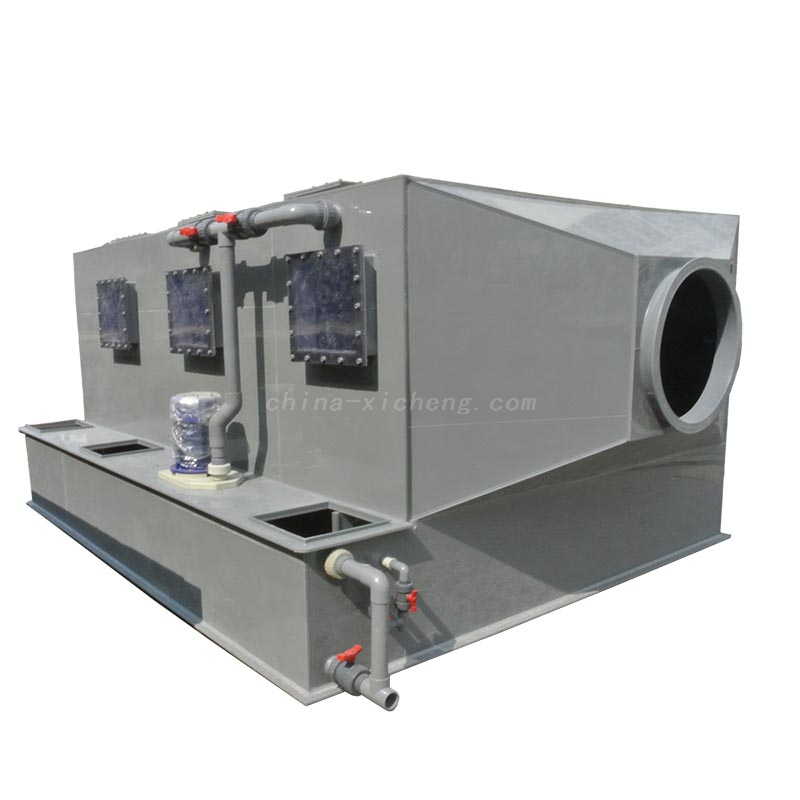

Horizontal-ammonia scrubber is an industrial ammonia purification system. Also known as horizontal cross flow scrubber.

1. Equipment introduction:

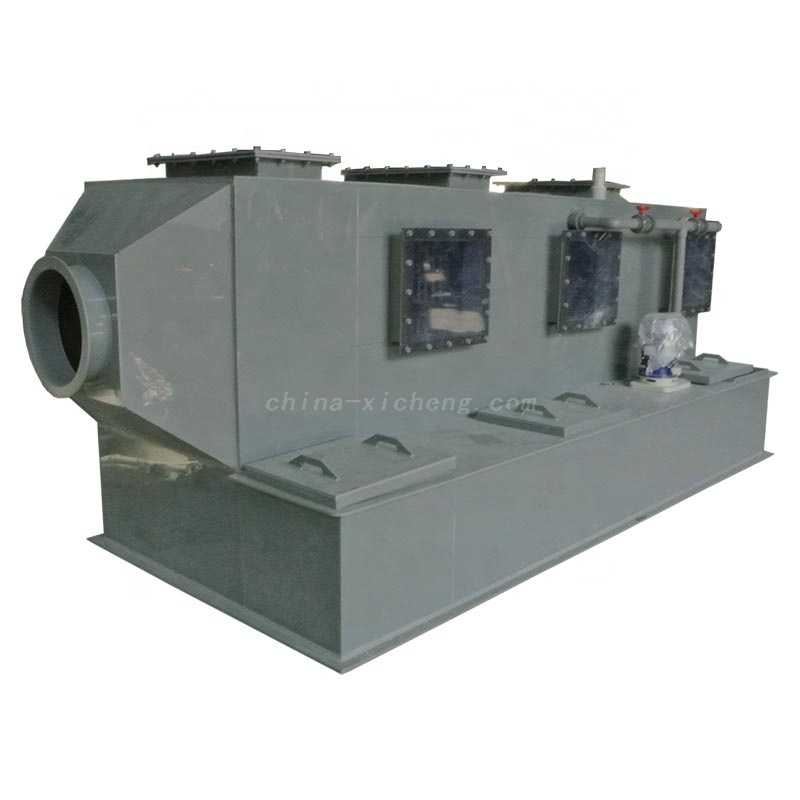

Horizontal-ammonia scrubber, which occupies a small space, is suitable for indoor spaces or factories with restricted height. Horizontal cross-flow design, low resistance, high purification efficiency.

2. Structure and working principle

Structure

Ammonia scrubber structure: the gas and liquid phases in the packing layer flow in countercurrent, and the gas and liquid phases are in countercurrent contact in the tower body, using the certain solubility of harmful ammonia in the absorbent, and the soluble part is continuously integrated into the absorption liquid to achieve degradation The purpose of the content of harmful components in ammonia.

Principle

The whole tower structure is mainly composed of three parts, namely liquid storage, air inlet, spraying, dehydration and air outlet. The acid-resistant water pump is installed on the outside of the spray tower and connected with the inlet and outlet pipes of the spray tower. Plastic ball Installed in the spray separately. The acid mist purification tower is made of PP board material, which has the characteristics of compact structure, corrosion resistance, high temperature resistance, and smooth appearance.

3. Features of this equipment:

1. It can handle hydrogen chloride gas (HCL), hydrogen fluoride gas (HF), ammonia (NH3), sulfuric acid mist (H2SO4), chromic acid mist (CrO3), alkali vapor (NaOH), hydrogen gas (H2S) and other gases

2. It is not restricted by height and occupies a small space.

3. Crossover design, high purification efficiency.
