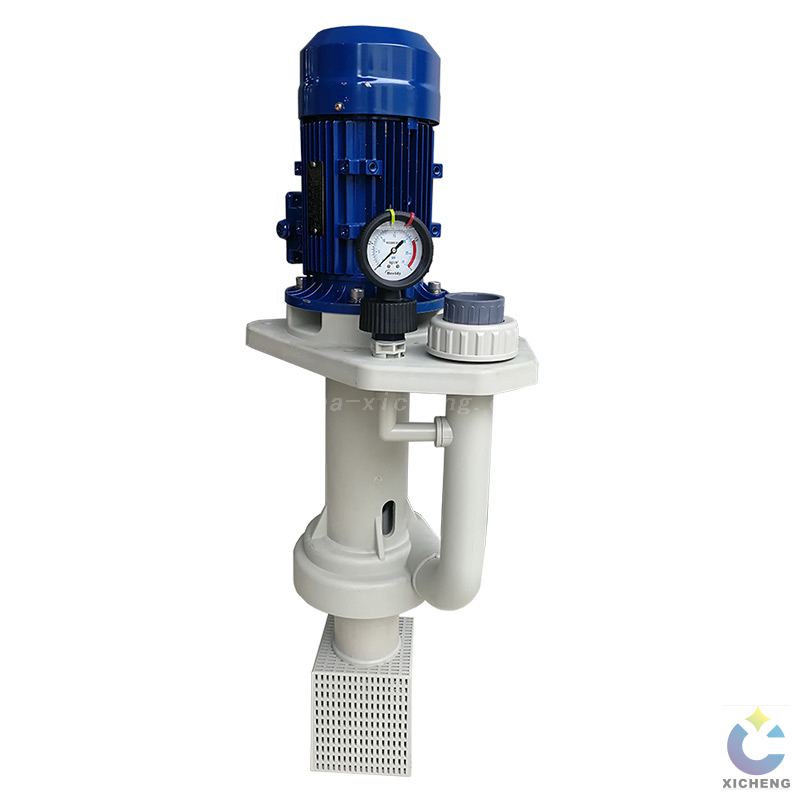

High Pressure Pumps

Product upgrading, new impeller anti loose, double-layer anti-corrosion; along the water volute, reduce resistance to improve efficiency, not easy to return; large arc guide pipe, water speed, high efficiency and energy saving; standard pressure gauge to ensure safe production, easy to operate; filter screen, filter area is more than 6 times of the water area, high density, small resistance, good filtering effect.
Quantity:
  • XC-04
  • XICHENG
  • 8421399004

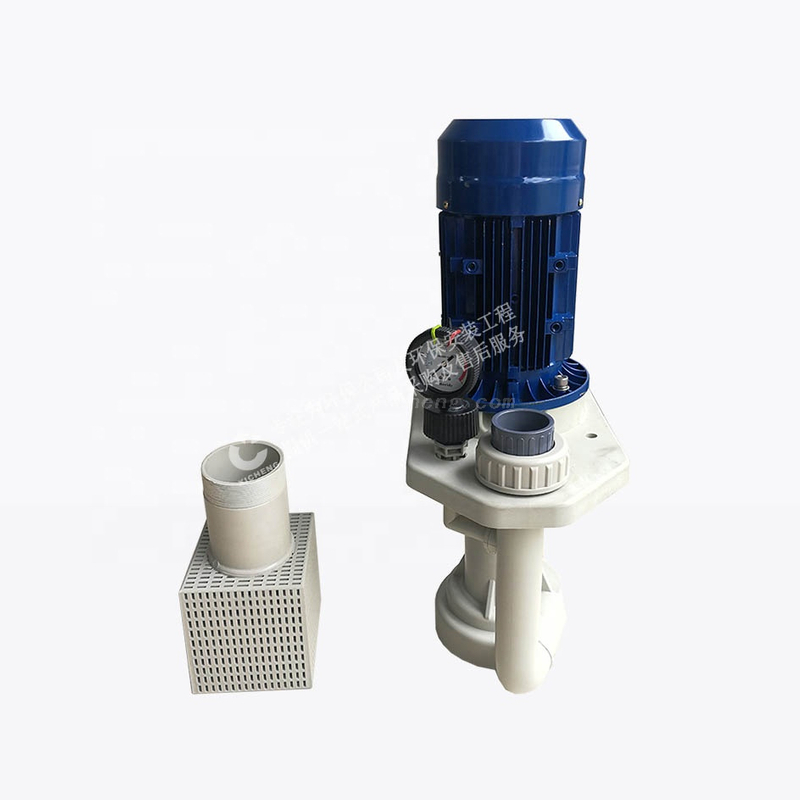

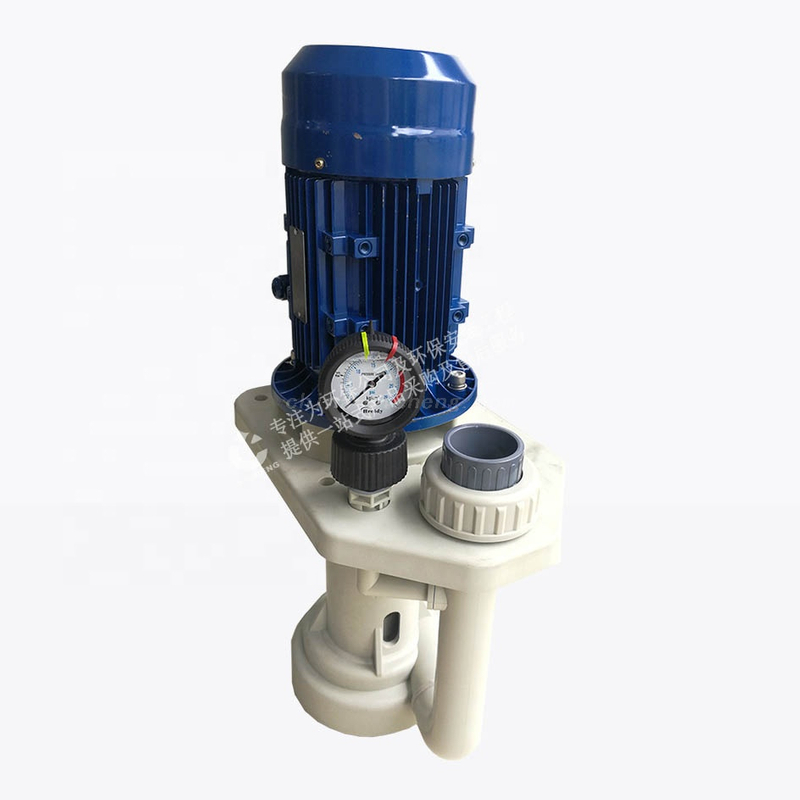

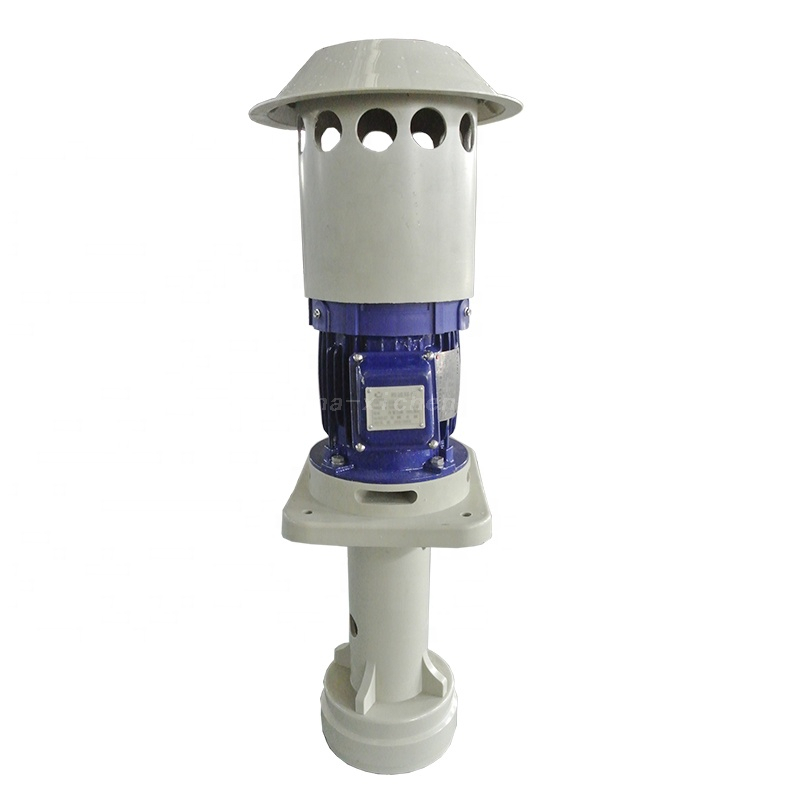

PP pump is anticorrosive material produced using PP. The corrosion resistance and aging resistance is very good. In the waste gas treatment equipment and purification equipment. Such as swirl tower waste gas treatment equipment widely used. We can customize different models used in different areas.

Product characteristics

1. dry liquid sealing (1~10HP): to ensure that the motor and bearings are chemical gas erosion, and prolong the service life of the motor and pump
2. pump can use anhydrous short time idle
3. For high corrosion liquid and environment, it is recommended to choose another titanium screw, motor optional buy epoxy coating treatment, to enhance corrosion resistance and service life
4., Its innovative usage of PP material for motor connection base, compared to the traditional motor carrier, can greatly reduce acid gas corrosion, and body weight.


Water pump parameter

NO. Flow Pumping height Capacity
1 15m³/h 8m 0.75KW
2 18m³/h 8m 1.1KW
3 21m³/h 9m 1.5KW
4 32m³/h 9m 2.2KW
5 45m³/h 10m 3.0KW
6 60m³/h 10m 4.0KW
7 75m³/h 12m 5.5KW
8 90m³/h 12m 7.5KW

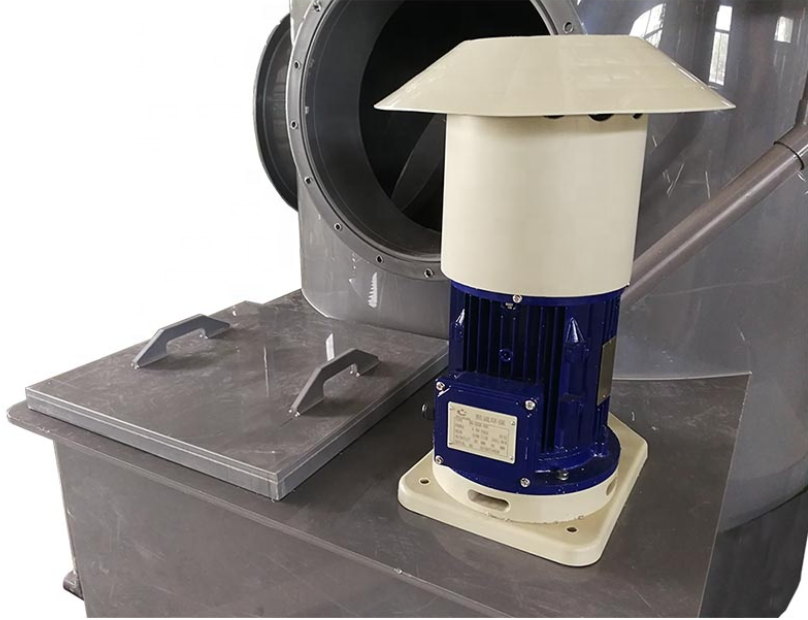

Water tank pump

Specification

Item
Value
Brand Name
XICHENG
Application
Washing and Cleaning, Water Distribution, Water Treatment Solutions
Power Source
Electric
Pressure
0.5-0.6KG/CM^3
Outlet Size
20-90
Voltage
380v
Brand
XICHENG
Delivery Time
15Days
Payment
T/T
