XC-02
Xicheng
8421392990
1. Product introduction

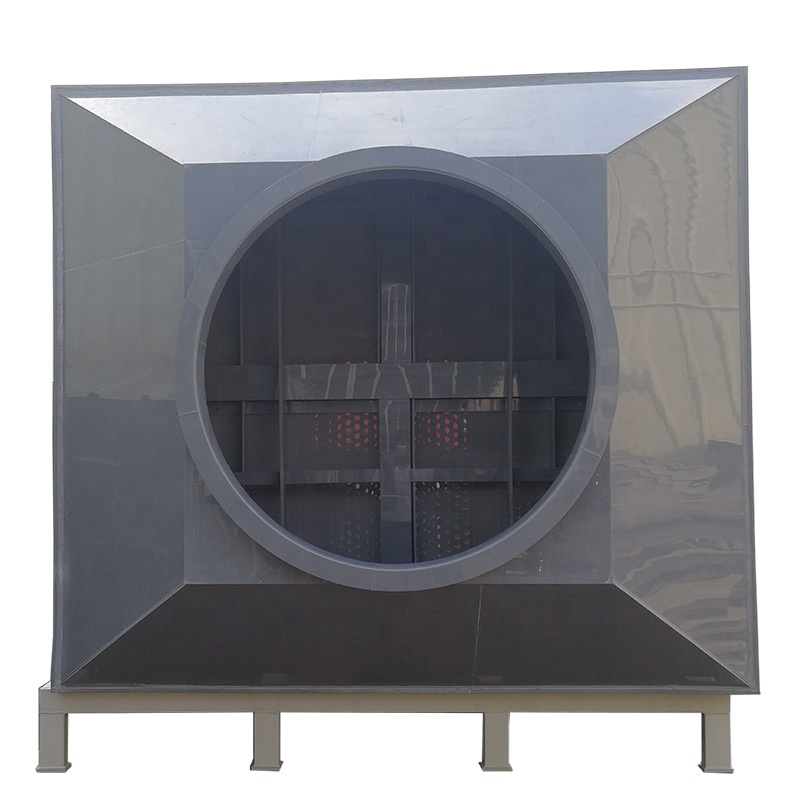

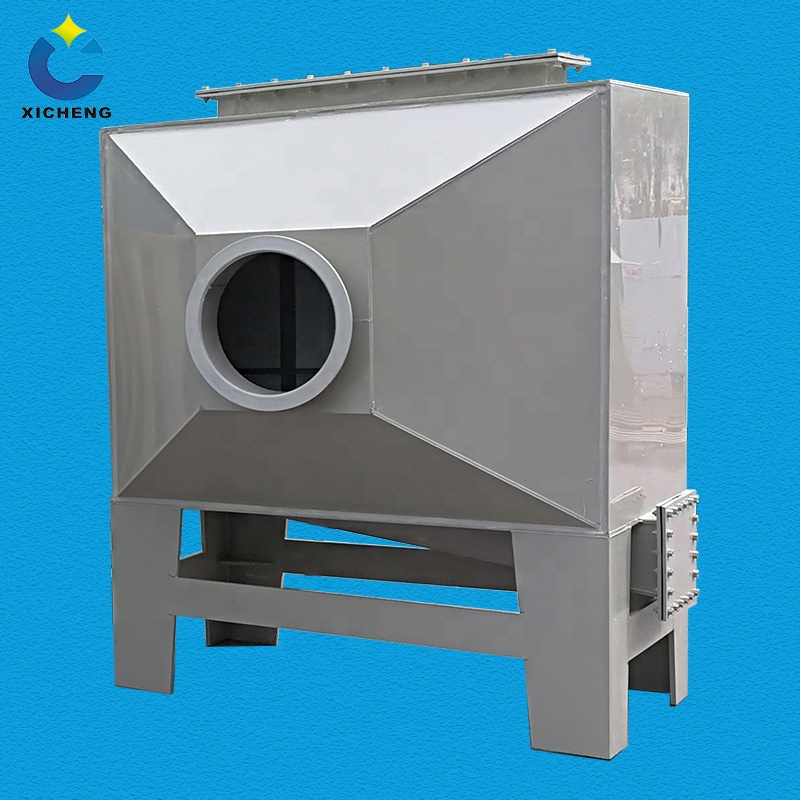

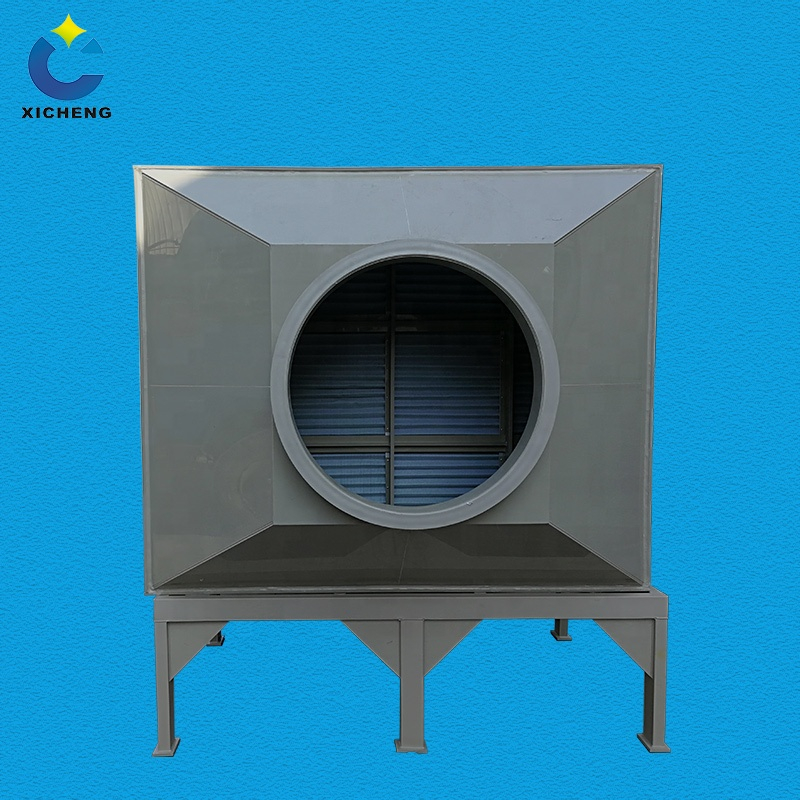

Activated carbon adsorption device is mainly composed of activated carbon,supporting layer.It has developed voids, large specific surface area and high adsorption capacity.Dust gas powered by fan, positive pressure or negative pressure get into the tower body, due to the unbalance and unsaturated molecular attraction or chemistry bond on the surface of the activated carbon,when contact with gas the solid surface can attract a gas molecule to make them strong and keep them on the solid surface.Then the pollutants are absorbed and get into filter system.
2.Performance advantages
High adsorption efficiency and large adsorption capacity.
Convenient maintenance.
Simple and safe operation.
Activated carbon sources are cheap.
3.Table parameters
Activated carbon tower common specification size | ||||
Air volume | Specification | With activated carbon | Thickness | Through area |
1500 | 1400*750*750 | 125kg | 8mm | 0.56 (M2) |
3000 | 1500*1000*1000 | 200kg | 8mm | 1(M2) |
4000 | 1700*1500*1000 | 275kg | 8mm | 1.5 (M2) |
5000 | 1700*1500*1125 | 300kg | 10mm | 1.69 (M2) |
6000 | 1950*1500*1125 | 350kg | 10mm | 2.14 (M2) |
8000 | 1950*1500*1500 | 475kg | 10mm | 2.85 (M2) |
10000 | 2500*1500*1500 | 600kg | 10mm | 3.6 (M2) |
12000 | 2700*1500*1500 | 700kg | 10mm | 4.2 (M2) |
15000 | 2700*2000*1500 | 850kg | 10mm | 5.18 (M2) |
18000 | 3000*2000*1500 | 1000kg | 10mm | 6.3 (M2) |
20000 | 3200*2000*1500 | 1100kg | 10mm | 6.98(M2) |
Activated carbon commonly used specifications are: cylindrical, diameter 4mm.
4.Company services
Activated carbon commonly used specifications are: cylindrical, diameter 4mm.
AFTER SERVICE
Our equipment will have a one-year life of quality assurance, repair and replacement are guranteed.
5.Company introduction
Shenzhen Xicheng Environmental Teachnology Co., LTD. is located in Baoan District, Shenzhen. With the aims of "Quality First, Mutual Benefit, Cooperation and Win-Win", our company is directed by market demand and has independently developed new varieties to satisfy different industries' needs for the differences and diversification of plastics.
7.Do you provide OEM service?
--- Yes! We provide OEM & ODM service.
8.What's the lead time for your goods?
--- Normally 25 workdays. For some special parts, the delivery date will be discussed in detail.
1. Product introduction
Activated carbon adsorption device is mainly composed of activated carbon,supporting layer.It has developed voids, large specific surface area and high adsorption capacity.Dust gas powered by fan, positive pressure or negative pressure get into the tower body, due to the unbalance and unsaturated molecular attraction or chemistry bond on the surface of the activated carbon,when contact with gas the solid surface can attract a gas molecule to make them strong and keep them on the solid surface.Then the pollutants are absorbed and get into filter system.
2.Performance advantages
High adsorption efficiency and large adsorption capacity.
Convenient maintenance.
Simple and safe operation.
Activated carbon sources are cheap.
3.Table parameters
Activated carbon tower common specification size | ||||
Air volume | Specification | With activated carbon | Thickness | Through area |
1500 | 1400*750*750 | 125kg | 8mm | 0.56 (M2) |
3000 | 1500*1000*1000 | 200kg | 8mm | 1(M2) |
4000 | 1700*1500*1000 | 275kg | 8mm | 1.5 (M2) |
5000 | 1700*1500*1125 | 300kg | 10mm | 1.69 (M2) |
6000 | 1950*1500*1125 | 350kg | 10mm | 2.14 (M2) |
8000 | 1950*1500*1500 | 475kg | 10mm | 2.85 (M2) |
10000 | 2500*1500*1500 | 600kg | 10mm | 3.6 (M2) |
12000 | 2700*1500*1500 | 700kg | 10mm | 4.2 (M2) |
15000 | 2700*2000*1500 | 850kg | 10mm | 5.18 (M2) |
18000 | 3000*2000*1500 | 1000kg | 10mm | 6.3 (M2) |
20000 | 3200*2000*1500 | 1100kg | 10mm | 6.98(M2) |
Activated carbon commonly used specifications are: cylindrical, diameter 4mm.
4.Company services
Activated carbon commonly used specifications are: cylindrical, diameter 4mm.
AFTER SERVICE
Our equipment will have a one-year life of quality assurance, repair and replacement are guranteed.
5.Company introduction
Shenzhen Xicheng Environmental Teachnology Co., LTD. is located in Baoan District, Shenzhen. With the aims of "Quality First, Mutual Benefit, Cooperation and Win-Win", our company is directed by market demand and has independently developed new varieties to satisfy different industries' needs for the differences and diversification of plastics.
7.Do you provide OEM service?
--- Yes! We provide OEM & ODM service.
8.What's the lead time for your goods?
--- Normally 25 workdays. For some special parts, the delivery date will be discussed in detail.
