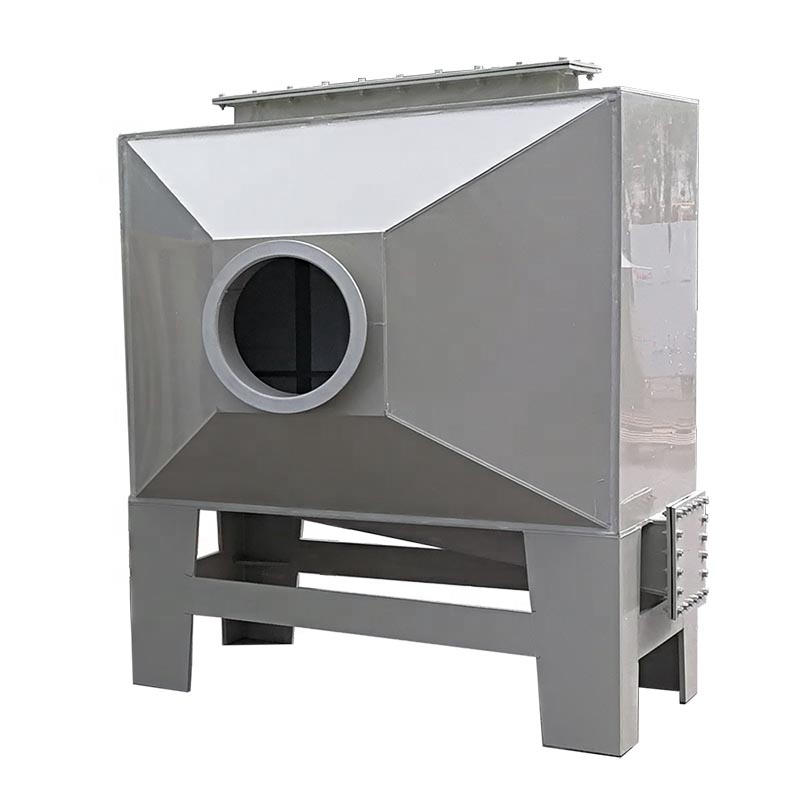

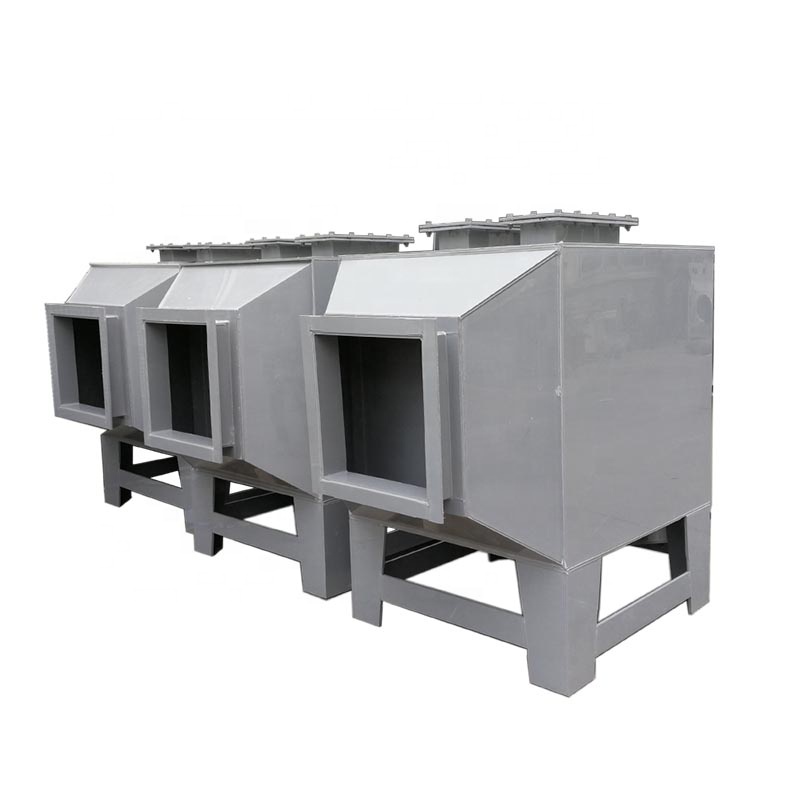

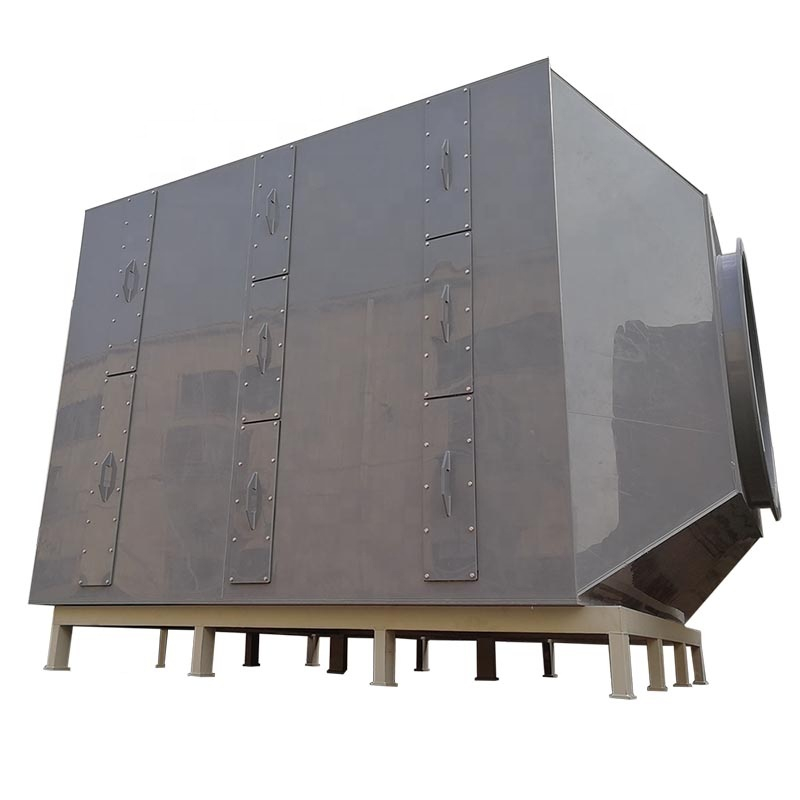

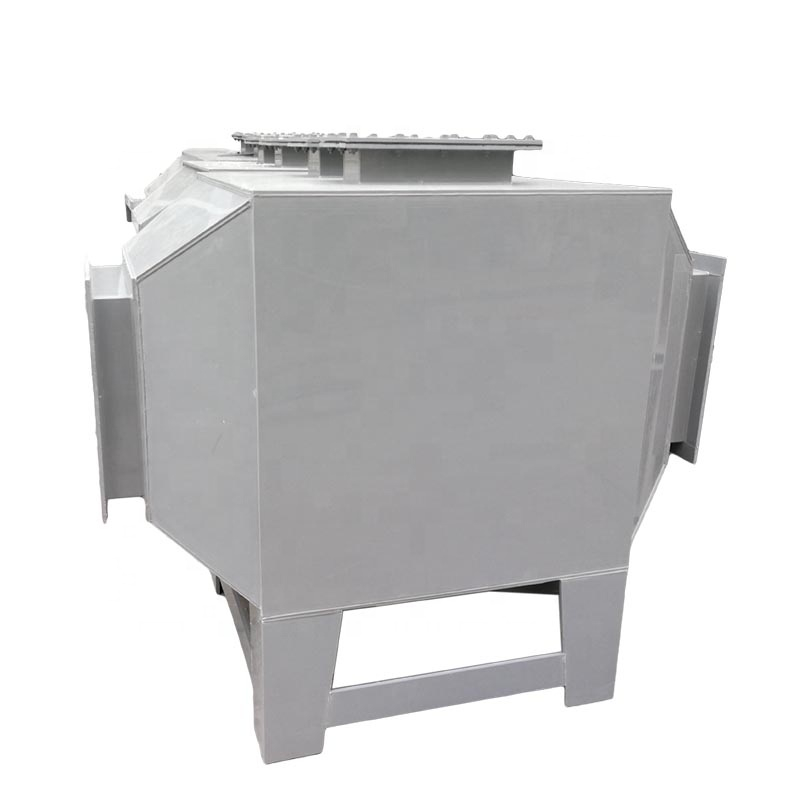

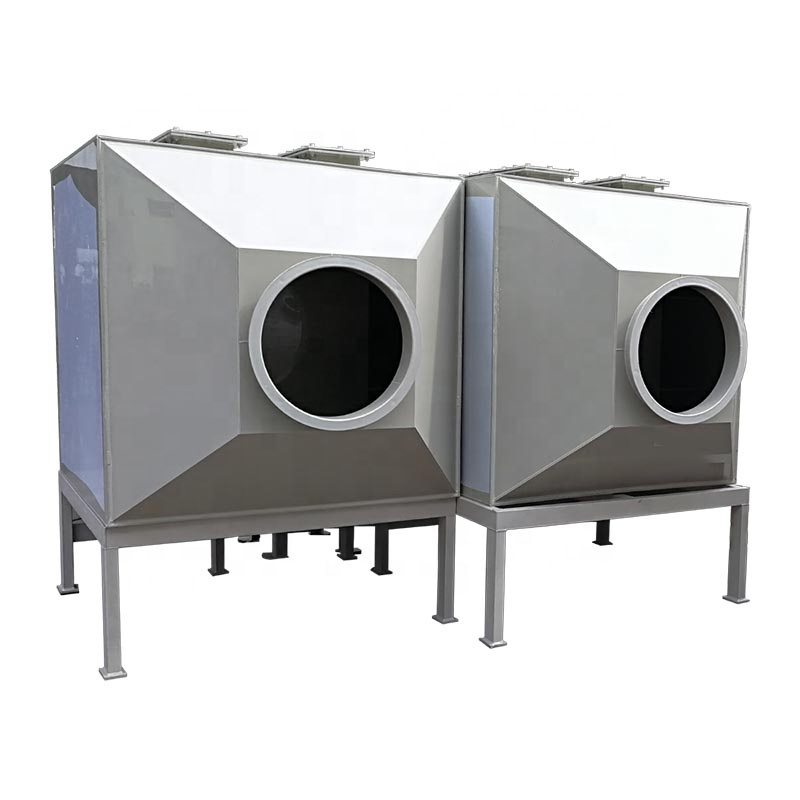

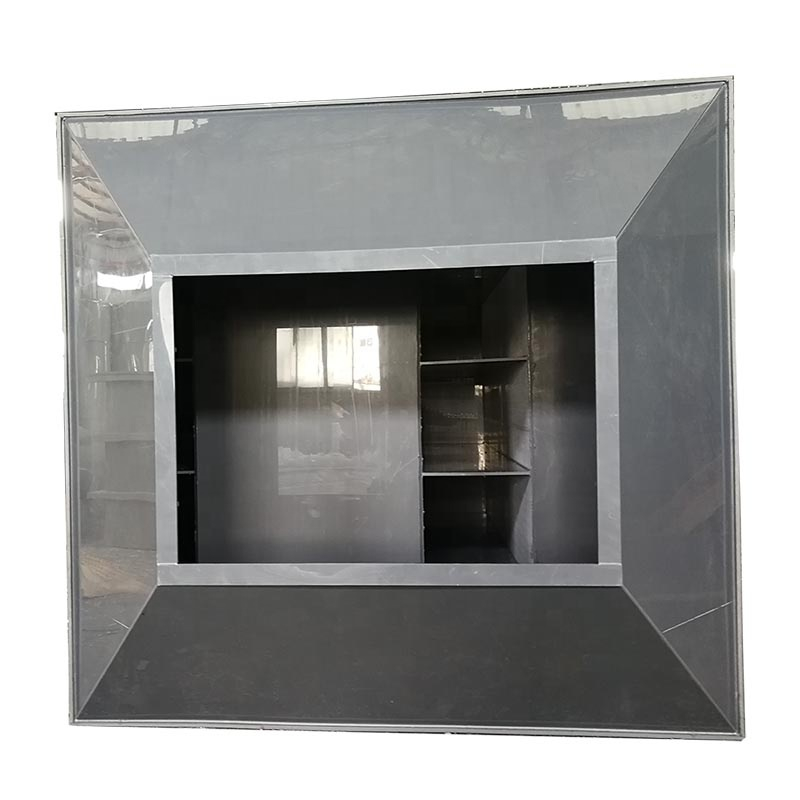

Activated Carbon Adsorption Odour Control System

Activated carbon adsorption device is mainly composed of activated carbon,supporting layer.It has developed voids, large specific surface area and high adsorption capacity.Dust gas powered by fan, positive pressure or negative pressure get into the tower body, due to the unbalance and unsaturated molecular attraction or chemistry bond on the surface of the activated carbon,when contact with gas the solid surface can attract a gas molecule to make them strong and keep them on the solid surface.Then the pollutants are absorbed and get into filter system.
Color:
Size:
Material:
Availability:
Quantity:
  • XC-02

  • XICHENG

  • 8421392990

1. Product introduction

Activated carbon adsorption device is mainly composed of activated carbon,supporting layer.It has developed voids, large specific surface area and high adsorption capacity.Dust gas powered by fan, positive pressure or negative pressure get into the tower body, due to the unbalance and unsaturated molecular attraction or chemistry bond on the surface of the activated carbon,when  contact with gas the solid surface can attract a gas molecule to make them strong and keep them on the solid surface.Then the  pollutants are absorbed and get into filter system.
2.Performance advantages
High adsorption efficiency and large adsorption capacity.
Convenient maintenance.
Simple and safe operation.
Activated carbon sources are cheap.

3.Table parameters

Activated carbon tower common specification size
  Air volume Specification With activated     carbon Thickness Through area
1500 1400*750*750 125kg 8mm 0.56 (M2)
3000 1500*1000*1000 200kg 8mm 1(M2)
4000 1700*1500*1000 275kg 8mm 1.5 (M2)
5000 1700*1500*1125 300kg 10mm 1.69 (M2)
6000 1950*1500*1125 350kg 10mm 2.14 (M2)
8000 1950*1500*1500 475kg 10mm 2.85 (M2)
10000 2500*1500*1500 600kg 10mm 3.6 (M2)
12000 2700*1500*1500 700kg 10mm 4.2 (M2)
15000 2700*2000*1500 850kg 10mm 5.18 (M2)
18000 3000*2000*1500 1000kg 10mm 6.3 (M2)
20000 3200*2000*1500 1100kg 10mm 6.98(M2)

Activated carbon commonly used specifications are: cylindrical, diameter 4mm.

4.Company servicesActivated carbon commonly used specifications are: cylindrical, diameter 4mm.





AFTER SERVICE
Our equipment will have a one-year life of quality assurance, repair and replacement are guranteed.

5.Company introduction
Shenzhen Xicheng Environmental Teachnology Co., LTD. is located in Baoan District, Shenzhen. With the aims of "Quality First, Mutual Benefit, Cooperation and Win-Win", our company is directed by market demand and has independently developed new varieties to satisfy different industries' needs for the differences and diversification of plastics.



Certifications

Trade Shows

FAQ


1. Are you a factory?
--- Yes, we are a professional exhaust gas treatment manufacturer for more than 15 years.
2.How do you check the goods?
--- We inspect all the materials when they arrive, and have sot inspection during production process. All goods will be tested and double inspected before delivery, providing 100% guarantee for clients.
3. How to select the suitable models?
---The parameters above is just for your reference. We need you to provide us the air flow, solvent composition, working hours,etc for our team to design the suitable unit for you.
4.How and when can I get the quotation?
--- Send us the inquiry or leave us message. We will get back to you within 5 minutes during the working time. All messages will be replied whenever they comes.
5.What's your payment terms?
--- Usually we accept 100%T/T at present. 50% initial payment,down payment before shipment. Other payment terms can be discussed when order confirmed.
6.Where is your factory Located? How can I visit there?
--- We located in Shengtaian industrial park B,Loucun,Baoan district,Shenzhen, Guangdong Province

7.Do you provide OEM service?
--- Yes! We provide OEM & ODM service.
8.What's the lead time for your goods?
--- Normally 25 workdays. For some special parts, the delivery date will be discussed in detail.
